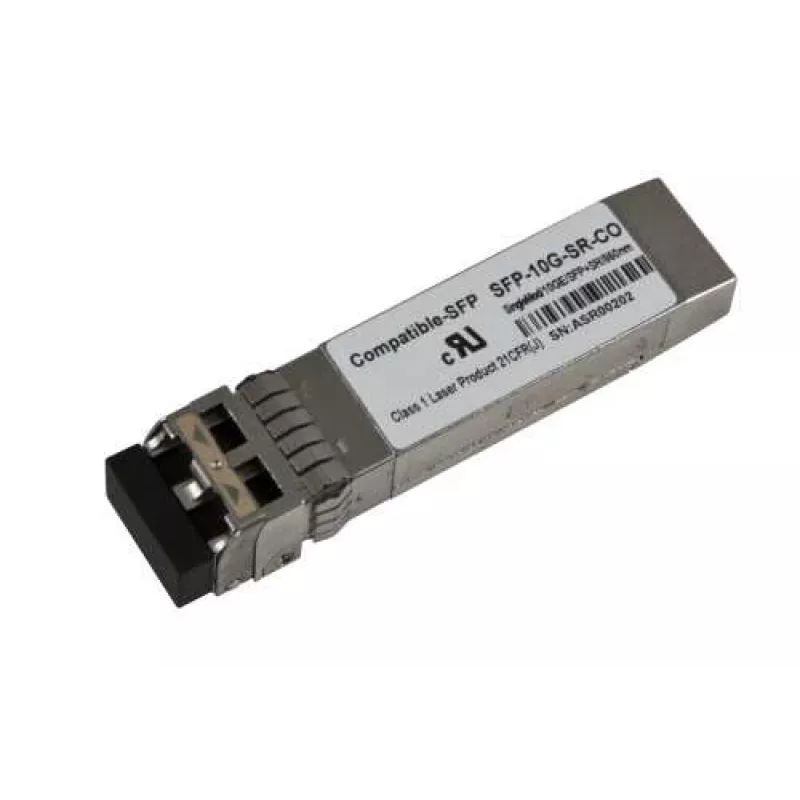

ALLNET SFP+ 10G SR LC transceiver, Cisco-compatibel, 850nm, 300m MMF SFP-10G-SR-C

This SFP+ transceiver delivers 10 Gigabit Ethernet connectivity over multimode fiber with an LC duplex connector, operating at an 850 nm wavelength. It supports link lengths up to 300 meters on OM3 fiber and 400 meters on OM4, making it a reliable choice for high-speed data center and enterprise network links.

Advantages

The module is hot-swappable, allowing network maintenance without downtime. It includes Digital Diagnostics Monitoring (DDM/DOM) for real-time monitoring of key parameters such as temperature, optical power, and voltage. With power consumption under 1 watt, it contributes to energy-efficient operations.

Suitable for

• 10 Gigabit Ethernet connections in data centers and server rooms
• Short-range multimode fiber links up to 300 meters
• Cisco network environments requiring SFP-10G-SR compatible optics
• High-density switch and router uplinks

Key specifications

• Form Factor: SFP+
• Data Rate: 10 Gbps
• Optical Standard: 10GBASE-SR
• Wavelength: 850 nm
• Connector: LC Duplex
• Fiber Type: Multimode (OM3/OM4)
• Max Distance: 300 m (OM3), 400 m (OM4)
• DDM/DOM: Yes
• Compatibility: Cisco SFP-10G-SR
• Power Consumption: < 1.0 W
• Operating Temperature: 0°C to 70°C
• Hot-Swappable: Yes

Recommendations

For optimal performance, pair this transceiver with OM3 or OM4 multimode fiber patch cables with LC connectors. Ensure your switch or router supports SFP+ ports and is configured for 10G speed.
