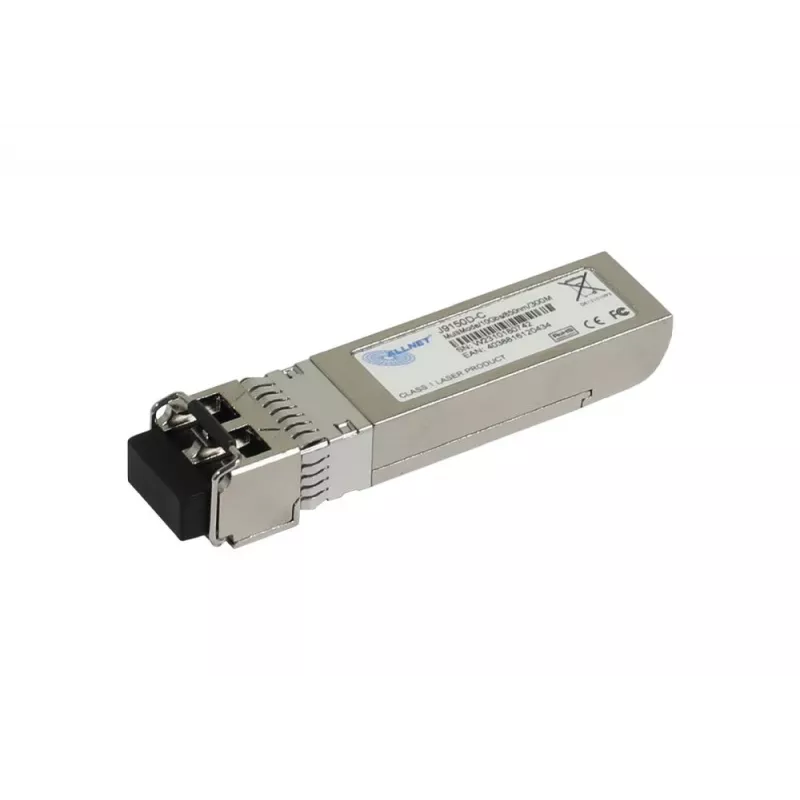

ALLNET SFP+ 10GBASE-SR transceiver, LC duplex, multimode, 850nm, 300m, HP J9150D compatibel

Data center technicians and network engineers often need a reliable 10 Gigabit Ethernet link over multimode fiber for short-reach connections between switches, servers, and storage systems. The ALLNET J9150D-C SFP+ transceiver provides that connectivity in a compact, hot-swappable module compatible with HP/Aruba equipment using the J9150D code.

Key specifications

• Form factor: SFP+
• Data rate: 10 Gigabit Ethernet
• Transceiver type: 10GBASE-SR
• Connector: LC duplex
• Fiber type: Multimode (MMF)
• Wavelength: 850 nm
• Maximum distance: 300 m on OM3, 400 m on OM4
• Digital diagnostics monitoring (DDM/DOM): Yes
• Hot-swappable: Yes
• Power consumption: < 1.0 W
• Operating temperature: 0°C to 70°C
• Storage temperature: -40°C to 85°C
• Laser type: VCSEL
• Compliance: MSA, RoHS

Why choose it

This transceiver is a cost-effective alternative to original HP/Aruba modules, offering identical performance and full compatibility. It supports digital diagnostics for real-time monitoring of temperature, voltage, TX/RX power, helping to maintain network health.

Ideal use cases

• Data center interconnects within racks or adjacent rows
• Enterprise campus backbone links up to 300 meters
• Storage area networks (SAN) requiring 10GbE connectivity
• Upgrading existing multimode fiber infrastructure to 10G

Good to know

The module is MSA compliant and RoHS compliant, ensuring interoperability with a wide range of networking equipment. It is hot-swappable, allowing installation without powering down the switch.
