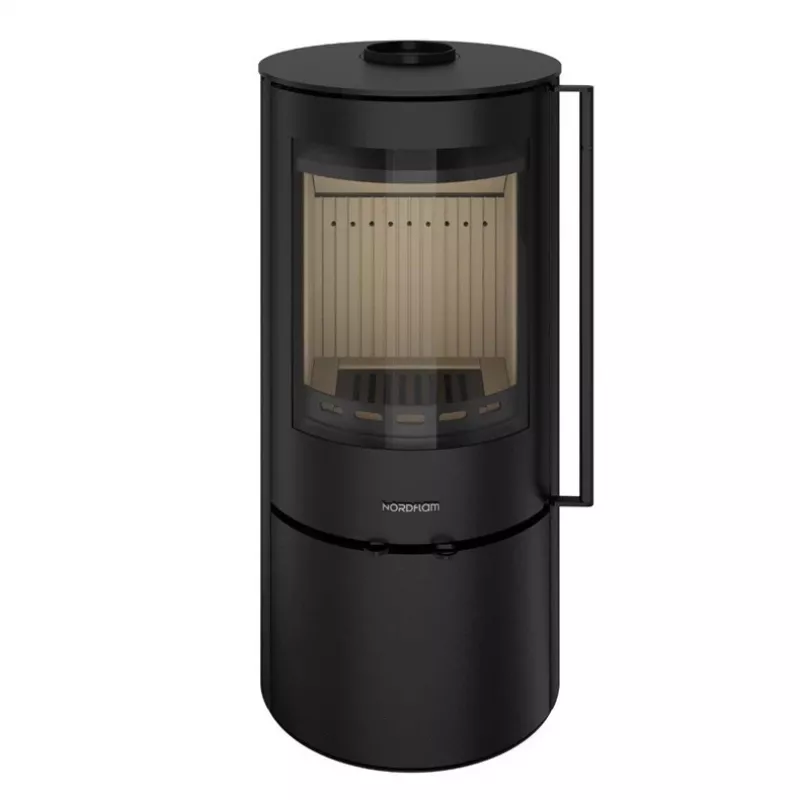

ALTA EKO 5 kW haardinzet voor hout

The ALTA EKO 5 kW wood burning fireplace insert combines modern efficiency with classic design, providing an eco-friendly heating solution for your home. With a nominal power output of 5 kW, it is ideal for heating areas up to 60 m², ensuring a cozy atmosphere during cold months.

Advantages

High energy efficiency class A+ and 80% efficiency reduce fuel consumption and emissions. Triple combustion air system (primary, secondary, tertiary) ensures complete burning of wood logs and briquettes, minimizing environmental impact. The heat-resistant ceramic glass and cast iron grate guarantee durability and long service life.

Suitable for

• Heating living rooms, bedrooms, or small open-plan spaces up to 60 m²
• Homes with external air intake connection (100 mm diameter) for optimal combustion
• Users seeking an Ecodesign and BlmSchV 2 compliant fireplace insert

Key specifications

• Nominal Power Output: 5 kW
• Energy Efficiency Class: A+
• Efficiency: 80%
• Fuel Type: Seasoned wood logs, wood briquettes
• Material: Boiler steel body, Acumotte lining
• Flue Outlet Diameter: 150 mm (top)
• CO Emission (13% O2): 0.09%
• Exhaust Gas Temperature: 265 °C
• Max Log Length: 25 cm
• Heating Area: Up to 60 m²
• Compliance: Ecodesign, BlmSchV 2, PN-EN 13240
• Air System: Triple combustion air (primary, secondary, tertiary)
• External Air Intake: Yes (100 mm diameter connection)
• Glass Type: Heat-resistant ceramic
• Ash Pan: Removable
• Grate Material: Cast iron
• Combustion Chamber Lining: Acumotte
• Minimum Required Draft: 10-12 Pa
• Door Opening: Side

Recommendations

For optimal performance, use only seasoned wood logs with moisture content below 20%. Ensure proper chimney draft and regular cleaning of the flue and ash pan. Installation should be carried out by a certified professional in accordance with local regulations.
