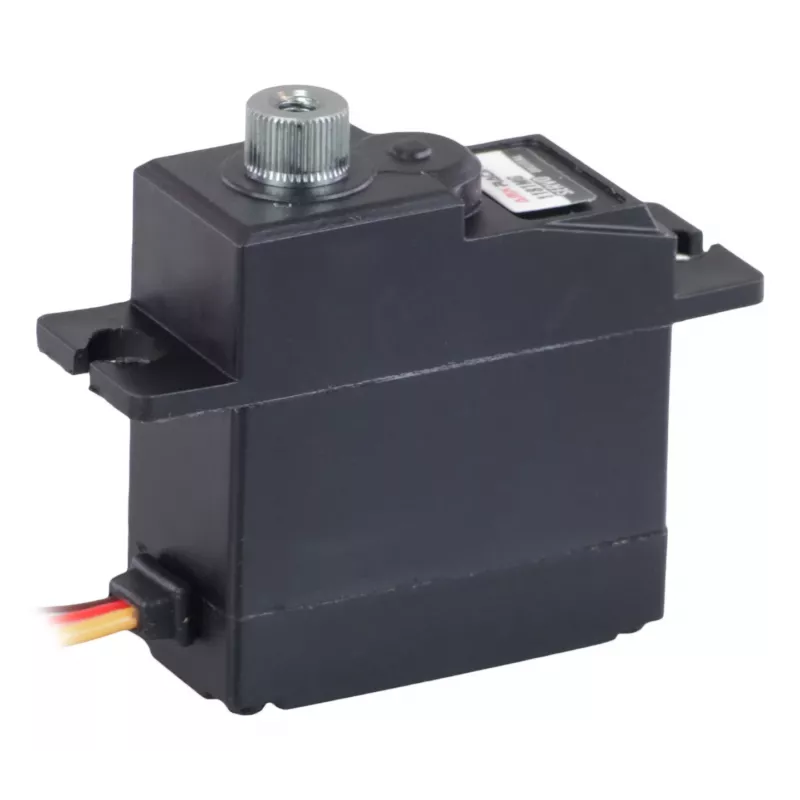

Amewi Micro-servo AMXRacing 1181MG Midi analoge servo metaal tandwielkast (28445)

This midi analog servo delivers precise control with a metal gear train for durability in RC cars, boats, aircraft, and robotics. Its 2 ball bearings and strong torque make it reliable under load.

Advantages

Metal gears provide long-lasting strength, while the dual ball bearings ensure smooth operation. The servo offers a good balance of speed and torque at both 4.8V and 6.0V.

Suitable for

• RC cars and trucks
• RC boats
• RC aircraft
• Robotics projects

Key specifications

• Servo type: Analog
• Servo size: Midi
• Gear material: Metal
• Operating voltage: 4.8V - 6.0V DC
• Stall torque: 3.0 kg/cm at 4.8V, 3.5 kg/cm at 6.0V
• Operating speed: 0.12 sec/60° at 4.8V, 0.10 sec/60° at 6.0V
• Bearings: 2 ball bearings
• Connector: JR / Futaba (universal)
• Control system: PWM
• Dead band width: 2 µs
• Cable length: 250 mm

Recommendations

For reliable steering and throttle control in medium-sized models, pair this servo with a compatible receiver and ensure your power supply matches the voltage range.
