Analoge timer REV 0025400103 WS – mechanische wandtimer, wit

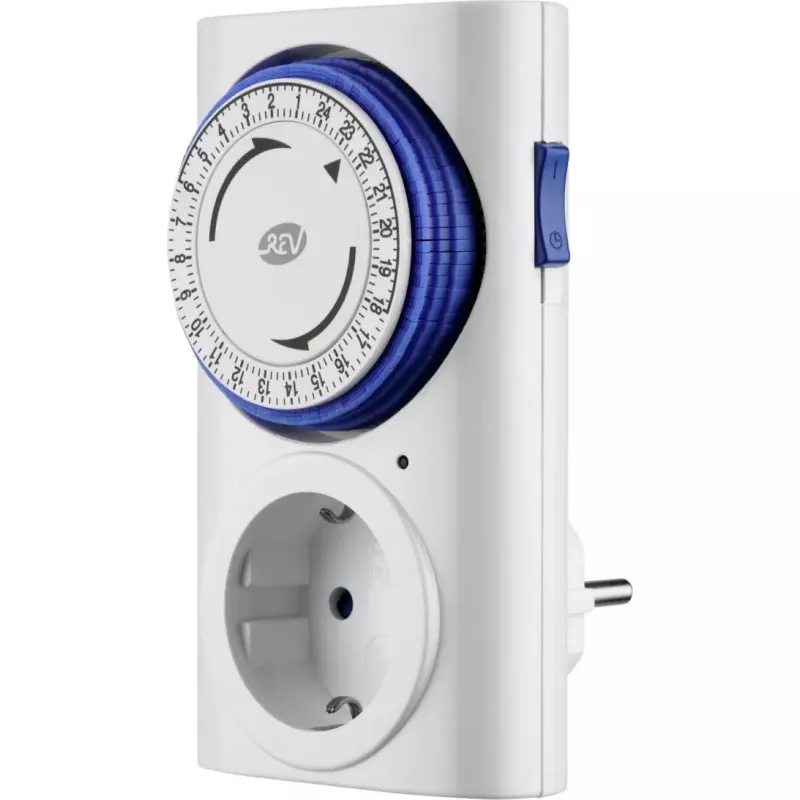

Analog Timer REV 0025400103 WS is a mechanical wall timer in a white finish designed for simple timed control of electrical appliances and lighting. The device uses a mechanical dial and pins or segments to set on/off intervals, providing straightforward analog time control without digital programming. It mounts on a wall and connects inline with the load, offering a durable, low-complexity solution for basic scheduling needs in residential or light commercial environments.

Advantages

The mechanical construction ensures operation without complex setup or software, making the timer easy to use for anyone familiar with traditional dial timers. Its white housing and compact wall-mounted form factor integrate with standard interior fittings and minimize visual impact. Because it is mechanical, the device does not rely on mains-powered displays or microcontroller firmware, which reduces electronic complexity and can improve long-term reliability for simple on/off scheduling tasks.

Suitable for

• Scheduling indoor lighting for rooms, corridors, or display cases
• Controlling heaters, fans, and other simple resistive loads within the device's rated capacity
• Automating appliances for energy management on a fixed daily schedule
• Temporary or permanent installations in homes, offices, or small shops

Key specifications

• Type: mechanical analog wall-mounted timer with dial control
• Finish: white housing suitable for indoor use
• Control: manual dial and mechanical on/off segments for daily scheduling
• Installation: wall-mounted, wired inline with the controlled circuit
• Operation: designed for basic on/off switching without digital programming

How to use

Install the timer on a suitable wall location and connect it in series with the load following local electrical regulations and safety standards. Set the current time by aligning the dial pointer with the present hour marker, then place or remove the mechanical segments or pins to define the on and off periods within a 24-hour cycle. After wiring and setting, switch the timer to automatic mode (if equipped) so the mechanism advances and triggers the contacts at the programmed times. Regularly check mechanical settings to ensure the correct schedule is maintained.

Recommendations

Use this mechanical timer for appliances and lighting that require simple, repeatable daily schedules. Verify the power and load type are compatible with the timer's rated capacity and follow installation instructions or consult a qualified electrician for safe wiring. Avoid exposure to moisture and extreme temperatures to maintain mechanical performance.
