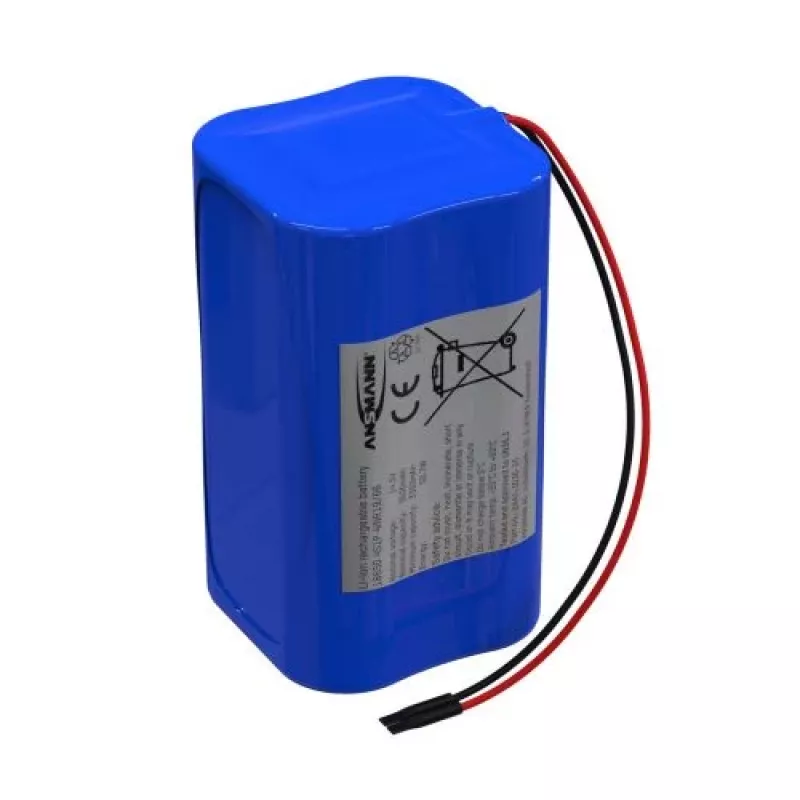

ANSMANN 4S1P Li-Ion accupack 4x 18650 met kabel 14,4V 3500mAh 2447-3036-20

Need a reliable, high-capacity power source for your 14.4V device? The ANSMANN 4S1P battery pack combines four 18650 lithium-ion cells in series to deliver a nominal 14.4V and 3500mAh capacity, with integrated battery management for safe operation.

Who is it for

This pack suits OEM applications, robotics, medical devices, and portable equipment requiring a compact, rechargeable 14.4V Li-Ion source with open wire leads for custom integration.

Main features

• 4S1P configuration: 4 cells in series, 1 in parallel
• Nominal voltage: 14.4V
• Capacity: 3500mAh (50.4Wh)
• Integrated BMS protects against overcharge, over-discharge, overcurrent, and short circuit
• Open wire leads for flexible connection
• Operating temperature: -20°C to +60°C (discharge), 0°C to +45°C (charge)

Specifications

• Battery technology: Lithium-Ion
• Cell format: 18650
• Number of cells: 4
• Max discharge current: 3.5A
• Max charge current: 3.5A
• Charging voltage: 16.8V

Tips

Ensure your device's charging circuit matches the 16.8V charging voltage and does not exceed the 3.5A charge current to maintain battery health.
