ANSMANN EV-laadkabel Type 2 22kW 5m Zwart

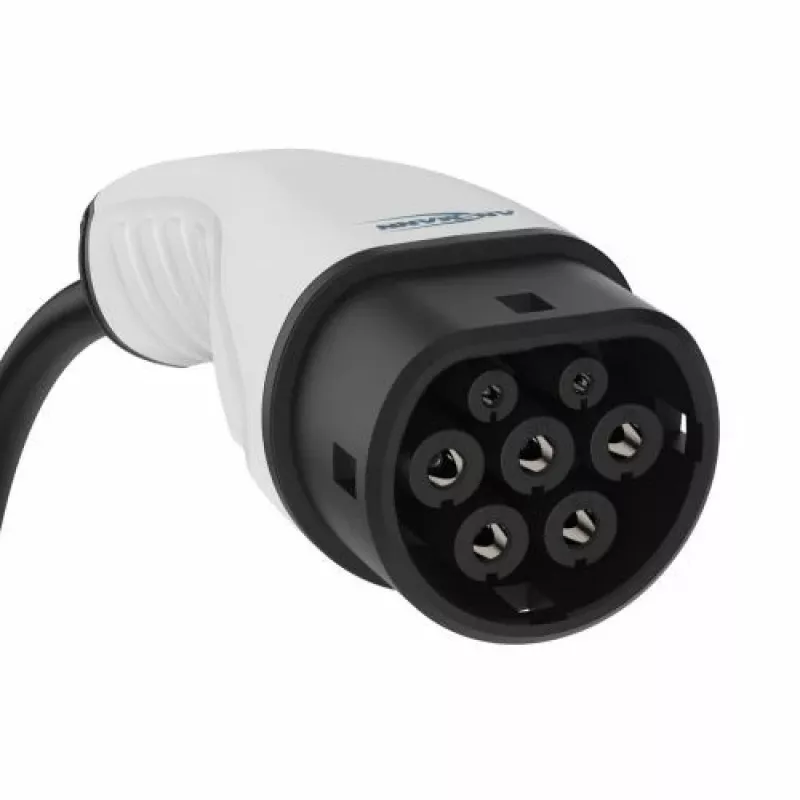

The ANSMANN EV Charging Cable Type 2 is a high-quality charging solution for electric and plug-in hybrid vehicles. With a maximum charging power of 22 kW and a length of 5 meters, it offers flexibility and efficiency for everyday charging needs. The cable features Type 2 connectors on both ends, compliant with IEC 62196-2, ensuring compatibility with most public charging stations and wallboxes.

Advantages

This charging cable is designed for durability and performance. The TPU cable jacket provides excellent UV resistance, flame retardancy, and impact resistance, making it suitable for outdoor use. The IP55 protection class ensures reliable operation even in adverse weather conditions. With a 3-phase design supporting up to 32 A and 400 V AC, it delivers fast and efficient charging.

Suitable for

• Electric Vehicles (EV) and Plug-in Hybrid Electric Vehicles (PHEV) with Type 2 inlet
• Public charging stations and wallboxes with Type 2 socket
• Home and commercial charging applications

Key specifications

• Connector Type: Type 2 (IEC 62196-2) on both ends
• Max Charging Power: 22 kW
• Cable Length: 5 m
• Number of Phases: 3-Phase
• Max Current: 32 A
• Voltage Rating: 400 V AC
• Protection Class: IP55 (when connected)
• Operating Temperature: -30°C to +50°C
• Cable Material: TPU (Thermoplastic Polyurethane)
• Conductor Material: Copper
• Color: Black
• Standards Compliance: CE, RoHS, IEC 62196-2
• UV Resistance: Yes
• Flame Retardant: Yes
• Impact Resistance: Yes
• Cable Diameter: Approx. 16 mm

Recommendations

For optimal performance, ensure your charging station supports 22 kW and 3-phase charging. Always connect the cable securely and protect it from mechanical damage. Store in a dry place when not in use.
