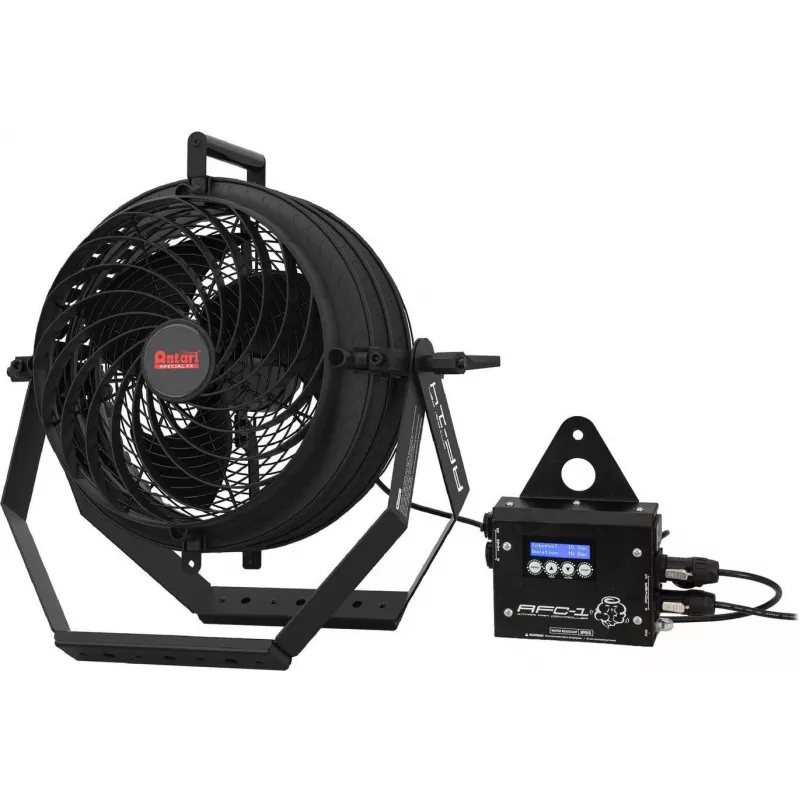

ANTARI AF-14 IP effectventilator (80208084)

When a standard stage fan just won't survive the rigors of outdoor events or dusty industrial environments, the ANTARI AF-14 IP Effect Fan steps in. This IP63-rated wind machine delivers a powerful 1400 CFM airflow while shrugging off dust and spray water, making it a dependable choice for touring productions, film sets, and permanent outdoor installations. Its variable DC motor and DMX control put precise air movement at your fingertips, all housed in a rugged metal casing built for the road.

Highlights

• IP63 rating: dust-protected and resistant to spray water, ideal for challenging environments.
• High airflow: 1400 CFM (39.6 m³/min) for impactful wind effects.
• Variable speed control: 0-100% via DMX or manual adjustment.
• Compact DMX footprint: only 2 channels (fan speed and on/off).
• Flexible mounting: floor standing or hanging with included bracket.
• On-board LCD display for easy local configuration.

In daily use

The AF-14 IP is a workhorse that adapts to your production needs. Set it on the floor to create a breeze across a stage, or hang it from a truss to simulate wind from above. The manual tilt lets you angle the airflow precisely, while the LCD display provides clear feedback on settings. Connect it to your DMX network using the 3-pin XLR connectors and integrate it into complex cues with just two channels—one for speed, one for on/off. The Seetronic PowerCON TRUE1 compatible power connector ensures a secure, IP-rated connection, so you can leave it out overnight without worry.

Full specifications

• Product type: IP Effect Fan / Wind Machine
• IP rating: IP63 (dust protected, protected against spray water)
• Power supply: AC 100-240V, 50/60Hz
• Power consumption: 100 W
• Control protocol: DMX512, Manual
• DMX channels: 2 (Fan Speed, On/Off)
• DMX connectors: 3-pin XLR In/Out
• Power connector: Seetronic PowerCON TRUE1 Compatible (IP-rated)
• Airflow output: 1400 CFM (39.6 m³/min)
• Fan speed control: 0-100% variable
• Motor type: DC Motor
• Display: On-board LCD Display
• Mounting options: Floor standing, hanging bracket (included)
• Housing material: Durable metal casing
• Operating temperature: 0°C - 40°C (32°F - 104°F)
• Angle adjustment: Manual tilt

Final note

For professionals who need reliable wind effects in any weather, the ANTARI AF-14 IP delivers the performance and durability to keep your production moving—rain or shine.
