Antenne DeLOCK 90052 dakmontage hard zwart

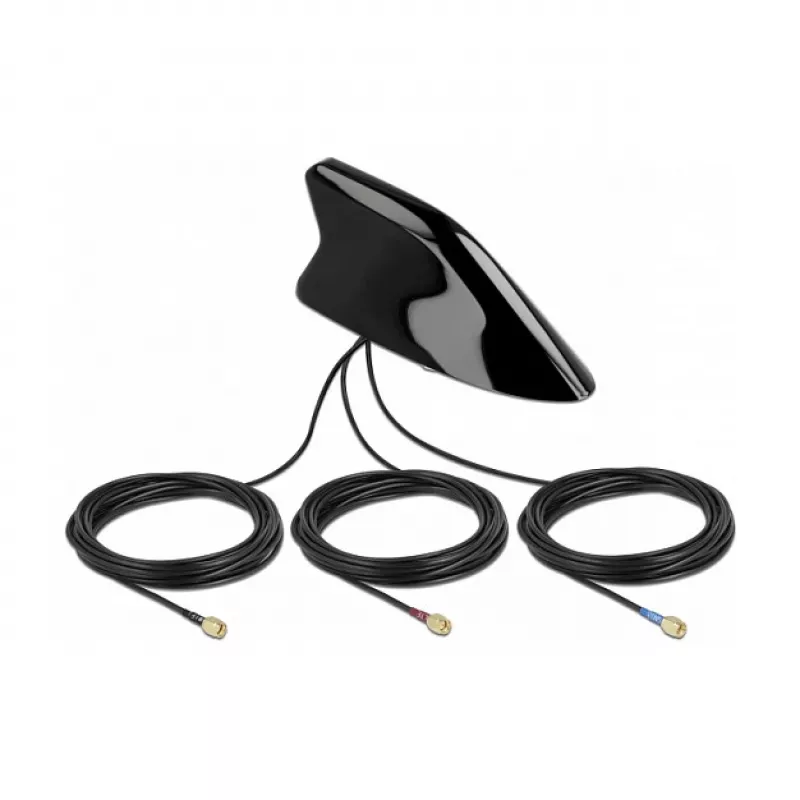

The DeLOCK 90052 shark-fin multiband antenna is made for permanent mounting on a car roof. It integrates a GPS patch antenna that receives GALILEO and GPS satellite signals, supports common LTE bands and covers the 2.4 GHz WLAN range. The antenna is finished in black and has dimensions 182 × 69 × 70 mm with a 3 m cable and 50 Ω impedance.

Advantages

The compact shark‑fin design combines GPS, cellular (LTE) and 2.4 GHz WLAN reception in one housing, reducing the need for multiple external antennas. The aerodynamic shape improves stability at speed while the hard‑mount construction provides permanent, secure attachment to the vehicle roof. The included 3 m cable and standard 50 Ω impedance enable straightforward installation with compatible receivers and radio equipment.

Suitable for

Key specifications

How to use

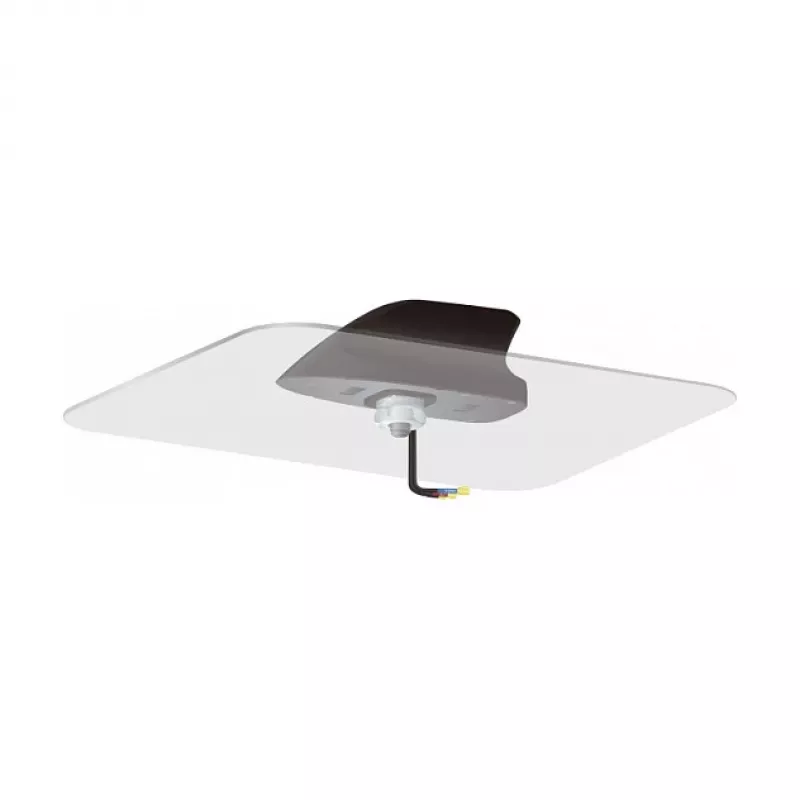

Mount the antenna securely to the vehicle roof according to the vehicle manufacturer's mounting requirements for hard mounts. Route the 3 m cable to the receiver or modem, ensuring connectors are compatible with the device's 50 Ω input. Verify the antenna orientation and tighten mounting fasteners to the recommended torque. After connection, perform a signal check for GPS, LTE and WLAN reception and adjust cable routing if necessary to avoid interference.

Recommendations

Ensure a clear view of the sky for optimal GPS/GALILEO reception and avoid placing metal objects above the antenna. Use suitable weatherproof seals for the roof penetration if required by the vehicle model. For best cellular and WLAN performance, place the antenna centrally on the roof and keep the cable run away from high‑power electrical systems.
