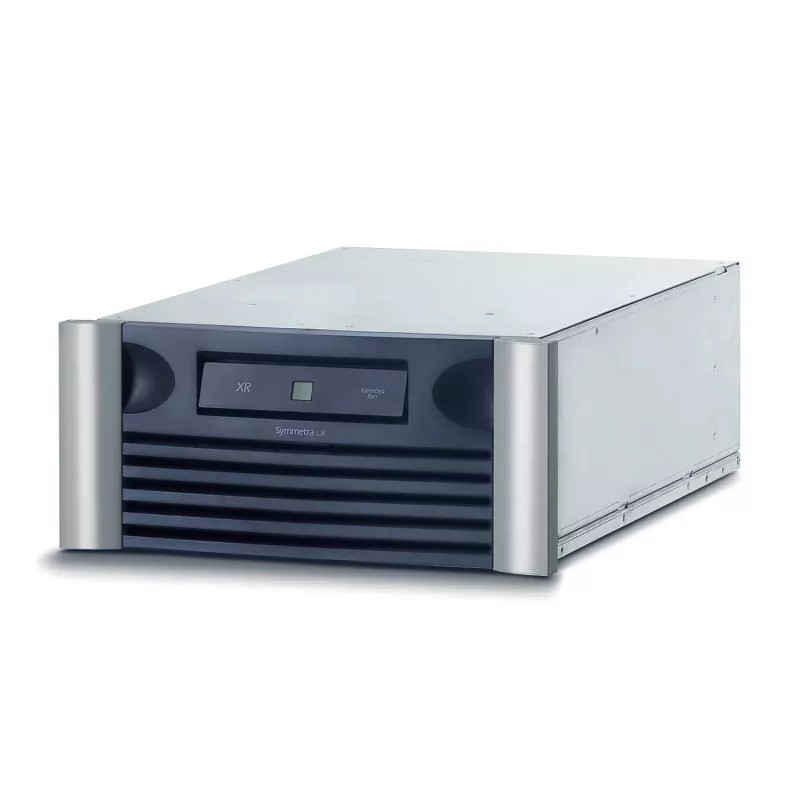

APC Extended Run rack-montabele 3000VA online-USV

Power interruptions and unstable mains can corrupt data, damage equipment, and halt critical operations. The APC Extended Run Rack-Mountable 3000VA Online UPS eliminates these risks by providing clean, continuous sine-wave power to servers, networking gear, and other sensitive electronics. Its double-conversion topology isolates connected loads from all common power problems, while hot-swappable batteries and extended runtime options keep systems running through prolonged outages.

Who is it for

This UPS is ideal for IT managers, data center operators, and businesses that require maximum power protection for rack-mounted servers, storage arrays, VoIP systems, and network infrastructure. It suits environments where power quality is poor or where zero transfer time to battery is essential.

Main features

• 3000VA / 2100W online double-conversion output with pure sine wave
• Rack-mountable 3U form factor for standard 19-inch enclosures
• Eight IEC C13 and two IEC C19 outlets, plus two IEC jumpers for extended runtime battery packs
• SmartSlot for optional network management cards and DB-9 RS-232 for local monitoring
• Hot-swappable, maintenance-free sealed lead-acid batteries with 2.5-hour recharge time
• Audible alarms for on-battery, low battery, and overload conditions
• 480 Joules surge energy rating protects against spikes and surges

Specifications

• Output Power Capacity: 3000 VA / 2100 W
• Output Voltage: 230 V
• Output Frequency: 50/60 Hz ±3 Hz (auto sensing)
• Input Voltage: 230 V
• Input Connection: IEC 320 C20
• Battery Type: Sealed lead-acid, maintenance-free
• Typical Recharge Time: 2.5 hours
• Runtime at Half Load: 20 minutes (1050 W)
• Runtime at Full Load: 7 minutes (2100 W)
• Topology: Double Conversion Online
• Form Factor: Rack-mountable, 3U
• Interface Ports: DB-9 RS-232, SmartSlot
• Operating Temperature: 0 - 40 °C
• Surge Energy Rating: 480 Joules

Tips

For extended runtime beyond the internal battery, connect compatible APC external battery packs using the IEC jumpers. Install the UPS in a well-ventilated rack and keep the ambient temperature below 40°C to maximize battery life. Use PowerChute management software or a SmartSlot network card for graceful shutdown and remote monitoring.
