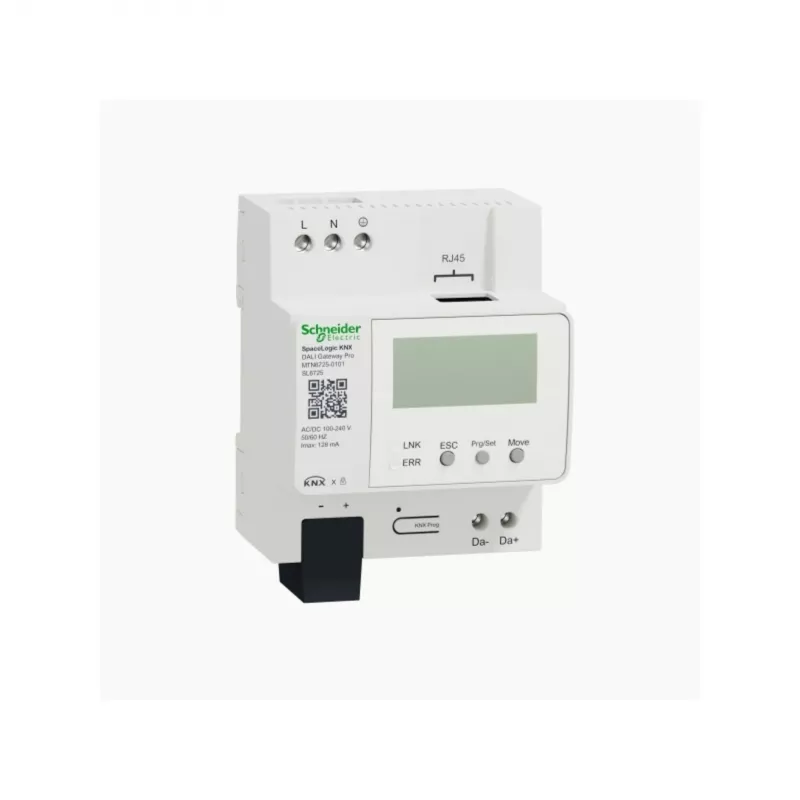

APC SpaceLogic KNX MTN6725-0101 DALI Gateway Pro 1-kanaals DALI-2

The APC SpaceLogic KNX MTN6725-0101 DALI Gateway Pro is a high-performance KNX DALI gateway designed for professional building automation. It enables seamless integration of DALI-2 lighting systems into KNX installations, supporting up to 64 DALI devices per channel. Ideal for commercial and residential projects requiring advanced lighting control, scene management, and emergency lighting support.

Advantages

Full DALI-2 compliance ensures interoperability with a wide range of luminaires and sensors. Supports individual, group, and broadcast control, as well as scene management, fault detection, and emergency lighting (DT1). Tunable white (DT8) and RGBW (DT8) control for dynamic lighting scenarios. Easy configuration via ETS software.

Suitable for

• Commercial buildings requiring flexible lighting control
• Smart home installations with KNX backbone
• Emergency lighting systems compliant with DALI-2
• Retrofit projects upgrading to digital lighting control

Key specifications

• Product Type: KNX DALI Gateway
• Number of DALI Channels: 1
• DALI Version: DALI-2 (IEC 62386)
• Max DALI ECGs per Channel: 64
• Max DALI ECBs per Channel: 64
• KNX Medium: TP1-256
• Power Supply: KNX Bus and Auxiliary 24 V DC
• Auxiliary Power Supply Voltage: 24 V DC
• Power Consumption (KNX Bus): 10 mA
• Power Consumption (Auxiliary): 50 mA (plus DALI load)
• Mounting Type: DIN Rail (4 modules)
• Operating Temperature: 0°C to 45°C
• Storage Temperature: -25°C to 70°C
• Protection Degree: IP20
• Configuration Software: ETS
• Bus Connection: KNX Bus Terminal
• DALI Connection: Screw Terminals

Recommendations

For optimal performance, use with DALI-2 certified luminaires and sensors. Ensure auxiliary power supply is rated for the total DALI load. Configure using ETS5 or higher.
