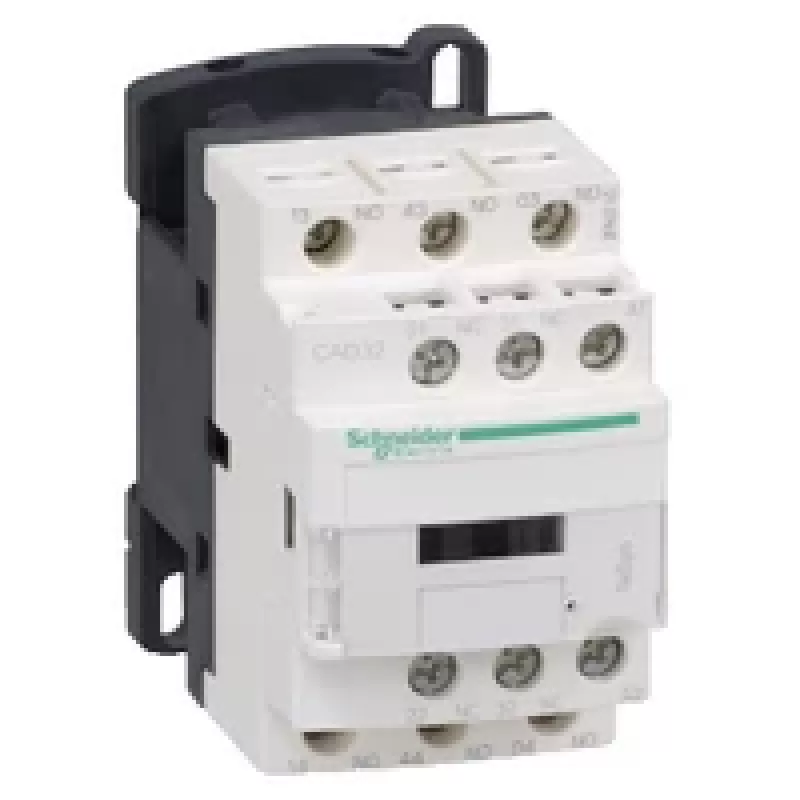

APC TeSys D besturingsrelais - wit - 230 V AC - 10 A - 45 x 84 x 77 mm

The APC TeSys D control relay is a reliable and compact solution for industrial control applications. Designed for DIN rail or plate mounting, this relay offers robust performance with a 230 V AC coil and 10 A rated operational current. Its white housing and IP20 front face protection make it suitable for various environments.

Advantages

High electrical and mechanical durability (10 Mcycles and 30 Mcycles respectively) ensures long service life. The relay features 3 normally open and 2 normally closed contacts, providing flexibility for control circuits. Compliance with international standards (IEC, EN, UL, CSA) guarantees safety and interoperability.

Suitable for

• Industrial automation and control panels
• Motor control centers
• Building management systems
• HVAC equipment

Key specifications

• Product Type: Control Relay
• Series: TeSys D
• Contact Configuration: 3 NO + 2 NC
• Coil Voltage: 230 V AC, 50/60 Hz
• Rated Operational Current: 10 A (AC-15 at 230 V), 0.6 A (DC-13 at 110 V)
• Operating Temperature: -40 to 60 °C
• Storage Temperature: -60 to 80 °C
• Mounting: DIN Rail, Plate
• Degree of Protection: IP20 (front face)
• Terminal Type: Screw Clamp
• Dimensions: 45 x 84 x 77 mm
• Color: White

Recommendations

For optimal performance, ensure proper mounting and wiring according to the manufacturer's instructions. Suitable for use in dry environments; avoid exposure to excessive moisture or dust.
