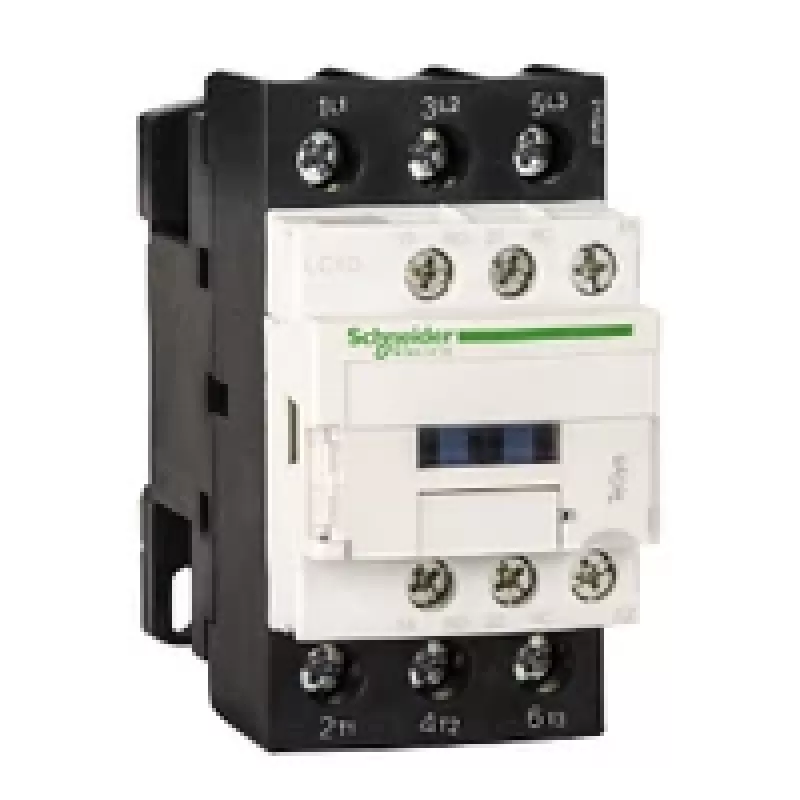

APC TeSys D contactor 3P 25A AC-3 24V AC 1NO+1NC LC1D25B7

The APC LC1D25B7 is a high-performance TeSys D contactor designed for reliable motor control and switching applications. With 3 poles, a rated operational current of 25 A in AC-3 category (up to 440 V) and 40 A in AC-1 (up to 690 V), it handles motor loads up to 11 kW at 380-400 V. The 24 V AC 50/60 Hz coil ensures safe and efficient operation. Built with screw clamp terminals and IP20 protection, it mounts on DIN rail or with screws. This contactor includes 1 normally open and 1 normally closed auxiliary contact for added flexibility.

Advantages

Compact design saves panel space. High electrical and mechanical durability reduces maintenance. Wide operating temperature range (-5 to 60 °C) suits demanding environments. Integrated auxiliary contacts eliminate need for separate modules.

Suitable for

• Motor starting and stopping in industrial machinery
• Lighting and heating load switching
• Power distribution and control panels
• HVAC systems
• Pumps and compressors

Key specifications

• Product Series: TeSys D
• Number of Poles: 3P
• Rated Operational Current (AC-3): 25 A at ≤ 440 V
• Rated Operational Current (AC-1): 40 A at ≤ 690 V
• Motor Power (AC-3, 380-400V): 11 kW
• Coil Voltage: 24 V AC 50/60 Hz
• Auxiliary Contacts: 1 NO + 1 NC
• Mounting Type: DIN rail or screw fixing
• Terminal Type: Screw clamp terminals
• Protection Class: IP20 (front face)
• Rated Insulation Voltage (Ui): 690 V (IEC 60947-4-1)
• Rated Impulse Withstand Voltage (Uimp): 6 kV
• Operating Temperature: -5 to 60 °C

Recommendations

For optimal performance, use with appropriate overload relay and ensure proper torque settings for screw terminals. Verify coil voltage matches control circuit.
