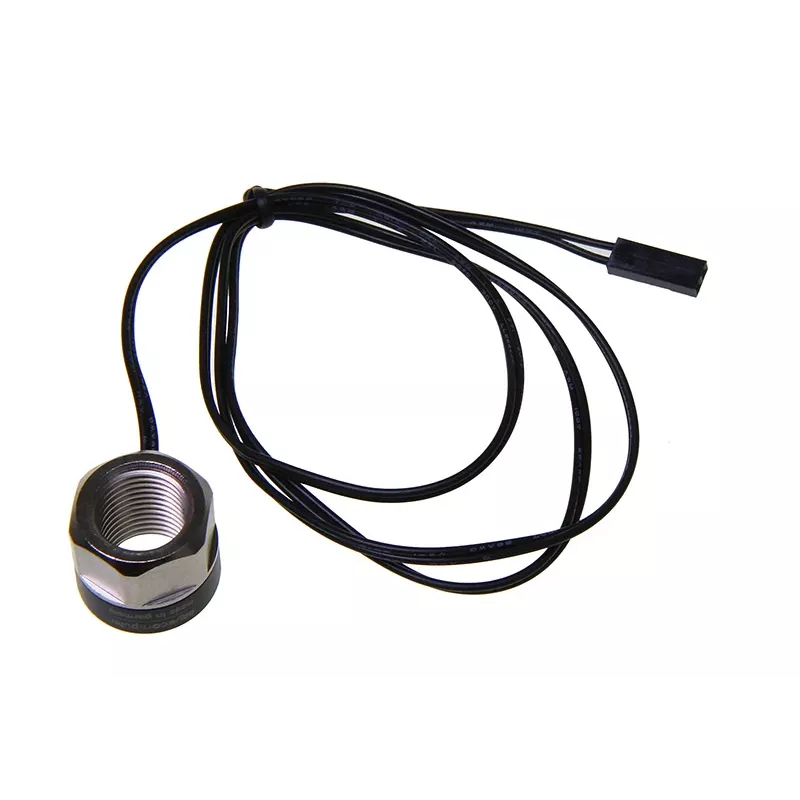

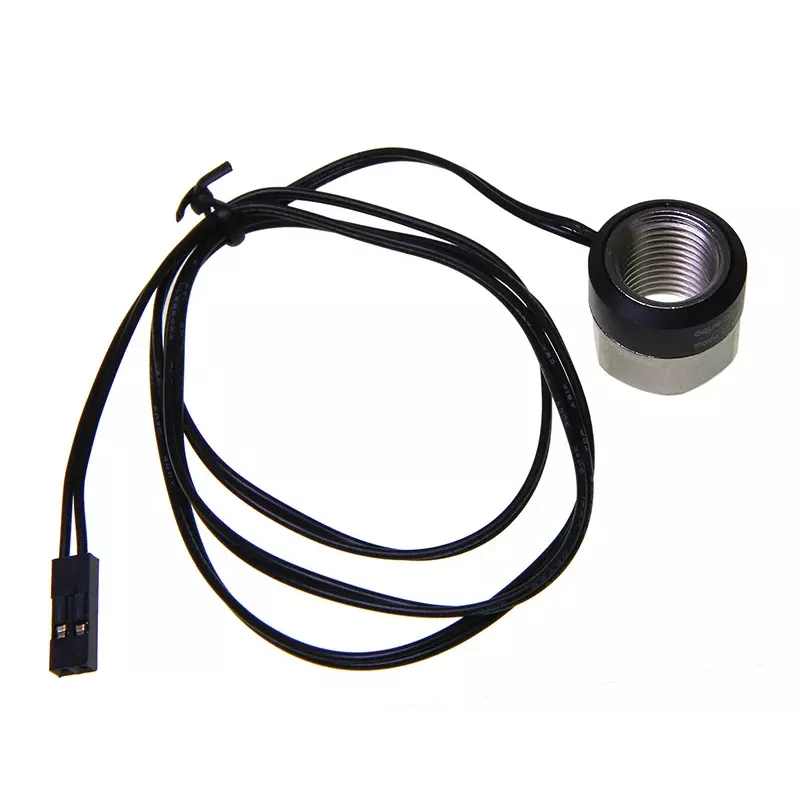

Aqua Computer G1/4 temperatuursensor

The Aqua Computer G1/4 Temperature Sensor is a high-precision NTC thermistor sensor designed for monitoring coolant temperature in PC liquid cooling systems. With its standard G1/4 thread, it can be directly installed into any G1/4 port, making it compatible with a wide range of water blocks, radiators, reservoirs, and fittings. The sensor provides accurate temperature readings to Aqua Computer controllers such as Aquaero, D5 Next, and Aquastream XT, enabling intelligent fan speed control and system monitoring.

Advantages

Accurate temperature measurement with a 10 kOhm NTC thermistor ensures reliable data for cooling performance optimization. The nickel-plated brass construction offers durability and corrosion resistance. The 50 cm cable provides flexible placement options within the case.

Suitable for

• PC liquid cooling systems requiring coolant temperature monitoring
• Integration with Aqua Computer controllers (Aquaero, D5 Next, Aquastream XT)
• Direct installation into G1/4 threaded ports on water blocks, radiators, or reservoirs

Key specifications

• Product Type: Water Temperature Sensor
• Thread Size: G1/4" (BSPP)
• Sensor Type: NTC Thermistor
• Nominal Resistance: 10 kOhm at 25°C
• Measurement Range: 0 - 80 °C
• Connector: 2-pin (Aqua Computer standard)
• Cable Length: 50 cm
• Material: Nickel-plated Brass

Recommendations

For optimal cooling performance, place the sensor after the radiator or in the reservoir to measure the warmest coolant temperature. Pair with an Aqua Computer controller for advanced fan curve adjustments based on real-time temperature data.
