Arduino AKX00033 motor voor Engineering Kit R2 - 12V borstel-DC-motor, 6000 tpm, D-as

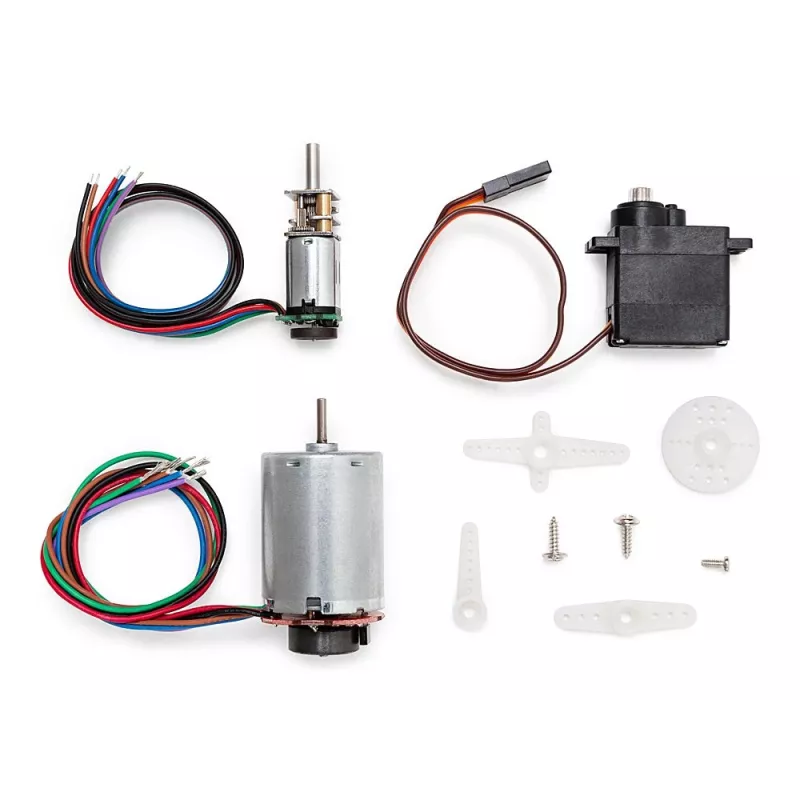

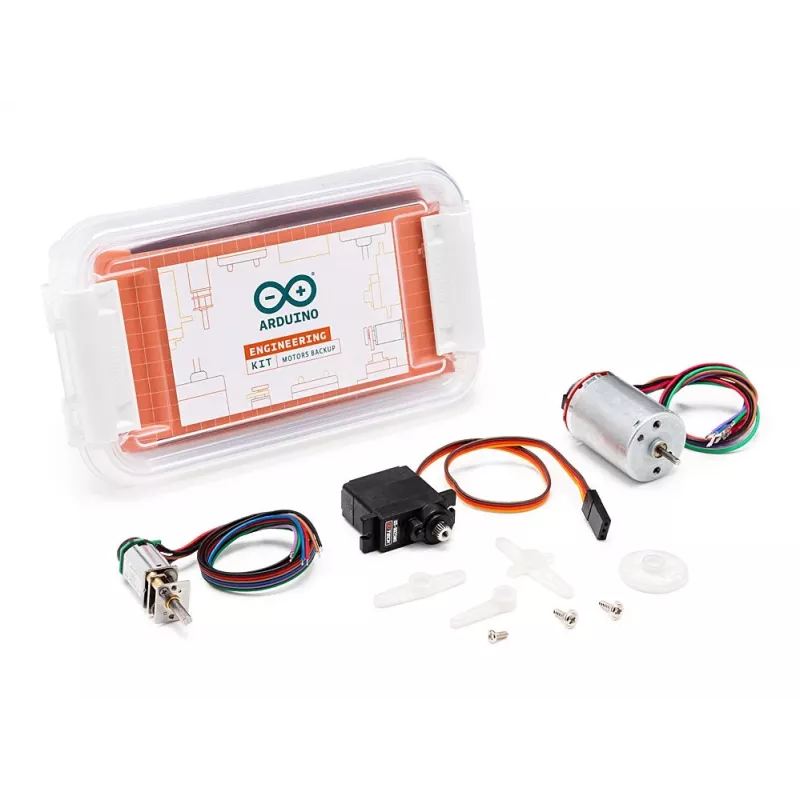

This is the spare motor for the Arduino Engineering Kit R2, offering a direct replacement for the original brushed DC motor included in the kit. Unlike generic motors, it is specifically matched to the kit's mechanical and electrical design, ensuring seamless integration with the provided motor mounts and encoder wheels.

Highlights

• Brushed DC motor with 12 V rated voltage
• No-load speed of 6000 RPM and rated torque of 20 mNm
• D-cut shaft with 2.3 mm diameter for secure coupling
• Compact body: 27.5 mm diameter, 38 mm length (excluding shaft)
• Front face screw mounting for easy installation
• Bi-directional rotation for versatile robot control

In daily use

When a motor in your Engineering Kit R2 wears out or gets damaged, this replacement restores full functionality. Solder the two terminals to your motor driver, mount it using the front screw holes, and attach the wheel to the D-cut shaft. It is ideal for educational robotics projects, prototyping, and keeping your kit in working order for future experiments.

Full specifications

• Motor type: Brushed DC Motor
• Rated voltage: 12 V
• No-load speed: 6000 RPM
• No-load current: 100 mA
• Rated speed: 5000 RPM
• Rated torque: 20 mNm
• Stall torque: 100 mNm
• Stall current: 1.5 A
• Shaft diameter: 2.3 mm
• Shaft type: D-cut
• Number of terminals: 2
• Compatibility: Arduino Engineering Kit R2
• Body diameter: 27.5 mm
• Body length (excluding shaft): 38 mm
• Commutation: Brush
• Direction of rotation: Bi-directional
• Mounting type: Front face screw mounting
• Power connection: Solder terminals

Final note

Keep your Arduino Engineering Kit R2 running with this exact replacement motor, ensuring consistent performance for all your robotics projects.
