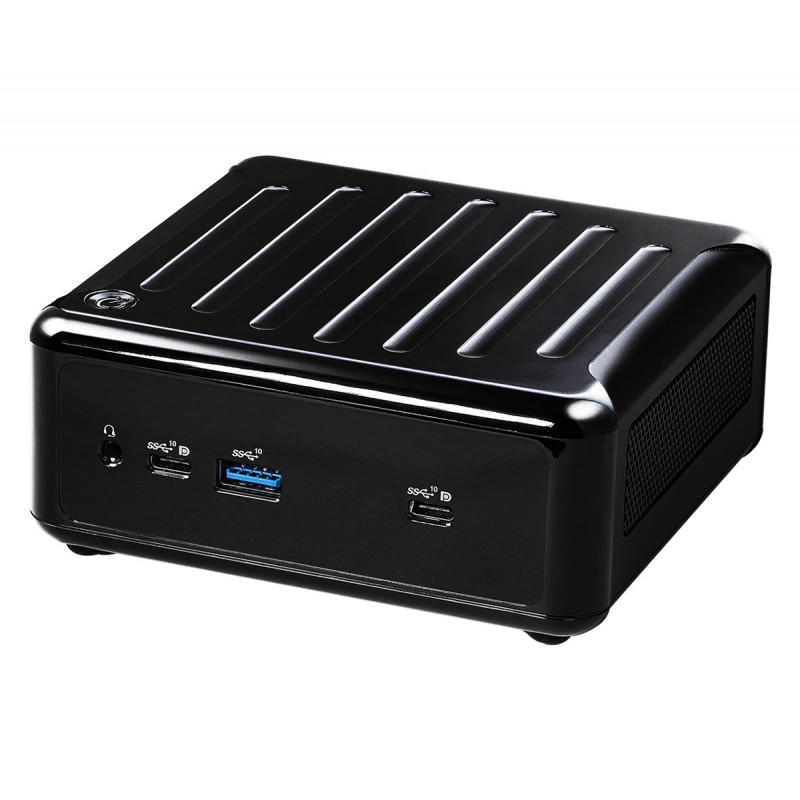

Asrock NUC BOX-1165G7 0,6 l mini-pc zwart i7-1165G7 4,7 GHz

The ASRock NUC BOX-1165G7 packs the performance of an 11th Gen Intel Core i7 into a chassis barely larger than a sandwich. With a 0.6-liter volume, it delivers desktop-class responsiveness for office productivity, digital signage, and edge computing while consuming minimal desk space and power.

Highlights

• Intel Core i7-1165G7 with 4 cores, 8 threads, and up to 4.7 GHz Turbo
• Intel Iris Xe integrated graphics for smooth 4K playback and light content creation
• Dual-channel DDR4 SO-DIMM support up to 64 GB for demanding multitasking
• Dual M.2 slots: one PCIe Gen4 x4 for ultra-fast NVMe SSD, one SATA/PCIe Gen3 for expansion
• Wi-Fi 6 and Bluetooth 5.x for high-speed wireless connectivity
• Rich I/O: Thunderbolt 4, USB 3.2 Gen2, dual HDMI 2.0b, DisplayPort 1.4a, and Gigabit Ethernet
• VESA mount support for clean installation behind monitors or under desks

In daily use

This barebone unit arrives without RAM, storage, or an operating system, giving integrators and enthusiasts full control over configuration. Populate the two SO-DIMM slots and M.2 drives, install your preferred OS, and you have a silent, reliable workstation for web apps, video conferencing, or always-on services. The external 90W adapter keeps the main unit cool and compact.

Full specifications

• Processor: Intel Core i7-1165G7 (11th Gen Tiger Lake), 4C/8T, 2.8 GHz base, 4.7 GHz Turbo, 12 MB cache
• Graphics: Intel Iris Xe Graphics (96 EU)
• Memory: 2 x DDR4 SO-DIMM slots, dual-channel, up to 64 GB, 3200 MHz
• Storage: 1 x M.2 2280 PCIe Gen4 x4, 1 x M.2 2242 SATA/PCIe Gen3 x2
• Wireless: Intel Wi-Fi 6 AX201 (802.11ax), Bluetooth 5.1
• Ethernet: 1 x Gigabit LAN (Intel I219-V)
• Video outputs: 2 x HDMI 2.0b (4K@60Hz), 1 x DisplayPort 1.4a, 1 x Thunderbolt 4 (USB-C, DisplayPort alt mode)
• USB: 1 x Thunderbolt 4 (USB-C), 3 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 1 x USB 2.0 Type-A
• Audio: 1 x 3.5 mm headphone/microphone combo jack
• Expansion: VESA mount bracket included, Kensington lock slot
• Power: External 90W AC adapter (19V, 4.74A)
• Dimensions: 117 x 112 x 38 mm (W x D x H), 0.6 L volume
• Weight: Approximately 0.7 kg (barebone)
• Operating system: None (barebone)

Final note

The ASRock NUC BOX-1165G7 is a future-ready building block for compact computing. Its combination of Thunderbolt 4, Wi-Fi 6, and PCIe Gen4 storage makes it a versatile choice for both business and enthusiast projects.
