ATEN 1U 10A 8 outlet switched bank metered PDU + gratis Eco PDU Manager software

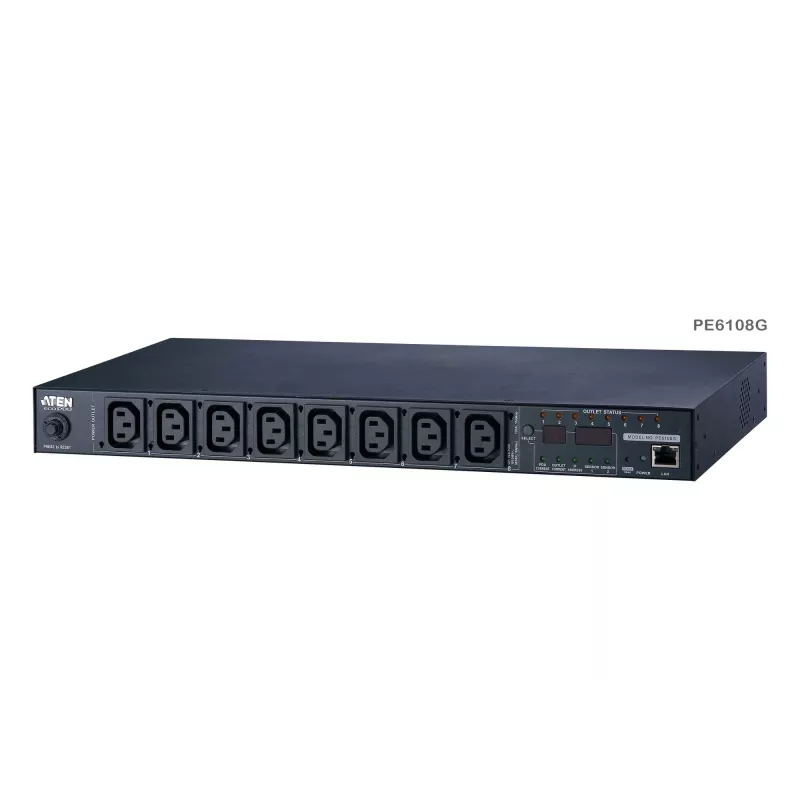

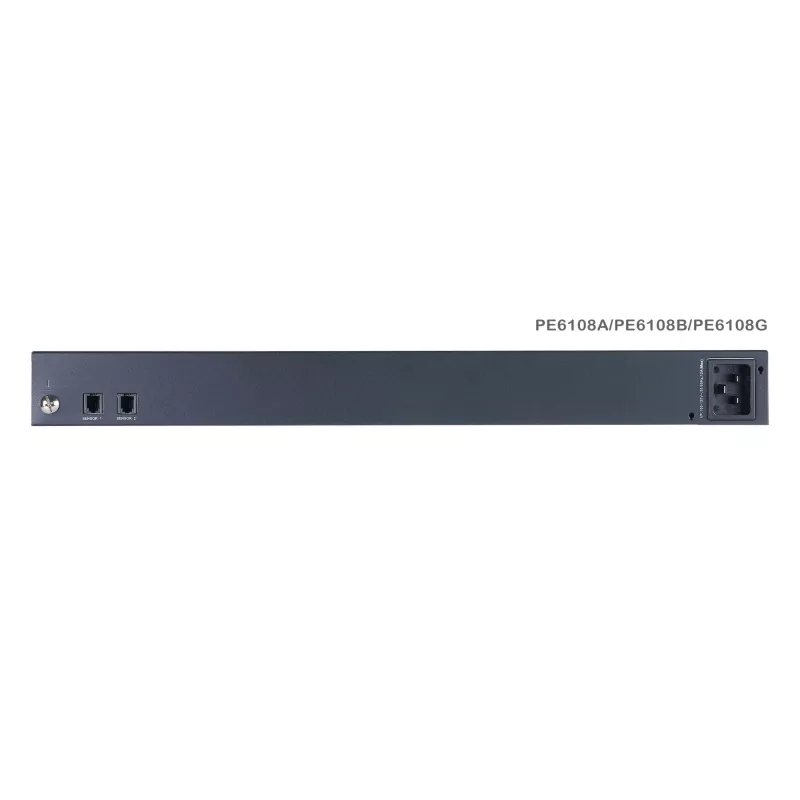

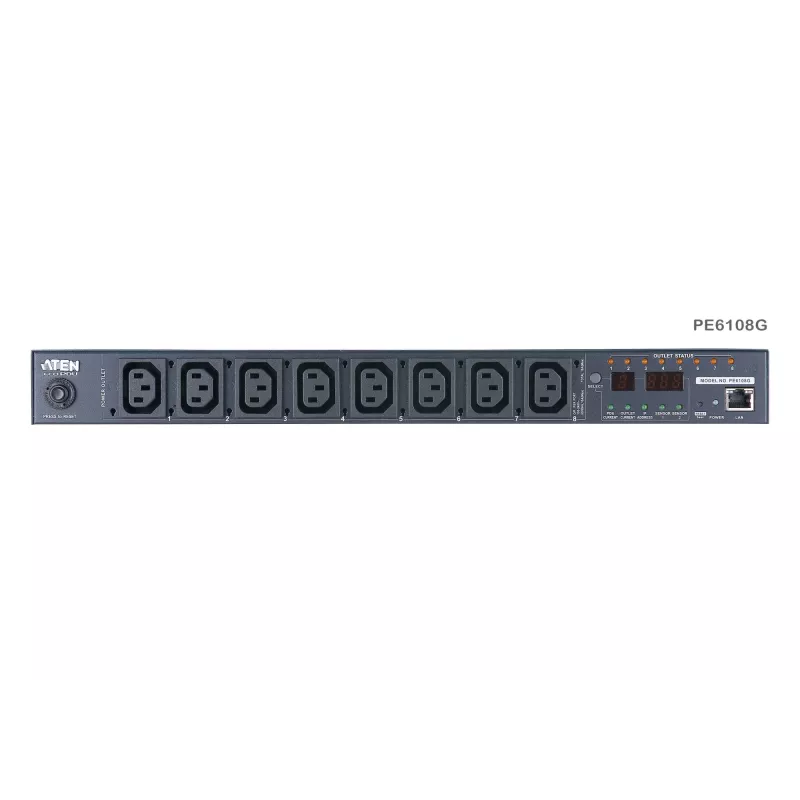

The ATEN PE6108G is a 1U rack-mount monitored Power Distribution Unit (PDU) with 8 C13 AC outlets and a C20 input plug. Designed for space-efficient rack installation, it supports 100–240 V input and a maximum current of 10 A. The unit provides front-panel LED indication for current and IP address, LAN/Link/Power/Status indicators, remote current monitoring and separate power for the unit electronics and its outlets so the interface remains available if an outlet circuit breaker trips.

Advantages

The PE6108G offers remote power control over TCP/IP via a built-in 10/100 Ethernet port and supports common network protocols including HTTP/HTTPS, SNMP v3, SMTP, DHCP and NTP. It provides individual outlet control (On, Off, Power Cycle), configurable power-on sequencing with per-outlet delays, real-time metering of current, voltage and kWh at the PDU level, and naming and access assignment per outlet. Security features include two-level user accounts, 128-bit SSL encryption and RADIUS authentication. Firmware is upgradeable and the device supports multiple languages.

Suitable for

• Rack-mounted IT equipment requiring monitored power distribution
• Remote data center or server room power management
• Environments needing per-outlet control and power sequencing
• Installations that require real-time current and energy monitoring

Key specifications

• Model: ATEN PE6108G (PE6108G-AX-G)
• Form factor: 1U rack-mount, rear mounting
• Input voltage: 100–240 V
• Maximum current: 10 A
• Outlets: 8 × C13 (AC outlets)
• Input connector: C20
• Network: 10/100Base-T Ethernet (TCP/IP, HTTP/HTTPS, SNMP v3, SMTP, DHCP, NTP, DNS)
• Monitoring: real-time current, voltage, kWh at PDU level; front-panel LED for current/IP
• Control: individual outlet On/Off/Power Cycle; power-on sequencing; local and remote control
• Security: two-level accounts, 128-bit SSL, RADIUS
• Weight: 2.82 kg
• Colour: Black

How to use

Mount the PE6108G in a standard 1U rack space using the supplied rack-mount kit and connect mains power via the C20 input. Attach equipment to the eight C13 outlets. Connect the device to your network using a Cat5/6 cable to the 10/100 Ethernet port and configure network settings via the browser-based interface. Use the web UI or supported management software (eco Sensors) to monitor real-time power metrics, assign outlet names and user permissions, set power-on sequences and thresholds, and perform remote outlet control.

Recommendations

Ensure the total connected load does not exceed the rated 10 A input. Configure power-on sequencing for devices that require staggered startup and enable thresholds and alerts to detect overload or abnormal power conditions. Keep firmware updated and restrict administrative access to authorized accounts for security.
