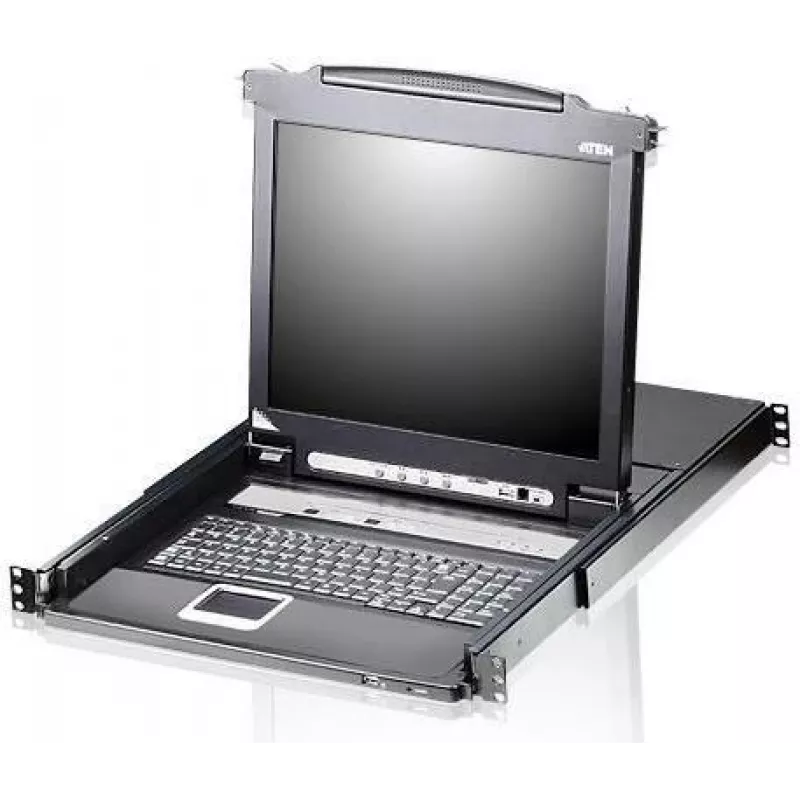

ATEN CL5708M-IT 8-poorts 17 inch LCD KVMP-switch met Italiaans toetsenbord

The ATEN CL5708M-IT is an 8-port 1U rack-mountable LCD KVMP switch that integrates a 17-inch TFT-LCD panel, Italian keyboard, and touchpad into a single rail-mounted console. It allows direct control of up to 8 computers from one console, with daisy-chain capability for up to 31 additional switches to manage 256 computers. The 1280 x 1024 resolution display ensures sharp video output, while the integrated 2-port USB hub enables peripheral sharing. Two-level password security and firmware upgradability make it suitable for secure, scalable server room management.

Advantages

Combining an LCD console, keyboard, touchpad, and KVM switch in a 1U housing saves valuable rack space. The Italian keyboard layout provides localized input, and the integrated touchpad eliminates the need for an external mouse. Dual-level password protection safeguards access to connected servers, while the USB hub allows sharing of USB peripherals among connected computers. Daisy-chaining expands capacity without additional consoles, and firmware upgrades keep the unit current with evolving hardware.

Suitable for

• IT administrators managing multiple servers in data centers
• Server rooms with limited rack space
• Environments requiring Italian keyboard layout
• Secure installations needing password-protected access
• Mixed-platform environments with Windows, Mac, Sun, or Linux systems

Key specifications

• 8 KVM ports with SPHD-15 connectors
• 17-inch TFT-LCD with 1280 x 1024 @ 75Hz resolution
• Integrated Italian keyboard and touchpad
• 1U rack-mountable single rail design
• Daisy-chain up to 31 additional switches (256 computers total)
• 2-port USB 2.0 hub on front panel
• On-screen display (OSD) and hotkey switching
• Multi-platform support: Windows, Mac, Sun, Linux
• 2-level password security
• Firmware upgradable
• External console ports: 1 x VGA, 2 x USB Type A
• Power consumption: 21.3W max

Recommendations

For efficient, secure, and space-saving control of multiple servers, the ATEN CL5708M-IT delivers a complete KVM solution with an integrated Italian console. Its daisy-chain scalability and robust security features make it a reliable choice for growing IT infrastructures.
