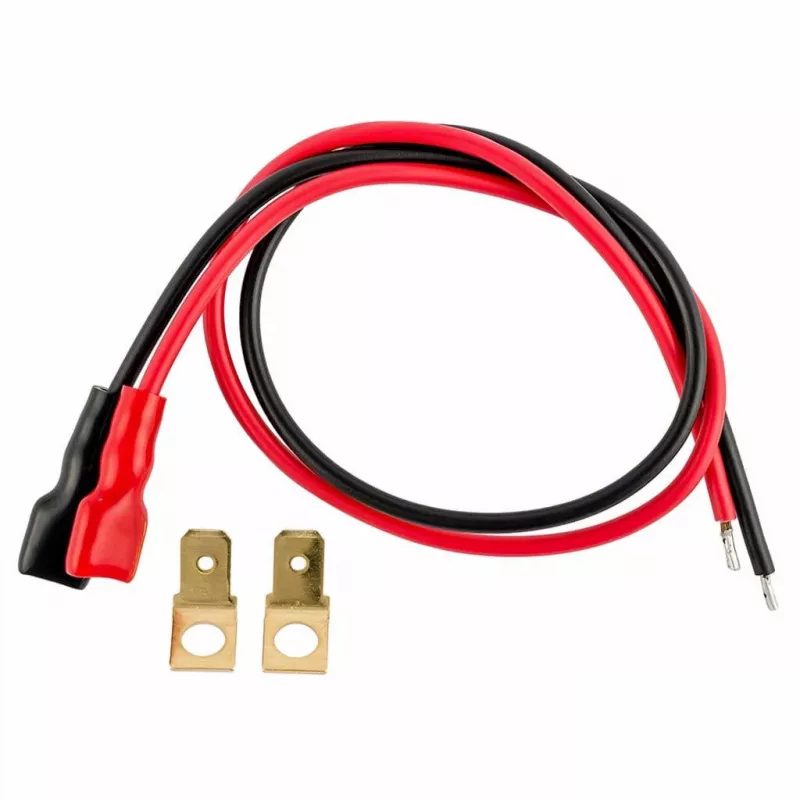

ATTE ADD-AKU30 accu-aansluitkabel 30cm met Faston-terminals

For reliable low-voltage battery connections, the ATTE ADD-AKU30 stands out with its pre-crimped Faston 6.3mm spade terminal on one end and color-coded stranded copper conductors. Unlike generic wire pairs, this 30cm lead is ready to link alarm panels, UPS units, or power supplies to sealed lead-acid batteries without soldering or extra crimping.

Highlights

• Pre-assembled Faston 6.3mm male spade terminal for direct battery tab connection
• 30cm length with red (+) and black (-) PVC-insulated conductors for instant polarity identification
• 0.75mm² stranded copper wire supports up to 6A continuous current at 48V DC
• Bare wire on the opposite end allows custom termination to PCBs, terminal blocks, or connectors
• Flexible PVC insulation remains pliable from -20°C to +70°C, ideal for equipment enclosures

In daily use

Installing or servicing a backup battery becomes straightforward: slide the Faston terminal onto the battery's spade tab, route the cable neatly, and secure the bare ends to your device's input. The red and black jacket colors eliminate guesswork, reducing the risk of reverse polarity. The 30cm length is long enough for most small enclosures yet short enough to avoid excess slack.

Full specifications

• Cable type: Battery connection cable (2 conductors)
• Length: 30 cm
• Wire gauge: 0.75 mm² (stranded copper)
• Insulation: PVC, red (+) and black (-)
• Connector 1: Faston 6.3mm male spade terminal
• Connector 2: Bare wire (tinned ends recommended)
• Maximum current: 6 A
• Maximum voltage: 48 V DC
• Operating temperature: -20°C to +70°C
• Compatibility: Sealed lead-acid batteries (7Ah, 17Ah, 24Ah, etc.)
• Application: Alarm systems, UPS, power supplies, emergency lighting

Final note

The ATTE ADD-AKU30 is a practical, time-saving solution for battery wiring in security and backup power applications. Its pre-terminated Faston connector and clear polarity marking make installation quick and error-free.
