ATTE ASUC-50-240-OF DC/DC-converter 50W 24V ingang 5V uitgang

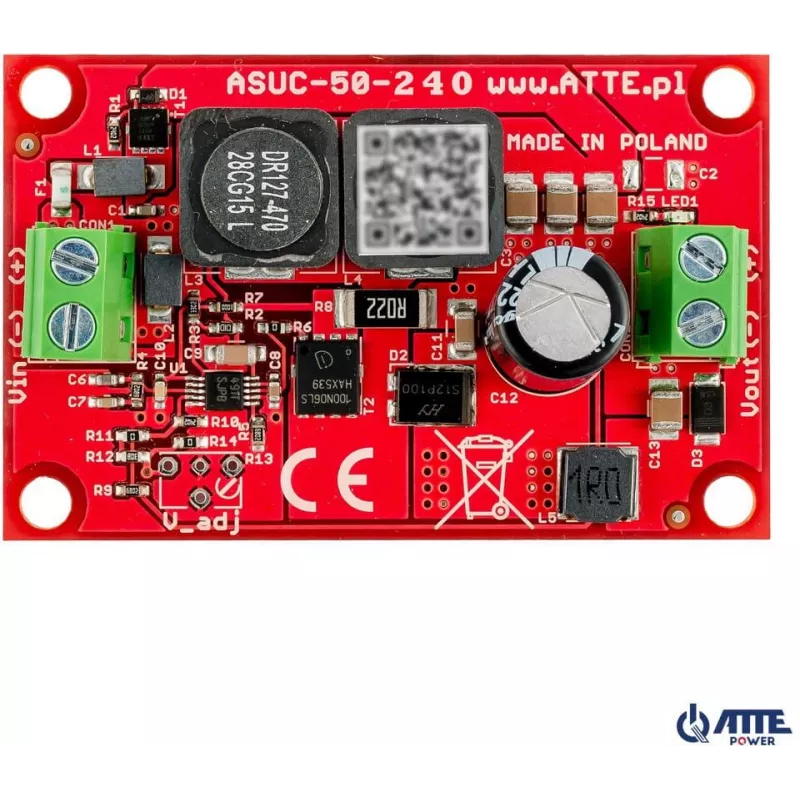

The ATTE ASUC-50-240-OF is a high-efficiency DC/DC converter designed to convert a nominal 24V DC input (range 18-36V) to a stable 5V DC output, delivering up to 10A and 50W of power. Ideal for industrial and embedded applications, this converter features screw terminal connections, passive cooling, and comprehensive protection circuits.

Advantages

With an efficiency exceeding 90%, the ASUC-50-240-OF minimizes power loss and heat generation. Its compact plastic enclosure and screw mounting simplify installation in control cabinets or on DIN rails. Built-in protections against reverse polarity, overvoltage, overload, and short circuit ensure reliable operation in demanding environments.

Suitable for

• Industrial control systems
• Automation equipment
• Embedded electronics
• Telecommunications
• Battery-powered applications

Key specifications

• Input voltage: 18-36V DC (nominal 24V)
• Output voltage: 5V DC
• Max output current: 10A
• Max output power: 50W
• Efficiency: >90%
• Ripple & noise: <50mVp-p
• Operating temperature: -25°C to +55°C
• Humidity: 0-95% RH non-condensing
• Protection: Reverse polarity, overvoltage (input); overload, short circuit, overvoltage (output)
• Mounting: Screw mounting
• Cooling: Passive
• Connectors: Screw terminals (input and output)
• Isolation: Non-isolated
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure the input voltage remains within the specified range and provide adequate ventilation for passive cooling. This converter is not isolated; verify system grounding requirements.
