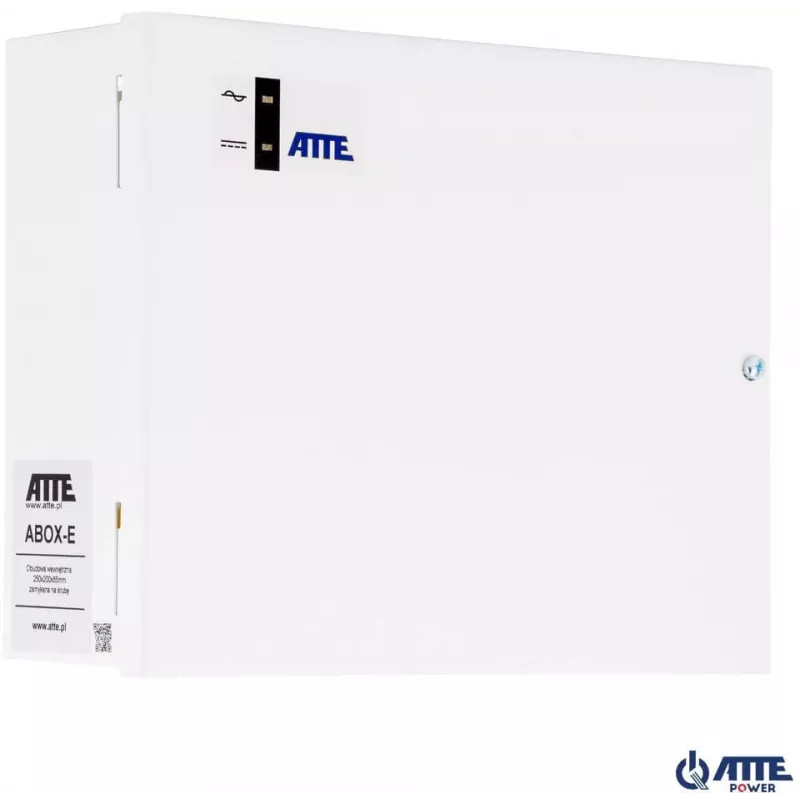

ATTE AUPS-70-120-E Gepufferde schakelvoeding 12V 6A 72W

The ATTE AUPS-70-120-E is a high-quality buffered switched-mode power supply (SMPS) designed for security systems, access control, and automation applications. It provides a stable 12V DC output with up to 6A total current and includes integrated battery charging for backup operation.

Advantages

Reliable power with built-in battery backup ensures uninterrupted operation during mains failure. The adjustable output voltage (11.5-13.8V) allows fine-tuning for specific loads. Comprehensive protection features safeguard both the power supply and connected equipment.

Suitable for

• CCTV cameras and DVRs
• Access control systems
• Alarm systems
• Automation controllers

Key specifications

• Input: 170-250V AC, 50/60Hz
• Output: 12V DC, 6A (max 5A continuous load)
• Power: 72W
• Battery charging: 1A (7-18Ah recommended)
• Protection: SCP, OLP, OVP, UVP, reverse battery
• Efficiency: >85%
• Operating temperature: -10°C to +40°C

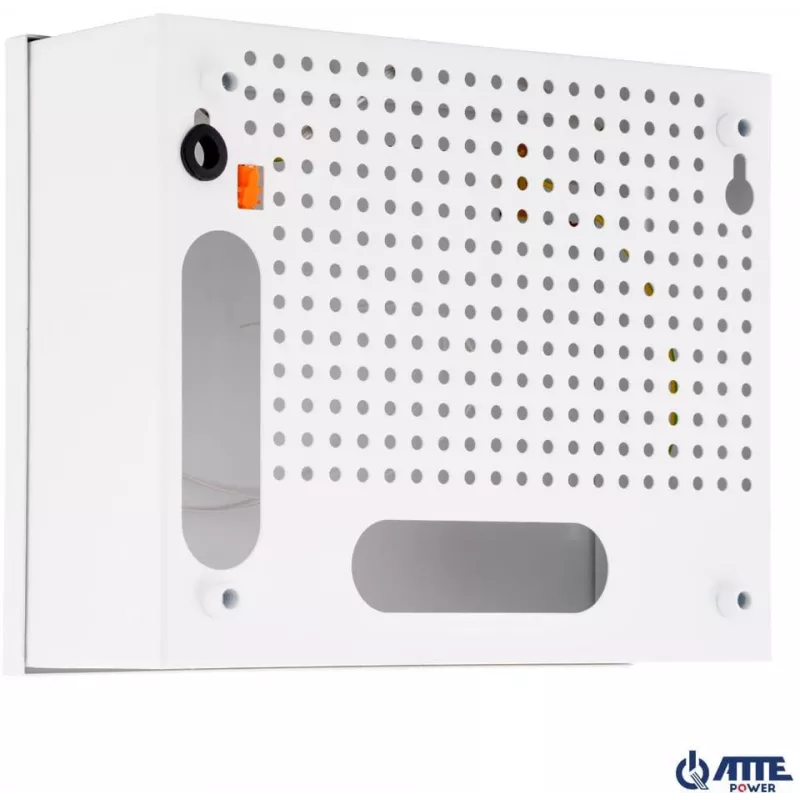

• Enclosure: Metal, wall mount
• Indicators: 3 LEDs (AC, DC, battery)
• Connection: Screw terminals

Recommendations

Use with a 12V sealed lead-acid battery (7-18Ah) for backup. Ensure proper ventilation and do not exceed maximum load current.
