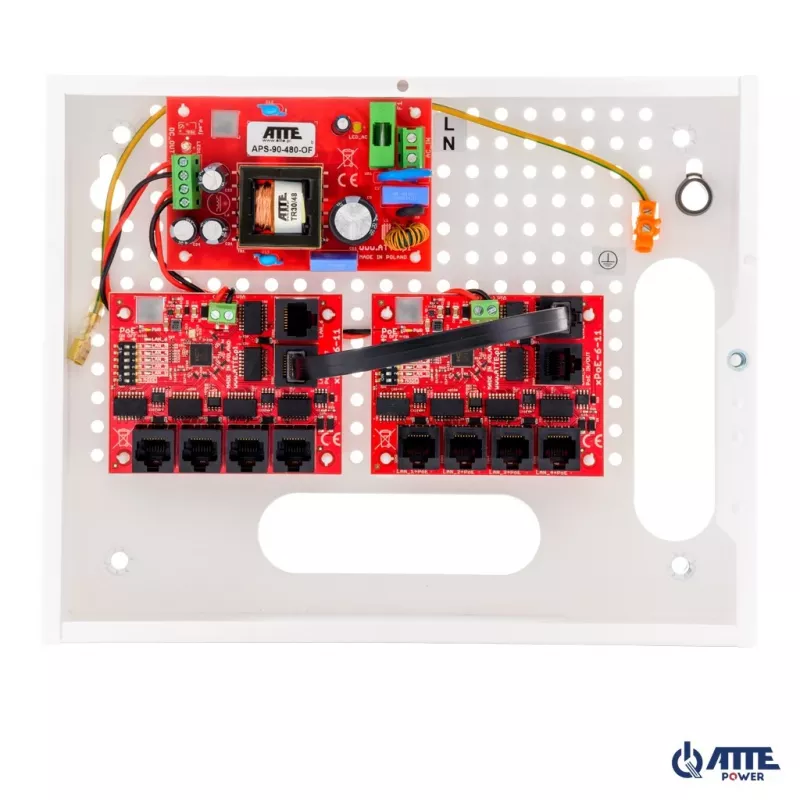

ATTE IP-9-11-E set voor maximaal 9 IP-camera's PoE-switch 9P+1UP

The ATTE IP-9-11-E is a high-performance PoE switch designed for IP camera surveillance systems. With 9 PoE ports and 1 uplink port, it provides reliable power and data transmission for up to 9 cameras, making it an ideal solution for small to medium-sized security installations.

Advantages

This switch offers a total PoE power budget of 120W, with up to 30W per port, supporting both IEEE 802.3af and 802.3at standards. It features VLAN port isolation, Extend Mode for distances up to 250m, and PoE Watchdog for automatic device reset. The internal power supply and desktop design ensure easy deployment.

Suitable for

• IP camera surveillance systems
• Small to medium business security setups
• Remote monitoring applications requiring PoE

Key specifications

• Total Ports: 10 (9 PoE + 1 Uplink)
• PoE Standard: IEEE 802.3af/at
• Total PoE Power Budget: 120W
• Max Power per PoE Port: 30W
• Switching Capacity: 2 Gbps
• Packet Forwarding Rate: 1.48 Mpps
• MAC Address Table Size: 2K
• Extend Mode Distance: Up to 250m at 10Mbps
• Operating Temperature: -10°C to 55°C
• Mounting: Desktop

Recommendations

For optimal performance, use with ATTE IP cameras and ensure proper ventilation. The PoE Watchdog feature helps maintain system uptime by automatically rebooting non-responsive devices.
