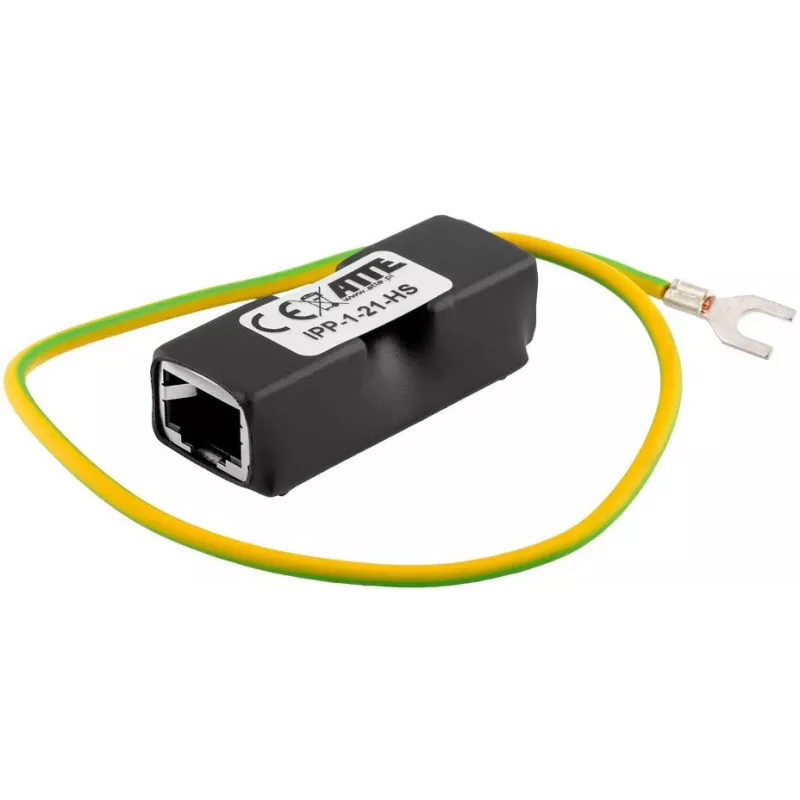

ATTE IPP-1-21-HS Gigabit LAN + PoE overspanningsbeveiliging

The ATTE IPP-1-21-HS is a high-performance surge protector designed for Gigabit Ethernet networks with Power over Ethernet (PoE) support. It safeguards sensitive network equipment against voltage spikes and surges, ensuring reliable data transmission and power delivery. Ideal for both indoor and outdoor installations, this device offers robust protection for all 8 wires (4 pairs) and is compliant with IEEE 802.3af/at/bt standards.

Advantages

• Comprehensive protection for Gigabit Ethernet and PoE++ (up to 60V DC)
• Ultra-fast response time (<1 ns) for immediate surge suppression
• Durable aluminum housing for long-lasting performance
• Easy wall mount or DIN rail installation (adapter optional)
• Suitable for harsh environments with wide temperature range (-25°C to +55°C)

Suitable for

• Protecting PoE cameras, access points, and switches
• Industrial Ethernet networks
• Outdoor and indoor network installations
• Data centers and server rooms

Key specifications

• Network Compatibility: Gigabit Ethernet (10/100/1000Base-T)
• PoE Standard: IEEE 802.3af/at/bt (PoE, PoE+, PoE++)
• Number of Protected Pairs: 4 pairs (all 8 wires)
• Max Continuous Operating Voltage (Uc): 60V DC
• Nominal Discharge Current (In) (8/20µs): 5kA
• Max Discharge Current (Imax) (8/20µs): 10kA
• Voltage Protection Level (Up) (Line-Line): <60V
• Voltage Protection Level (Up) (Line-Ground, Data): <700V
• Voltage Protection Level (Up) (Line-Ground, PoE): <60V
• Response Time: <1 ns
• Connectors: 2x RJ-45 (shielded)
• Grounding: Screw terminal (M4)
• Housing Material: Aluminum
• Operating Temperature: -25°C to +55°C
• Relative Humidity: 0% to 95% (non-condensing)
• Mounting Type: Wall mount, DIN rail (with optional adapter)
• Protection Standard: IEC 61643-21

Recommendations

For optimal protection, install this surge protector at the entry point of the network cable into the building or equipment. Ensure proper grounding using the M4 screw terminal. Use shielded RJ-45 cables for best performance.
