Audio OC818 Studio Set Black microfoon

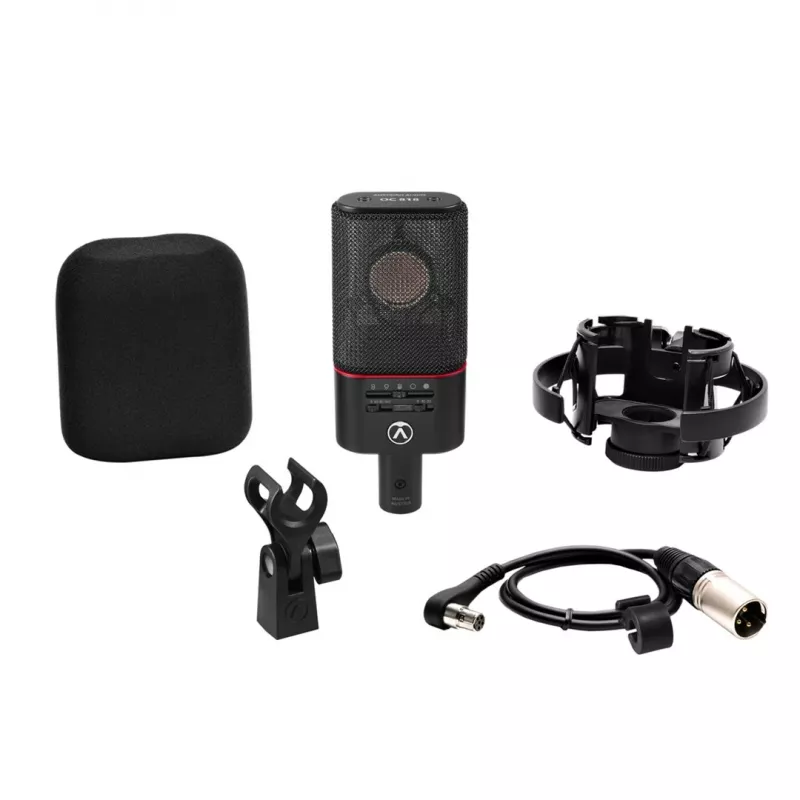

The Audio OC818 Studio Set Black Microphone is a professional large-diaphragm condenser microphone designed for studio recording, broadcasting, and live sound applications. Hand-made in Vienna, Austria, this dual-output microphone features a ceramic capsule (CKR12/CKR6) with selectable polar patterns (cardioid, figure-8, omni, hypercardioid) and custom patterns via the free PolarDesigner plugin. The set includes a spider shockmount, mic clip, windscreen, mini XLR cable, stereo bar, and a carry case, making it a complete solution for demanding audio professionals.

Advantages

Exceptional sound quality with a wide frequency response (20 Hz - 20 kHz) and high SPL handling (158 dB with pad). The dual-output design allows simultaneous recording of main and rear capsule signals for flexible post-production. The included PolarDesigner plugin enables advanced polar pattern control and filtering. Rugged construction and comprehensive accessories ensure reliable performance in any environment.

Suitable for

• Studio recording (vocals, instruments, ensembles)
• Broadcasting and podcasting
• Live sound reinforcement
• Field recording and sound design

Key specifications

• Transducer Type: Condenser
• Polar Patterns: Cardioid, Figure-8, Omni, Hypercardioid (selectable); Custom via PolarDesigner plugin
• Frequency Response: 20 Hz - 20 kHz
• Sensitivity: 13 mV/Pa
• Maximum SPL: 158 dB SPL (with pad)
• Equivalent Noise Level: 9 dB SPL (A-weighted)
• Impedance: 275 Ohms
• Power Requirement: 48V Phantom Power (P48)
• Connector: XLR (3-pin main), Mini XLR (5-pin rear capsule)
• Pad Switch: -10 dB, -20 dB
• High-Pass Filter: 40 Hz (2nd order), 80 Hz (2nd order)
• Color: Black
• Weight: 360 g
• Dimensions: 157 x 63 x 35 mm

Recommendations

The Audio OC818 Studio Set is an excellent choice for engineers and musicians seeking a versatile, high-quality microphone. Its dual-output capability and PolarDesigner plugin offer unprecedented flexibility. Pair with a high-quality audio interface and phantom power supply for best results.
