Audiokabel LogiLink CA0020 0,15 m 3,5 mm 2 x 3,5 mm zwart

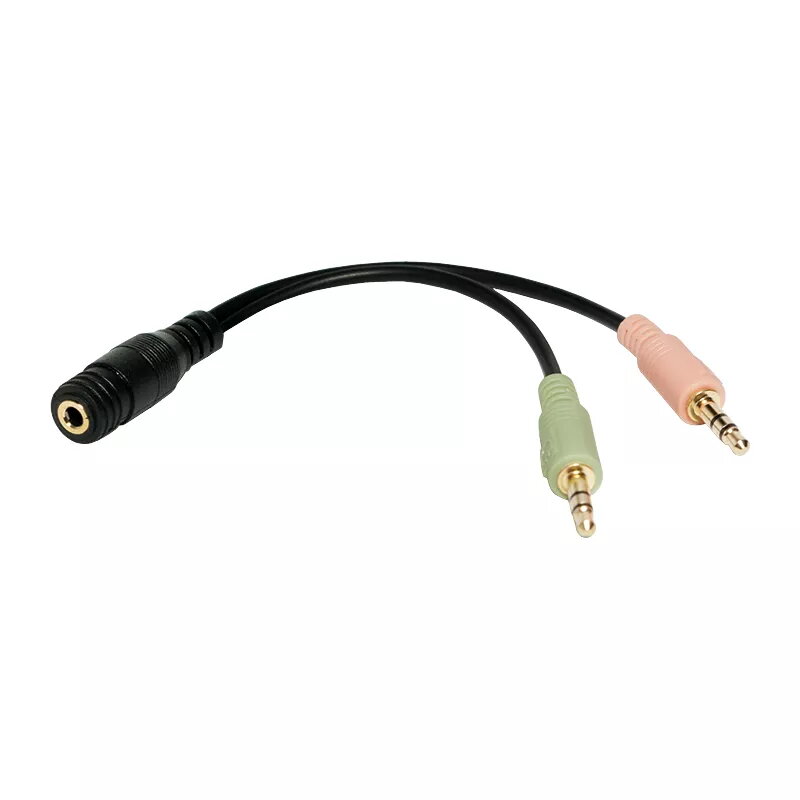

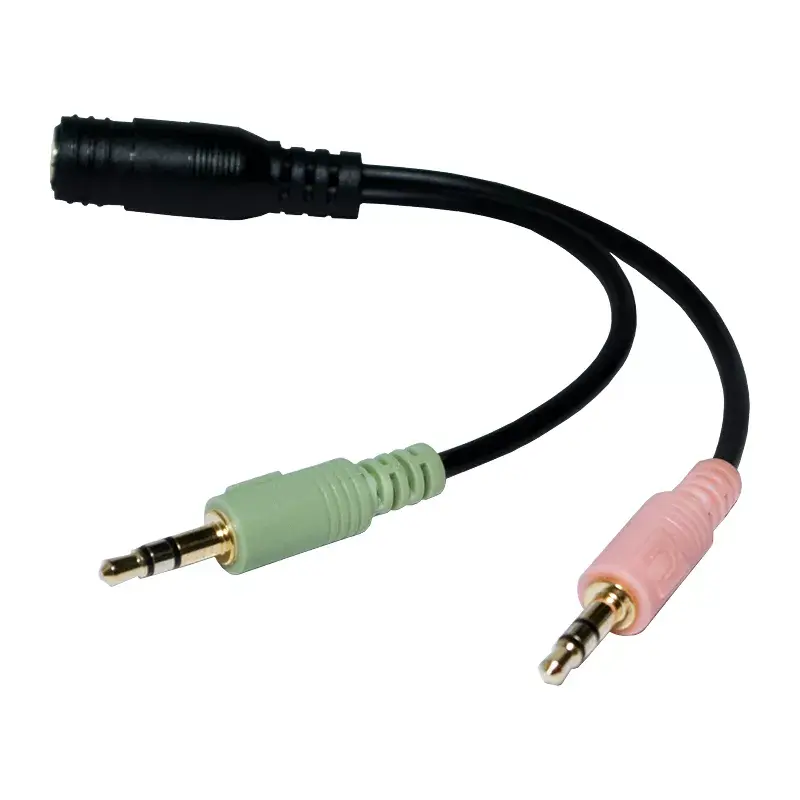

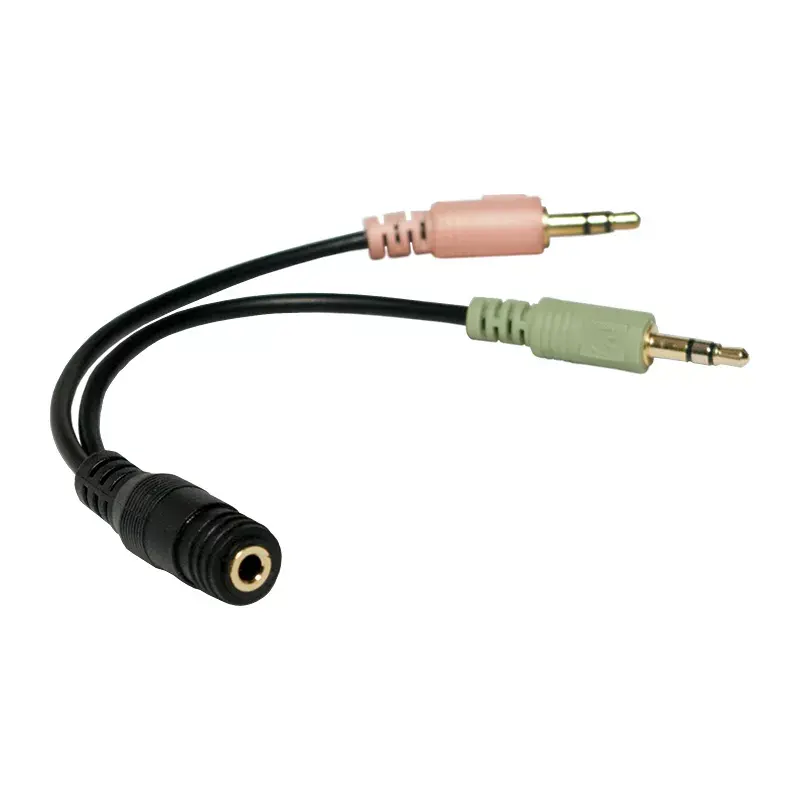

The LogiLink CA0020 audio adapter cable allows connection of headsets with a single 4‑pole 3.5 mm jack to notebooks, PCs or tablets that provide separate microphone and headphone sockets. The compact 0.15 m cable has a black plastic housing and gold‑plated contacts to ensure reliable signal transfer.

Advantages

The adapter converts one 4‑pin 3.5 mm female connection into two 3‑pin 3.5 mm male plugs for separate headphone and microphone ports. Gold‑plated contacts reduce corrosion and improve conductivity. Its short 15 cm length minimizes cable clutter and the plastic housing provides a lightweight, portable solution for mobile and desktop setups.

Suitable for

• Connecting headsets with combined TRRS plugs to notebook or PC audio ports
• Using headsets with tablets that require separate microphone and headphone jacks
• Audio setups where separate mic and headphone connections are needed

Key specifications

• Cable length: 0.15 m (15 cm)
• Connector 1: 4‑pin (TRRS) 3.5 mm female
• Connector 2: 2 x 3‑pin (TRS) 3.5 mm male
• Contacts: gold‑plated
• Housing material: plastic
• Colour: Black

How to use

Insert the headset’s 4‑pin 3.5 mm plug into the adapter’s 4‑pin female socket. Plug the two 3.5 mm male connectors into the computer or tablet headphone and microphone jacks respectively. Ensure correct matching of the headphone and microphone ports on your device for proper audio and microphone function.

Recommendations

For optimal performance, use the adapter with compatible headsets that have a combined TRRS plug and connect to devices with separate TRS microphone and headphone jacks. Keep the short cable free from sharp bends to preserve the gold‑plated contacts and cable integrity.
