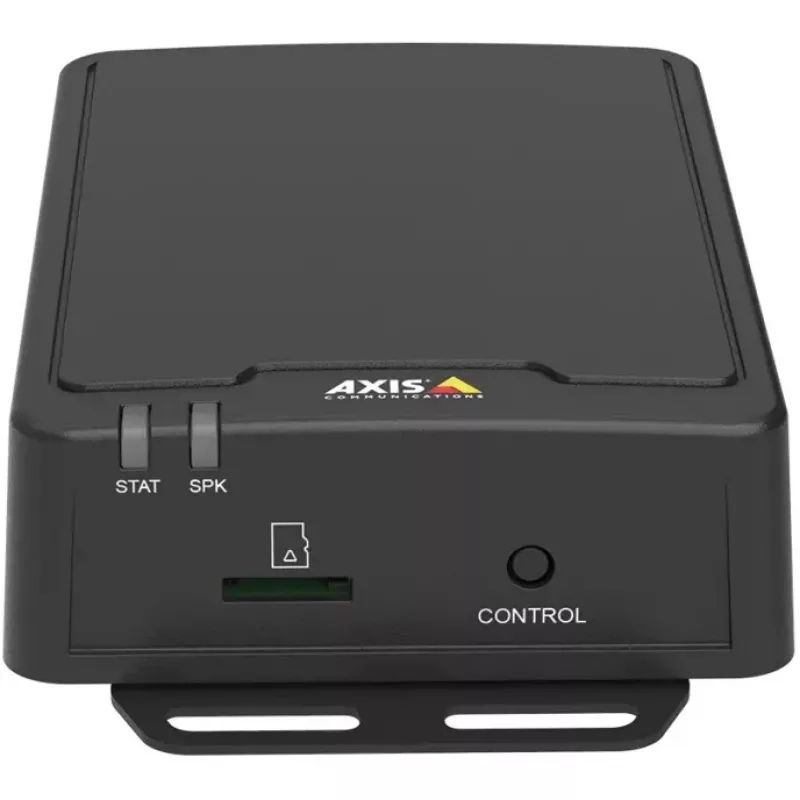

Audioversterker Axis 01558-001 zwart

AXIS C8210 Network Audio Amplifier (Axis 01558-001 Black) converts passive speakers into network speakers, enabling centralized management of announcements and background music. The compact audio amplifier delivers 15 W RMS power across a 20–20,000 Hz frequency range, supports 3.5 mm headphone output and connects to networks via 100 Mbit/s Ethernet, making it suitable for scalable audio installations and integration with systems such as VoIP and network cameras.

Advantages

The Axis 01558-001 provides a simple migration path from passive to networked audio without replacing existing speakers. Its compact form factor and standard Ethernet connectivity allow flexible placement and easy integration into existing network audio management systems. Certified to EN 55032 Class A and other applicable standards, it offers predictable performance in professional environments.

Suitable for

• Converting existing passive speakers to network speakers
• Background music distribution in small to medium spaces
• Public address announcements (live, scheduled, or triggered)
• Integration with VoIP systems and network cameras for synchronized audio

Key specifications

• Model: Axis 01558-001 (AXIS C8210)
• Output power: 15 W RMS
• Frequency response: 20–20,000 Hz
• Network: Ethernet 100 Mbit/s
• Audio output: 3.5 mm headphone connector
• Dimensions (W×D×H): 140 × 75 × 29 mm
• Weight: 0.257 kg
• Colour: Black
• Certifications: EN 55032 Class A (and other applicable standards)

How to use

Connect the Axis 01558-001 to your local network via the Ethernet port and attach the passive speaker to the amplifier output. Use 3.5 mm output only where appropriate. Configure zone management and audio sources using Axis audio management software or compatible network audio controllers. Test announcements and background music levels and adjust volume and equalization through the management interface before regular use.

Recommendations

Install the amplifier in a dry, ventilated location and ensure network and speaker cabling meet local installation standards. Use Axis audio management software for centralized control and schedule regular firmware updates to maintain compatibility and security.
