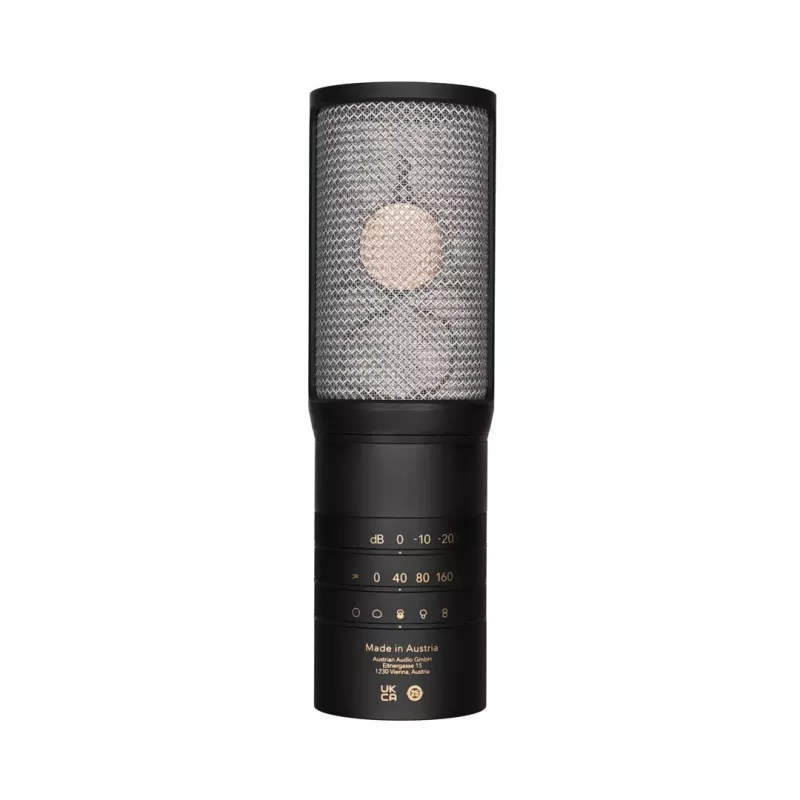

Austrian Audio OC-S10 Studio Set grootmembraan condensatormicrofoon

The Austrian Audio OC-S10 Studio Set is a professional large-diaphragm condenser microphone designed for studio recording, broadcasting, and live sound applications. Featuring the innovative CKR12 handmade ceramic capsule and Open Acoustics Technology, this microphone delivers exceptional clarity and detail. The OC-S10 offers dual XLR outputs for separate capsule recording, allowing you to capture both the front and rear signals independently for ultimate flexibility in post-production. With five selectable polar patterns (cardioid, omnidirectional, figure-8, hypercardioid, and custom via PolarDesigner plugin), a -10/-20 dB pad, and switchable high-pass filters at 40 Hz and 80 Hz, the OC-S10 adapts to any recording scenario. The studio set includes a spider mount, mic clip, mini XLR cable, windscreen, and a rugged carry case for safe transport.

Advantages

Handmade ceramic capsule ensures consistent, high-quality sound. Dual output capability provides unprecedented control over microphone polar patterns and stereo imaging. Open Acoustics Technology reduces internal reflections for a more natural sound. The included PolarDesigner plugin allows you to create custom polar patterns in your DAW.

Suitable for

• Studio vocal and instrument recording
• Podcasting and voice-over work
• Broadcasting and live sound reinforcement
• Field recording and sound design

Key specifications

• Microphone type: Large-diaphragm condenser
• Capsule: CKR12 handmade ceramic capsule
• Polar patterns: Cardioid, omnidirectional, figure-8, hypercardioid, custom (via PolarDesigner)
• Frequency response: 20 Hz - 20 kHz
• Sensitivity: 13 mV/Pa
• Maximum SPL: 158 dB SPL (with pad)
• Equivalent noise level: 9 dB SPL (A-weighted)
• Impedance: 275 Ohms
• Pad switch: -10 dB, -20 dB
• High-pass filter: 40 Hz, 80 Hz (2nd order)
• Connector: 2x 3-pin XLR (dual output)
• Power requirement: 48V phantom power (IEC 61938)
• Included accessories: OCS8 spider mount, OCH8 mic clip, OCC8 mini XLR cable, OCW8 windscreen, carry case

Recommendations

For best results, use the OC-S10 with a high-quality audio interface or mixer that provides 48V phantom power. Experiment with the dual outputs and PolarDesigner plugin to discover unique recording techniques. The microphone is ideal for critical studio applications where sound quality is paramount.
