AV-zender & -ontvanger VALUE 14.99.3464 zwart 40 m bereik

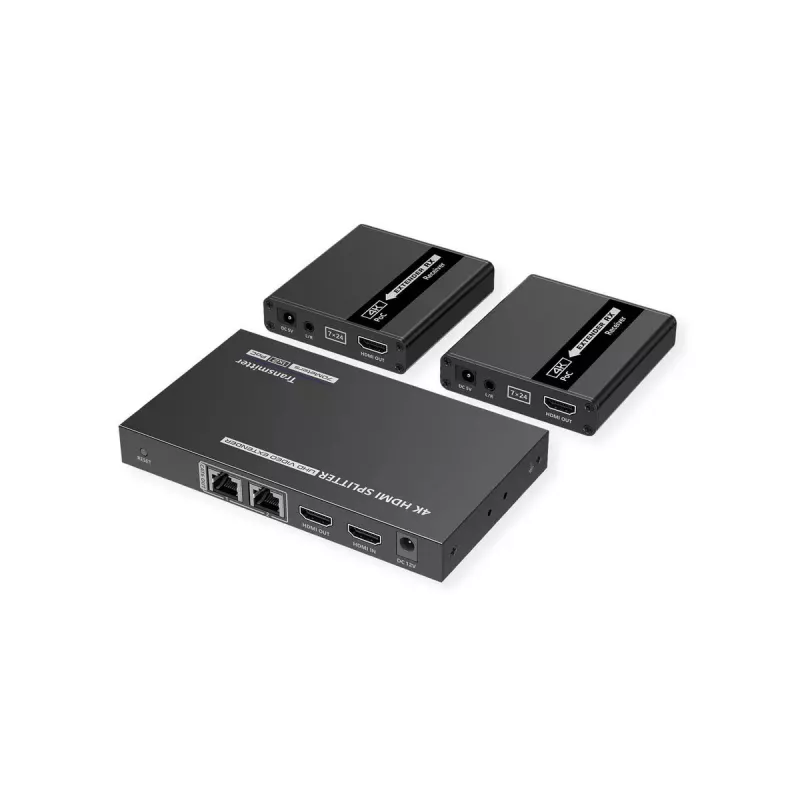

The VALUE 14.99.3464 is an AV transmitter and receiver set in black that extends HDMI signals over twisted pair cable up to 40 metres with support for resolutions up to 4K at 30Hz. The kit combines a transmitter and a receiver in compact housings and is designed to carry audio and video from a source to a remote display where direct HDMI cabling is impractical.

Advantages

This AV transmitter & receiver set supports extended cable runs up to 40 m using cost-effective twisted pair cabling, preserves up to 4K@30Hz video resolution, and provides separate compact units for source and display locations. The product is wired and simple to integrate into existing AV installations where a longer reach than standard HDMI is required.

Suitable for

• Extending HDMI signals from PCs, media players or set-top boxes to a remote monitor or TV
• Digital signage and information displays in retail, offices or public spaces
• Conference rooms and classrooms where displays are located away from the source

Key specifications

• Brand: VALUE
• Model / MPN: 14.99.3464
• EAN: 7630049626904
• Maximum transmission distance: up to 40 m via twisted pair cable
• Supported resolution: up to 4K at 30 Hz
• Connectivity: wired (HDMI over twisted pair)
• Transmitter dimensions: 151.5 x 86.5 x 19 mm
• Receiver dimensions: 75 x 80 x 18 mm
• Colour: Black

How to use

Connect the transmitter unit to the HDMI source (PC, media player, set-top box) and the receiver unit to the display using HDMI cables. Link the transmitter and receiver with a suitable twisted pair cable of appropriate category and length (up to 40 m). Power both units as required by the product’s power input specifications and verify the display’s input is set to the connected HDMI port. Adjust source resolution to a supported mode if required (up to 4K@30Hz).

Recommendations

For reliable performance, use good-quality shielded twisted pair cable and keep cable runs within the specified maximum distance. If encountering signal issues at higher resolutions, try a shorter cable or lower the output resolution to 1080p to verify connectivity.
