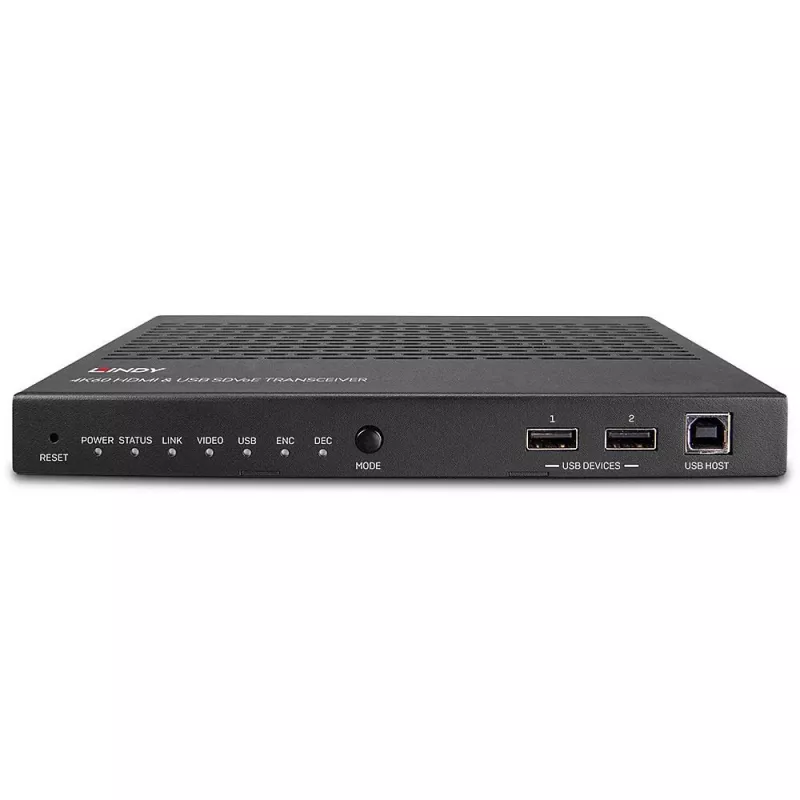

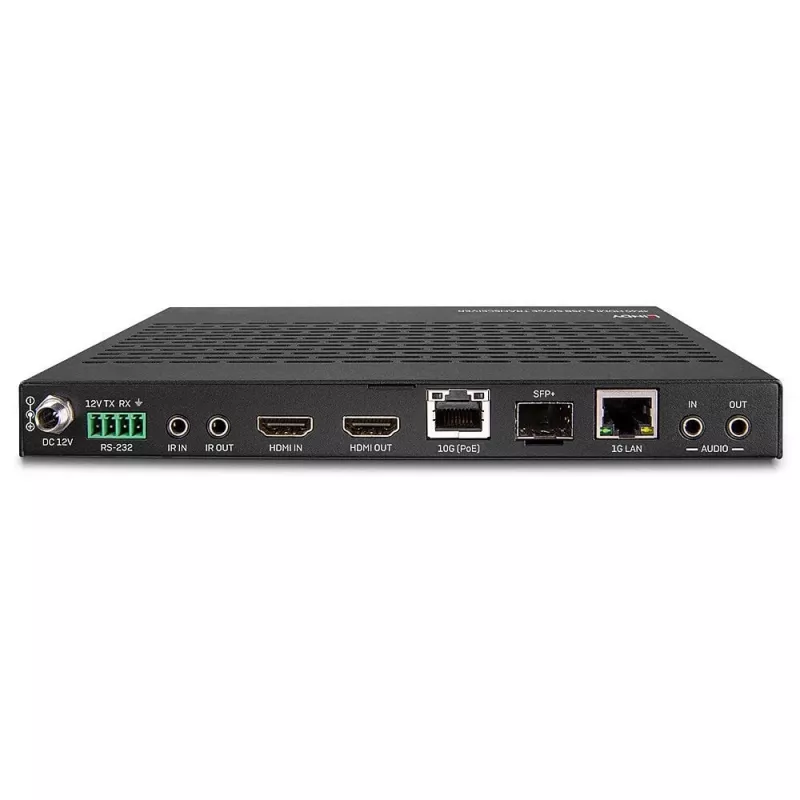

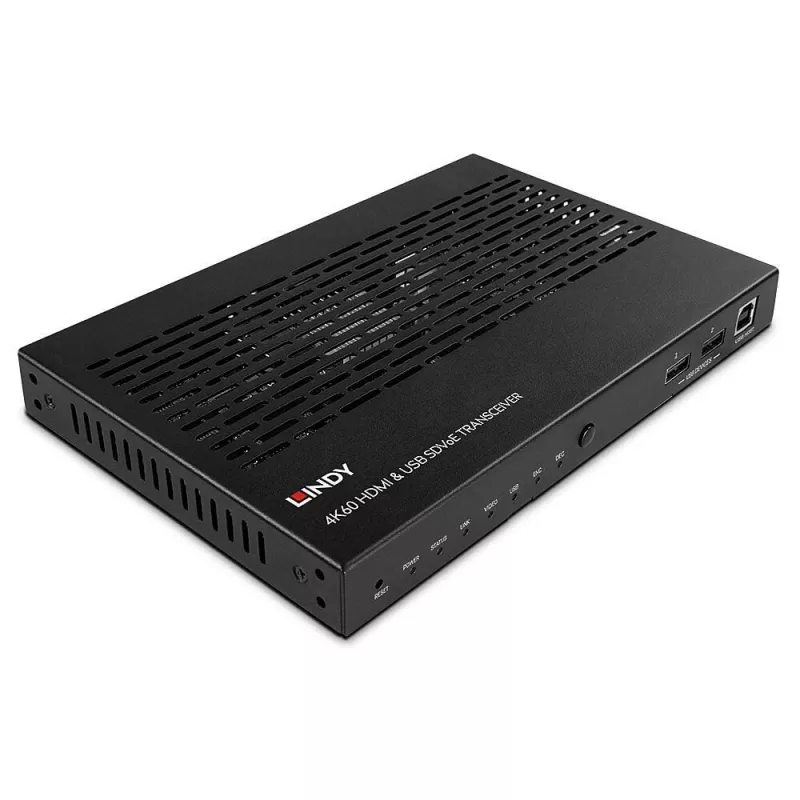

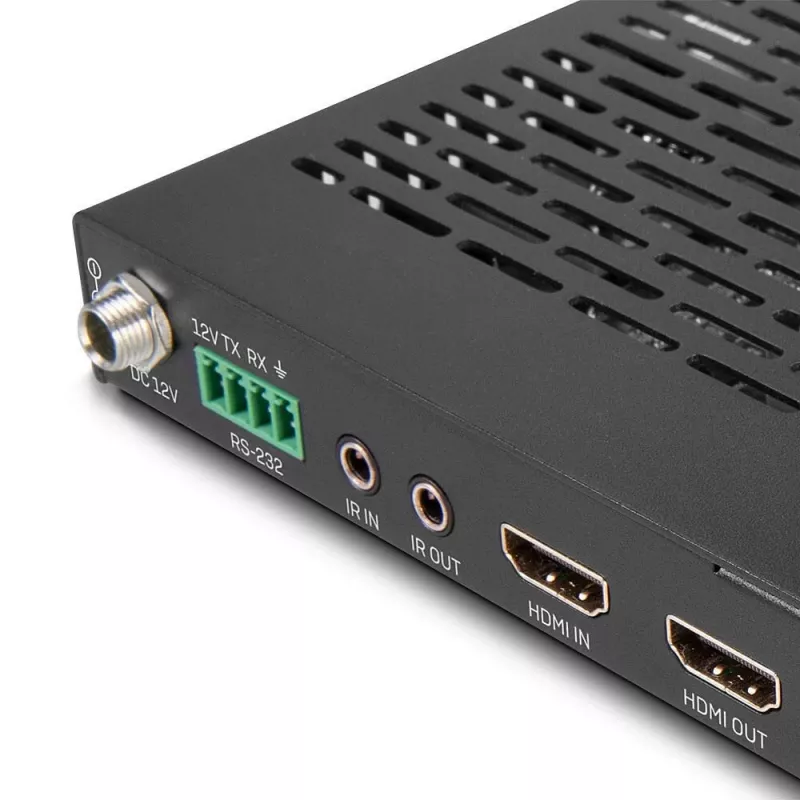

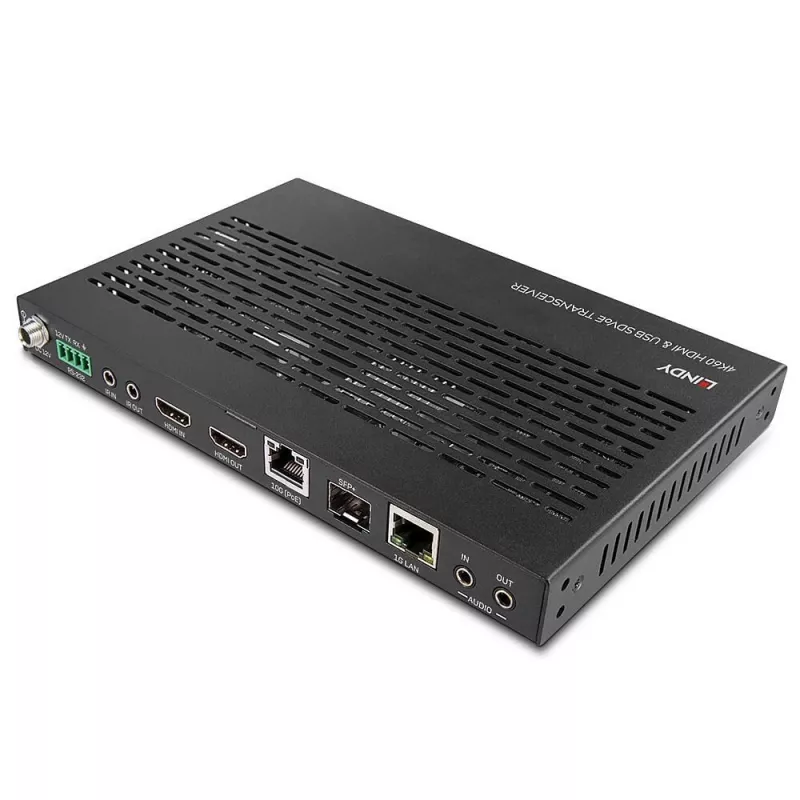

AV-zender Lindy 4K60 HDMI en USB SDVoE-transceiver

The Lindy 4K60 HDMI and USB SDVoE Transceiver is an AV transmitter designed for distribution of uncompressed 4K60 video, USB, audio, IR and RS-232 signals over a 10G network. It supports HDMI 2.0b and SFP+ connectivity and can be configured as an encoder or decoder within an SDVoE installation. The unit accepts copper Cat6 (or above) cabling for up to 100 m or an SFP+ fibre module (not included) for longer or fibre-based links, and requires a 10 Gigabit network to operate.

Advantages

This transceiver delivers uncompressed 4K Ultra HD (3840 x 2160) at 60 Hz with HDR support for improved brightness and contrast. It provides low-latency, high-quality AV over IP using SDVoE standards and supports multicast features including seamless switching, video wall configurations up to 9x9 and multiview with up to 25 windows. Device management is available via the Lindy SDVoE Controller web interface or any compatible SDVoE controller with API support. Additional features include bi-directional IR, USB 2.0 for HID devices, 3.5 mm analog stereo audio embedding/extraction, RS-232 control and PoE compatibility.

Suitable for

• Professional AV distribution in conference rooms and auditoriums
• Video wall installations and digital signage
• Control-room and command-centre multiview setups
• Remote KVM/USB device extension (mouse, keyboard, HID)

Key specifications

• Type: AV transmitter
• Maximum resolution: 3840 x 2160 (4K Ultra HD) at 60 Hz
• HDMI inputs / outputs: 1 HDMI in, 1 HDMI out
• Network: 10G SDVoE over Cat6 (up to 100 m) or SFP+ fibre module (not included)
• USB: USB 2.0 (bi-directional) for HID devices
• Audio: 3.5 mm analog stereo (embed/extract)
• Control: IR (bi-directional), RS-232
• Power: 12 V DC, 1 A; supports PoE
• Dimensions (W x D x H): 204 x 134 x 21.5 mm
• Weight: 0.98 kg
• Colour: Black

How to use

Install the transceiver as either an encoder or decoder in your SDVoE network and connect it to a 10G network switch using Cat6 (or above) cable for copper connections, or insert a compatible SFP+ fibre module for fibre links (SFP+ not included). Connect HDMI, USB and audio devices to the respective ports. Configure routing, video wall and multiview layouts using the Lindy SDVoE Controller web interface or a third-party SDVoE controller with API support. Ensure the switch and network infrastructure provide 10 Gigabit bandwidth for correct operation.

Recommendations

Use high-quality Cat6 or Cat6a cables for copper connections and verify 10G switch compatibility. For long-distance or fibre-based links use a compatible SFP+ module. Reserve sufficient network capacity for uncompressed 4K streams, and manage the system with the Lindy SDVoE Controller or an API-capable SDVoE management platform to enable preview and drag-and-drop setup.
