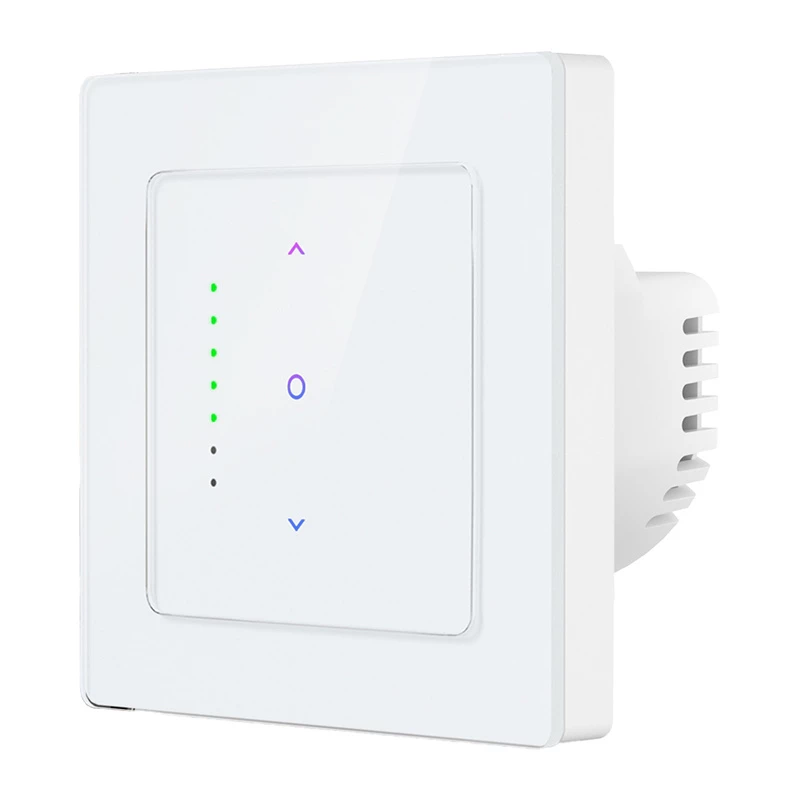

Avatto CS20-EU-W WiFi aanraakgevoelige slimme rolluikschakelaar

The Avatto CS20-EU-W stands out with its touch-sensitive tempered glass panel, offering a sleek and modern alternative to traditional mechanical shutter switches. It brings your existing roller shutters into the smart home ecosystem without replacing the entire shutter mechanism.

Highlights

• Wi-Fi connectivity (2.4 GHz) for direct control without a separate hub
• Touch panel with LED indicators for intuitive manual operation
• Voice control compatibility with Amazon Alexa and Google Home
• Timer, schedule, and group control via Tuya Smart or Smart Life app
• Shutter calibration for precise positioning

In daily use

Control your roller shutters from anywhere using your smartphone, or simply touch the glass panel on the wall. Set schedules to automatically open or close shutters at sunrise or sunset, and group multiple shutters for simultaneous control. The switch requires a neutral wire and fits standard EU wall boxes.

Full specifications

• Connectivity: Wi-Fi IEEE 802.11 b/g/n, 2.4 GHz
• Control methods: Touch panel, mobile app, voice control
• App compatibility: Tuya Smart, Smart Life
• Voice assistants: Amazon Alexa, Google Home
• Input voltage: AC 100-240V, 50/60 Hz
• Max load current: 3A
• Standby power consumption: <0.5W
• Panel material: Tempered glass
• Housing material: PC V0 fire-retardant
• Operating temperature: -20°C to 50°C
• Operating humidity: <90% RH
• Mounting: Wall mount, EU standard
• Neutral wire required: Yes
• Features: Timer, schedule, group control, device sharing, shutter calibration
• LED indicator: Yes (for touch buttons)
• Colour: White
• Certifications: CE, RoHS

Final note

The Avatto CS20-EU-W combines elegant design with practical smart features, making it a reliable choice for modernizing your roller shutter control.
