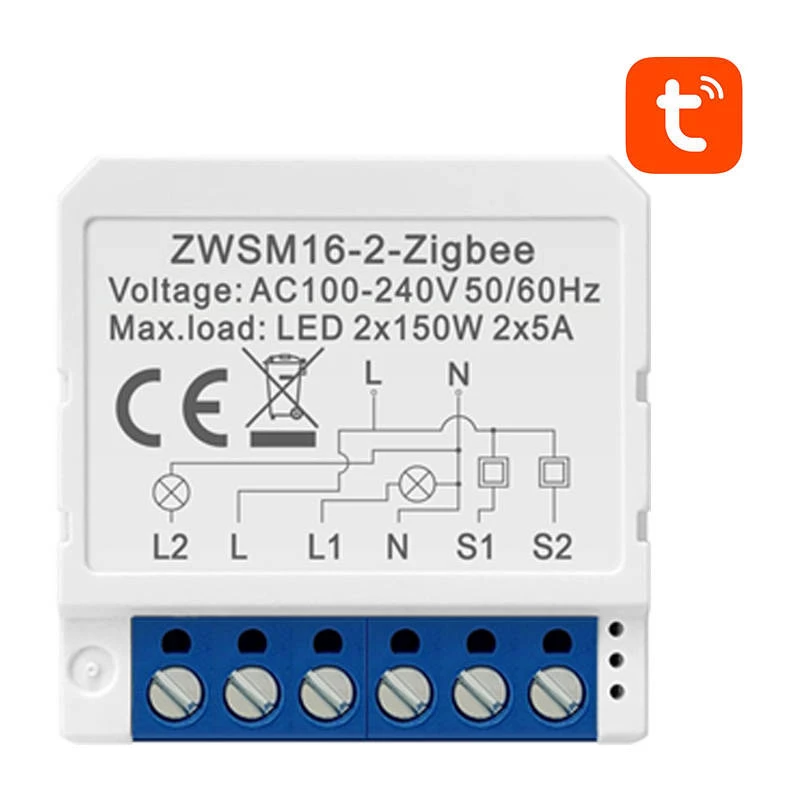

AVATTO ZWSM16-W2 ZigBee Slimme schakelmodule, Tuya

The Avatto ZWSM16-W2 is a 2-channel in-duct smart switch module that lets you control your lighting remotely via the TUYA / Smart Life app or with voice assistants Amazon Alexa and Google Assistant. It supports the ZigBee 3.0 communication protocol and requires a ZigBee gateway (sold separately) for correct operation. The module is compact and easy to install, and it allows you to create schedules, timers, and automations.

Key features

• 2-channel in-duct switch module
• Remote control via TUYA / Smart Life app
• Voice control with Amazon Alexa and Google Assistant
• Supports ZigBee 3.0 (gateway required, sold separately)
• Create operating schedules, timers, and automations
• Group switches and share devices with other household members
• Interlock function available
• Remembers last settings and restores them after power failure
• Compact design fits up to 95% of installation boxes on the market
• Can be attached to a lamp
• Two switches can operate a single lamp

Specifications

• Brand: Avatto
• Model: ZWSM16-W2
• Colour: White
• Number of channels: 2
• Voltage: AC 100-240 V 50/60 Hz
• Max. load LED: 2 x 150 W / 2 x 5 A
• Operating frequency: 2.405-2.480 GHz IEEE 802.15.4
• Operating temperature: -10°C to 40°C
• Communication protocol: ZigBee 3.0
• Range: Up to 100 m
• Dimensions: 39 x 39 x 20 mm
• Degree of protection: IP20
• App: TUYA / Smart Life
• Compatibility: Amazon Alexa, Google Home
