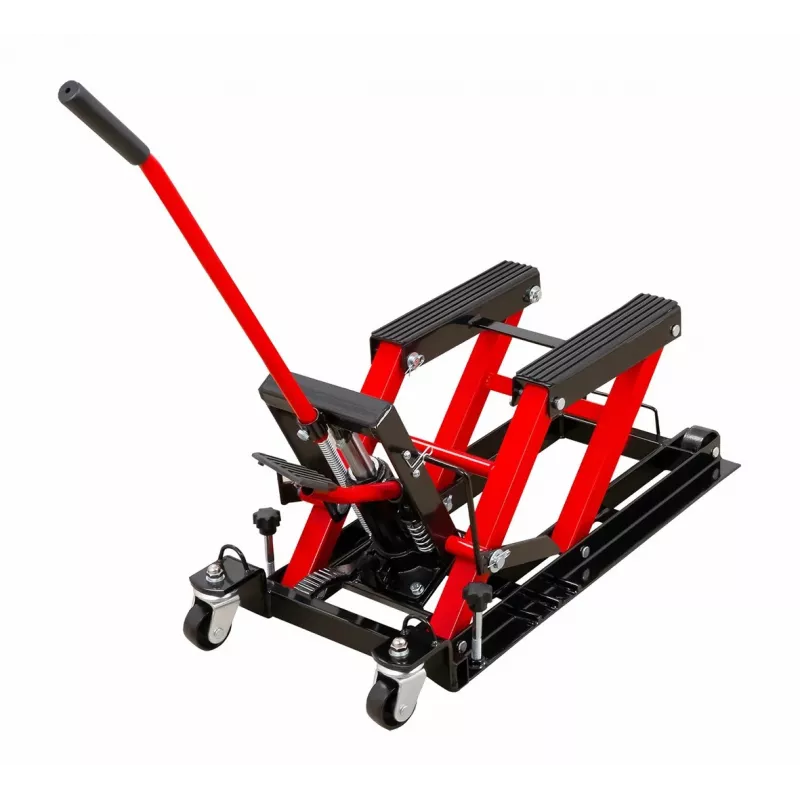

AWTOOLS hydraulische ATV-/motorheffer 115-358mm 680kg

Unlike standard motorcycle lifts that struggle with low-clearance frames or lack stability under heavy loads, the AWTOOLS Hydraulic ATV/Motorcycle Lift combines a 680 kg capacity with a compact collapsed height of just 120 mm, making it ideal for everything from dirt bikes to small ATVs. Its foot-pedal hydraulic operation raises the platform smoothly from 115 mm to 358 mm, while three safety locking bars provide secure positioning at multiple heights.

Highlights

• 680 kg maximum load capacity for motorcycles, ATVs, and small vehicles
• Hydraulic scissor lift with foot pedal operation – no external power needed
• 3-position safety locking bars for secure height adjustment
• Low profile: collapsed height only 120 mm, min lifting height 115 mm
• Heavy-duty steel construction with rubber-padded platform
• Swivel caster wheels and T-handle for easy positioning
• Twist valve release for controlled lowering

In daily use

Roll the lift under your vehicle using the T-handle and swivel casters, then step on the pedal to raise the platform. The rubber pads protect the frame from scratches while providing a stable grip. Once at the desired height, engage one of the three safety locking bars to hold the load securely. To lower, simply twist the release valve – the hydraulic system ensures a smooth, controlled descent. The compact design stores easily in a garage or workshop.

Full specifications

• Lift type: Hydraulic scissor lift
• Max load capacity: 680 kg (1500 lbs)
• Min lifting height: 115 mm
• Max lifting height: 358 mm
• Operation method: Foot pedal
• Safety features: 3-position safety locking bars
• Platform material: Heavy-duty steel with rubber pads
• Platform dimensions: 310 x 300 mm
• Overall length (collapsed): 890 mm
• Overall width (collapsed): 450 mm
• Overall height (collapsed): 120 mm
• Mobility: Swivel caster wheels
• Handle type: T-handle for positioning
• Release mechanism: Twist valve
• Construction material: Robust steel
• Color: Red/Black
• Application: Motorcycles, ATVs, dirt bikes, small vehicles

Final note

Built for the workshop or home garage, this lift delivers reliable lifting power with a footprint that won't get in the way.
