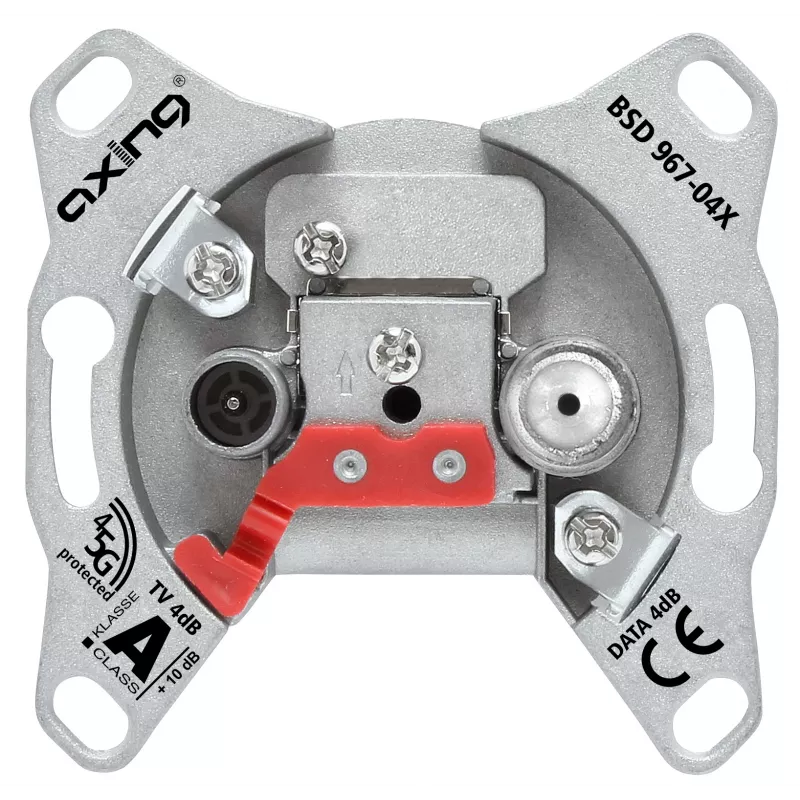

AXING BSD 967-04X multimedia-abonneedooos 4dB 5-1800MHz DOCSIS 3.1/4

The AXING BSD 967-04X is a high-performance multimedia subscriber outlet designed for modern broadband networks. With DOCSIS 3.1 and 4.0 readiness, it supports the latest cable internet standards, ensuring future-proof connectivity for TV, radio, and data services. The 4 dB tap loss and wide frequency range from 5 to 1800 MHz make it ideal for star-wired networks in residential and commercial installations.

Advantages

This outlet offers exceptional shielding effectiveness (Class A+ >100 dB) to minimize interference, ensuring reliable signal quality. Its three outputs (TV, radio, data) provide flexible connection options, while the flush-mount design allows for discreet installation. The die-cast zinc chassis guarantees durability and long-term performance.

Suitable for

• Multimedia distribution in single-family homes and apartments
• Star-wired broadband networks with DOCSIS 3.1/4.0 infrastructure
• Professional installations requiring high shielding and low signal loss

Key specifications

• Product Type: Multimedia Subscriber Outlet
• Attenuation (Tap Loss): 4 dB
• Frequency Range: 5-200 MHz (return), 258-1800 MHz (forward)
• DOCSIS Compatibility: 3.1 / 4.0 Ready
• Number of Outputs: 3 (TV, Radio, Data)
• Connectors: TV IEC Male, Radio IEC Female, Data F-connector
• Shielding Effectiveness: Class A+ (>100 dB)
• Impedance: 75 Ohm
• Mounting Type: Flush-mount
• Housing Material: Die-cast zinc, plastic cover
• Operating Temperature: -20 to +50 °C

Recommendations

For optimal performance, pair this outlet with high-quality coaxial cables and ensure proper termination. Ideal for new installations or upgrades to DOCSIS 3.1/4.0 networks.
