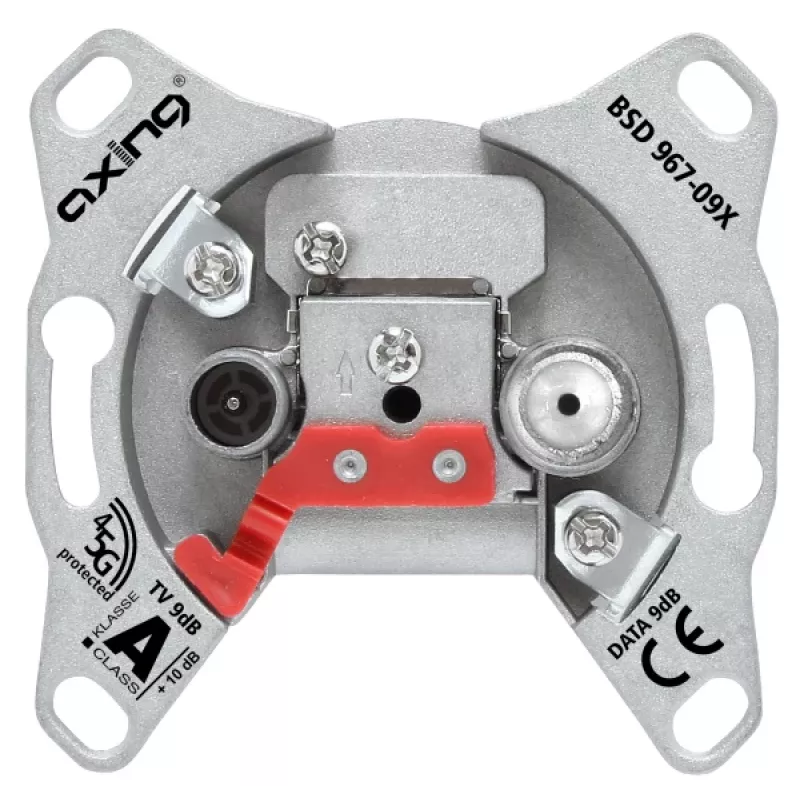

AXING BSD 967-09X multimedia einddoos 9dB 5-1800MHz DOCSIS 3.1/4.0

The AXING BSD 967-09X is a high-performance multimedia terminal outlet designed for modern HFC networks. It supports DOCSIS 3.1 and 4.0 standards, ensuring compatibility with the latest broadband technologies. With a frequency range of 5-1800 MHz and a tap loss of 9 dB, it delivers reliable signal distribution for TV, radio, and data services.

Advantages

This outlet offers excellent shielding effectiveness of >100 dB, minimizing interference. Its flush-mount design allows for discreet installation. The three outputs (TV, Radio, Data) provide flexibility for various multimedia setups.

Suitable for

• HFC networks
• Cable TV and broadband internet installations
• Residential and commercial multimedia distribution

Key specifications

• Attenuation: 9 dB
• Frequency range: 5 - 1800 MHz
• DOCSIS compatibility: 3.1, 4.0
• Impedance: 75 Ohm
• Connectors: TV (IEC male), Radio (IEC female), Data (F-connector female)
• Installation: Flush-mount

Recommendations

For optimal performance, pair with AXING compatible wall plates and cables. Ensure proper termination of unused ports to maintain signal integrity.
