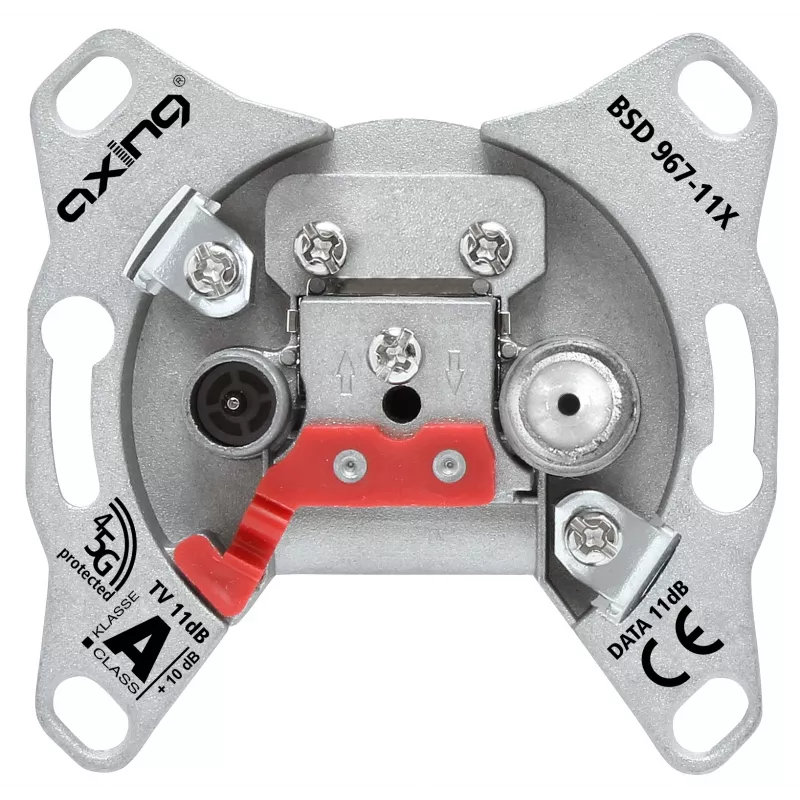

AXING BSD 967-11X multimedia doorgangsdoos 11dB 5-1800MHz DOCSIS 3.1/4

The AXING BSD 967-11X is a high-performance multimedia through-outlet socket designed for modern broadband networks. It supports DOCSIS 3.1 and 4.0 standards, ensuring compatibility with the latest cable internet and TV services. With an attenuation of 11 dB and a frequency range of 5-1800 MHz, this socket delivers reliable signal distribution for TV, radio, and data applications. The flush-mount design allows for discreet installation, and the three outputs (TV, radio, data) provide flexible connectivity options.

Advantages

• Supports DOCSIS 3.1 and 4.0 for future-proof networking
• High shielding effectiveness (>100 dB) minimizes interference
• DC passage via data port for powering external devices
• Easy flush-mount installation for a clean look

Suitable for

• Residential and commercial multimedia installations
• CATV and broadband internet networks
• TV, radio, and data signal distribution

Key specifications

• Product Type: Multimedia Through-Outlet Socket
• Attenuation (Tap Loss): 11 dB
• Frequency Range: 5 - 1800 MHz
• Return Path: 5 - 204 MHz
• Forward Path: 258 - 1800 MHz
• DOCSIS Compatibility: 3.1 / 4.0
• Number of Outputs: 3
• Output 1: TV (IEC Male)
• Output 2: Radio (IEC Female)
• Output 3: Data (F-Connector)
• Through Loss: 2.5 dB
• Shielding Effectiveness: > 100 dB
• DC Passage: Yes, via Data Port
• Mounting Type: Flush-mount
• Impedance: 75 Ohm

Recommendations

For optimal performance, use with high-quality coaxial cables and ensure proper termination. Ideal for upgrading existing installations to support DOCSIS 3.1/4.0.
