AXING CFS09348 F-type compressiestekker male roestvrij staal 50 stuks

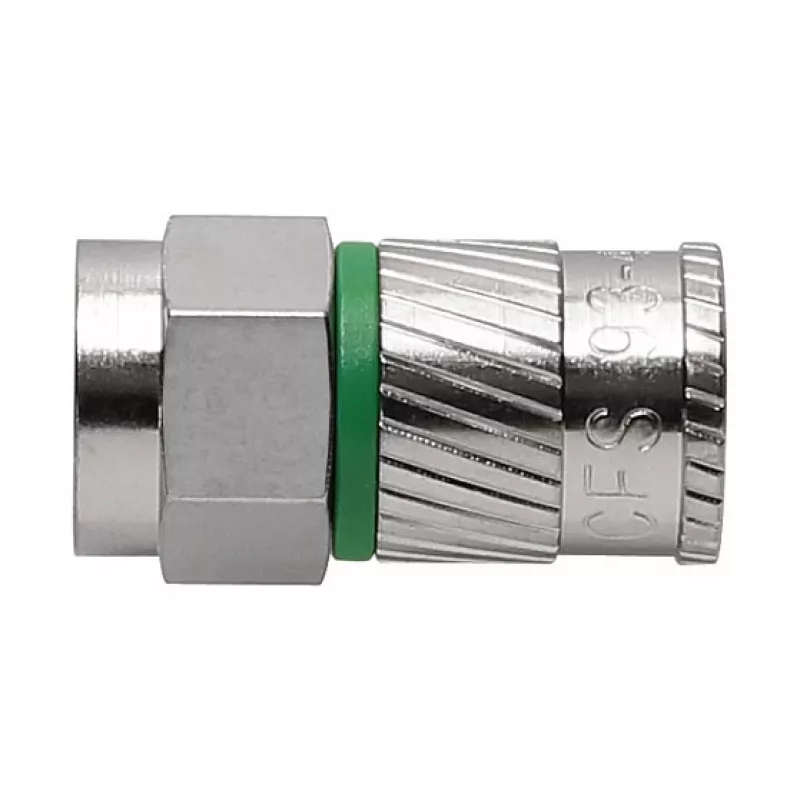

The AXING CFS09348 is a high-quality F-Type compression connector designed for professional installation of RG6 coaxial cables. Made from durable stainless steel, this male connector ensures excellent corrosion resistance and reliable signal transmission for satellite and terrestrial TV systems. Each pack contains 50 pieces, ideal for bulk installations.

Advantages

Stainless steel construction provides superior durability and weather resistance compared to standard connectors. The compression design ensures a secure, watertight connection without soldering, reducing installation time and improving reliability. With shielding effectiveness >100 dB and return loss >25 dB, signal integrity is maintained even in challenging environments.

Suitable for

• DVB-S/S2 satellite systems
• DVB-T/T2 terrestrial TV
• DVB-C cable TV networks
• RG6 coaxial cable installations
• Outdoor and indoor applications requiring corrosion resistance

Key specifications

• Connector Type: F-Type Male
• Connection Method: Compression
• Cable Compatibility: RG6 Coaxial Cable
• Material: Stainless Steel
• Impedance: 75 Ohm
• Frequency Range: 0 - 3000 MHz
• Shielding Effectiveness: > 100 dB
• Insertion Loss: < 0.1 dB
• Return Loss: > 25 dB
• Weather Resistance: UV and Corrosion Resistant
• Operating Temperature: -40°C to +60°C
• Quantity per Pack: 50 pieces
• Color: Silver

Recommendations

For optimal performance, use with a compatible compression tool. Ensure cable preparation follows manufacturer guidelines to achieve a proper seal and maximum signal quality.
