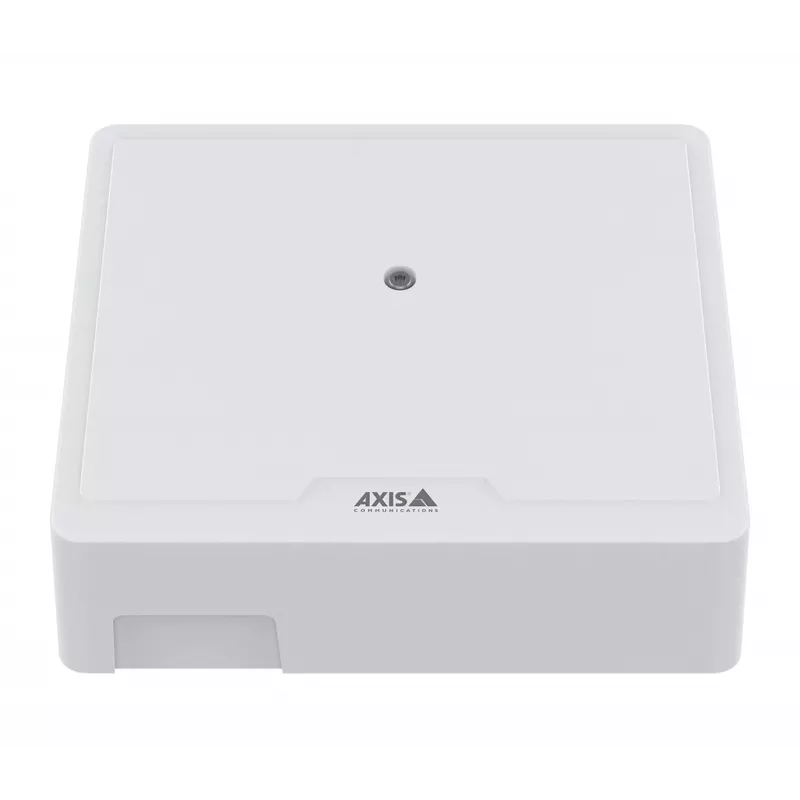

Axis 02368-001 beveiligingsdeurcontroller 1 deur 512 MB RAM 2 GB flash

Axis 02368-001 security door controller is a compact, wall-mountable controller for single-door access control. Designed for easy and fast installation, it is plenum-rated and integrates into Axis end-to-end systems. The controller is powered by a single Power over Ethernet (PoE) cable and features edge intelligence to manage door access locally if the network is unavailable. Built-in cybersecurity functions help prevent unauthorized access while supporting flexible authentication using various credential types.

Advantages

The controller provides a complete one-door solution with all necessary components included and operates from a single PoE cable, reducing cabling complexity. Its edge-based intelligence ensures uninterrupted door control during network outages. Small dimensions (144 mm × 122 mm × 50 mm) and a competitive price make it suitable for a wide range of installations, from small sites to scalable large deployments. Integrated cybersecurity measures protect the system and stored credentials.

Suitable for

• Single-door access control in offices and retail
• Wall-mounted installations and plenum spaces
• Small to large, scalable Axis access control systems

Key specifications

• Model: Axis 02368-001
• Doors supported: 1
• Memory: 512 MB RAM
• Storage: 2 GB flash
• Power: 12 V DC (range 11.5–12.5 V) or PoE
• Dimensions: 144 mm (W) × 122 mm (D) × 50 mm (H)
• Brand: AXIS
• MPN: 02368-001
• EAN: 7331021076488

How to use

Mount the controller on a wall or install it in a plenum-rated location. Connect the device to network and power using a single PoE cable or supply 12 V DC within the stated voltage range. Integrate the controller into the Axis access control solution and configure authentication methods and policies through the Axis management interface. The controller will manage local door operations and credential validation, continuing to operate if network connectivity is lost.

Recommendations

Install the controller in a dry, ventilated area and follow Axis installation guides for cable routing and grounding. Regularly update firmware and use recommended Axis management tools to maintain cybersecurity and system integrity.
