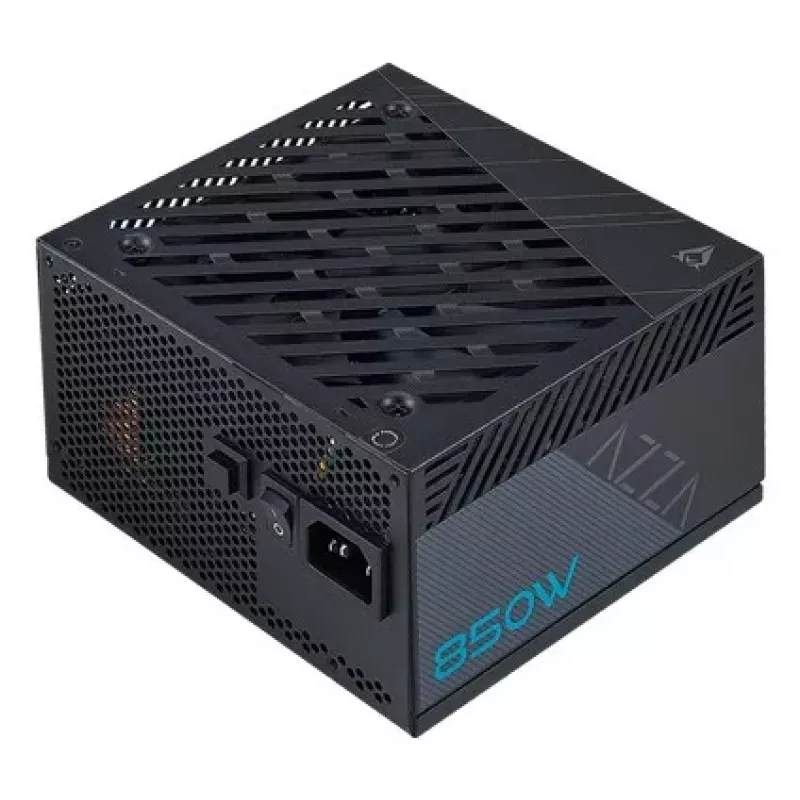

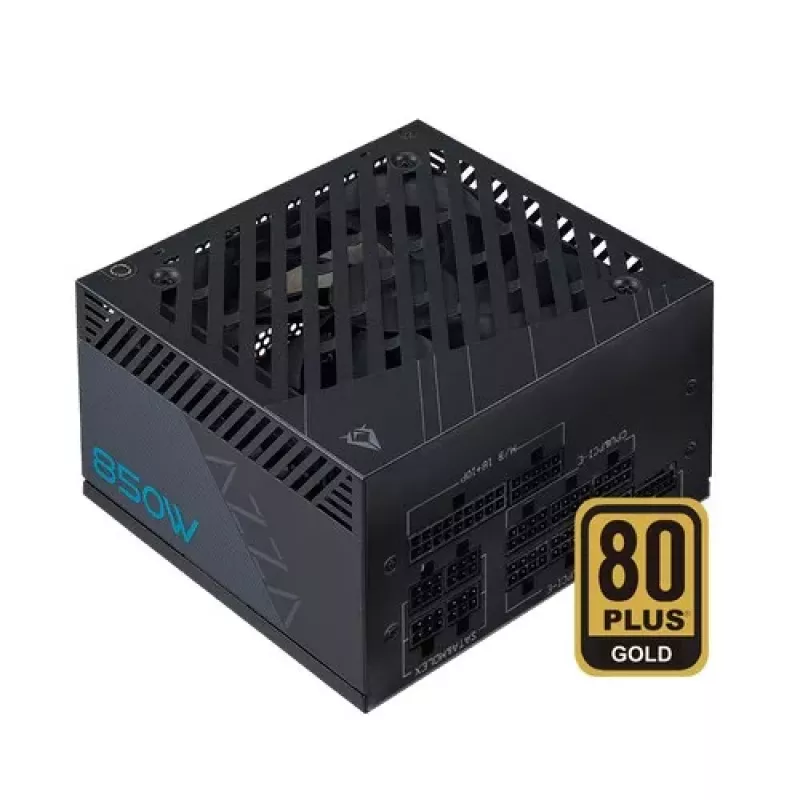

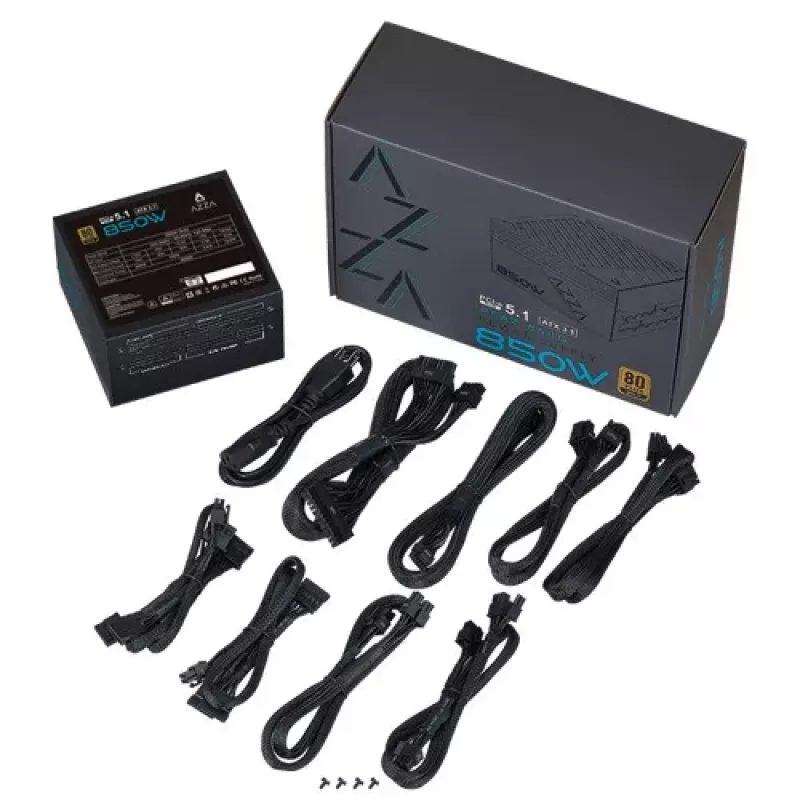

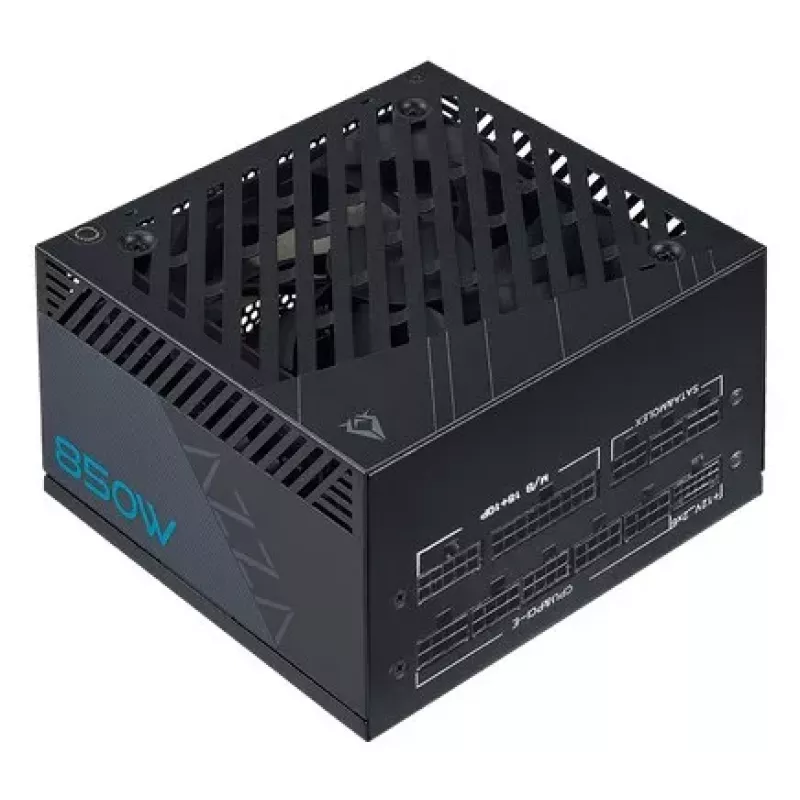

AZZA PSAZ-850G 850W volledig modulaire ATX 3.1 PCIe 5.1 80+ Gold voeding

The AZZA PSAZ-850G is a high-performance 850W power supply designed for demanding PC builds. With 80 PLUS Gold efficiency, fully modular cabling, and support for ATX 3.1 and PCIe 5.1 standards, it delivers stable, reliable power for gaming rigs, workstations, and servers. Equipped with 100% Japanese capacitors and a 120mm fluid dynamic bearing fan, this PSU ensures long-term durability and quiet operation.

Advantages

Fully modular design allows for clean cable management and improved airflow. The 80 PLUS Gold certification guarantees up to 90% efficiency under typical loads, reducing energy waste and heat output. Advanced protection features (OVP, OPP, SCP, OCP, UVP, OTP) safeguard your components. The 7-year warranty provides peace of mind.

Suitable for

• High-end gaming PCs with multiple GPUs
• Content creation workstations
• Home servers and NAS systems
• Custom PC builds requiring clean aesthetics

Key specifications

• Power Output: 850 W
• Efficiency: 80 PLUS Gold
• Form Factor: ATX
• Modularity: Fully Modular
• Fan: 120 mm Fluid Dynamic Bearing
• PFC: Active PFC
• Input Voltage: 100-240 V AC
• Input Frequency: 50/60 Hz
• MTBF: 100,000 hours
• Protections: OVP, OPP, SCP, OCP, UVP, OTP
• Main Power Connector: 1x 24-Pin ATX
• CPU Power Connectors: 2x 4+4-Pin EPS/ATX12V
• PCIe Power Connectors: 6x 6+2-Pin PCIe
• SATA Power Connectors: 8x SATA
• Peripheral Power Connectors: 4x 4-Pin Molex
• Capacitor Type: 100% Japanese Capacitors
• Operating Temperature: 0 - 40 °C
• Safety Certifications: CE, FCC, TUV, cTUVus, RCM, CB, CCC, EAC, RoHS

Recommendations

For optimal performance, pair this power supply with a modern ATX 3.0 or 3.1 compatible motherboard and PCIe 5.0 graphics cards. Ensure your case supports ATX PSU mounting. The fully modular cables make installation easy even in compact cases.
