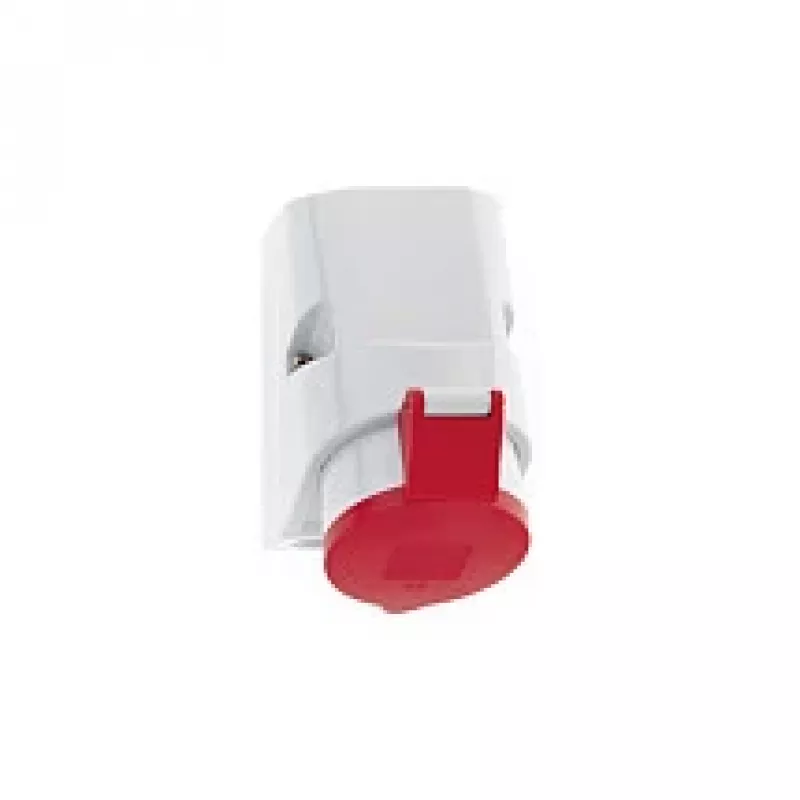

BALS CEE wandstopcontact 5x32A 400V IP44 6H Quick Connect 11962

For demanding industrial power distribution, the BALS CEE wall socket stands apart with its screwless Quick Connect terminals, cutting installation time dramatically compared to traditional screw-type sockets. This 5-pole (3P+N+PE) 32 A, 400 V socket is built to EN 60309-1/2 standards, delivering reliable, splash-proof performance in workshops, construction sites, and outdoor installations.

Highlights

• 32 A current rating and 400 V voltage for heavy-duty equipment
• 5 poles (3P+N+PE) with 6h earth contact position for safe, standardized connections
• IP44 protection against splashing water and solid objects over 1 mm
• Quick Connect screwless terminals for fast, tool-free wiring
• Robust polyamide housing with IK08 impact resistance
• Wall-mounting design with 100 x 100 mm flange and 85 x 85 mm fixing holes

In daily use

The red housing is instantly recognizable on any site, and the 6h position prevents mismating with different voltage/frequency systems. The Quick Connect terminals accept solid or stranded conductors without ferrules, saving valuable time during installation or replacement. The IP44 rating ensures safe operation even in damp or dusty environments, while the polyamide material resists chemicals and UV exposure for long service life.

Full specifications

• Brand: BALS
• Model: 11962
• MPN: 11962
• EAN: 4024941119627
• Product type: CEE wall socket
• Current rating: 32 A
• Voltage rating: 400 V
• Number of poles: 5 (3P+N+PE)
• Frequency: 50/60 Hz
• Hour position: 6h
• Protection class: IP44
• Connection technology: Quick Connect (screwless terminals)
• Mounting type: Wall-mounted
• Housing material: Polyamide
• Contact material: Brass
• Colour: Red
• Standards compliance: EN 60309-1, EN 60309-2
• Flange dimensions: 100 x 100 mm
• Fixing hole spacing: 85 x 85 mm
• Temperature range: -25°C to +40°C
• Impact resistance: IK08

Final note

Choose the BALS CEE wall socket for fast, reliable, and code-compliant power connections in any industrial setting.
