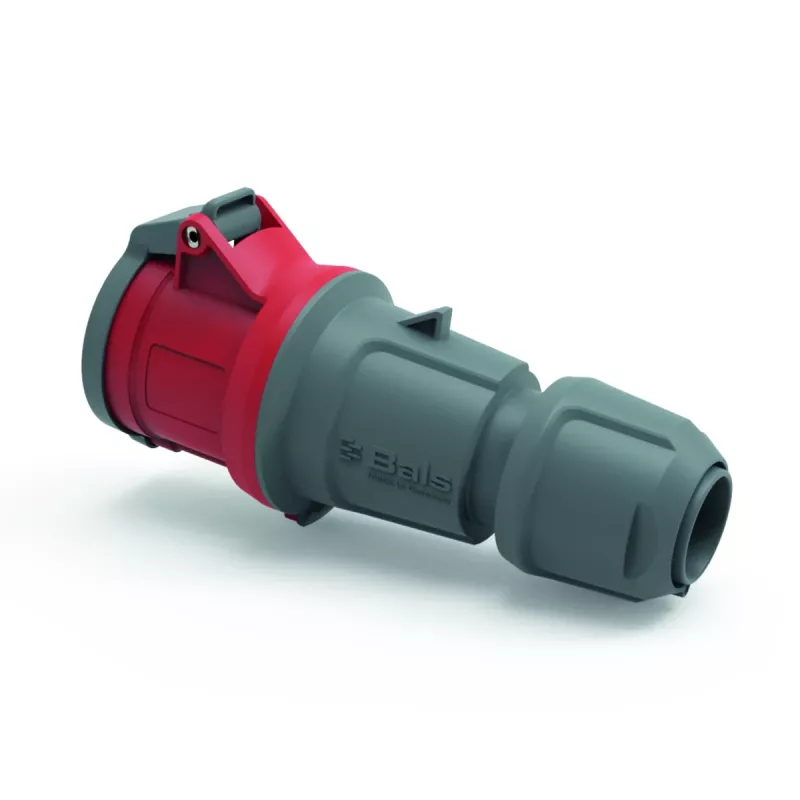

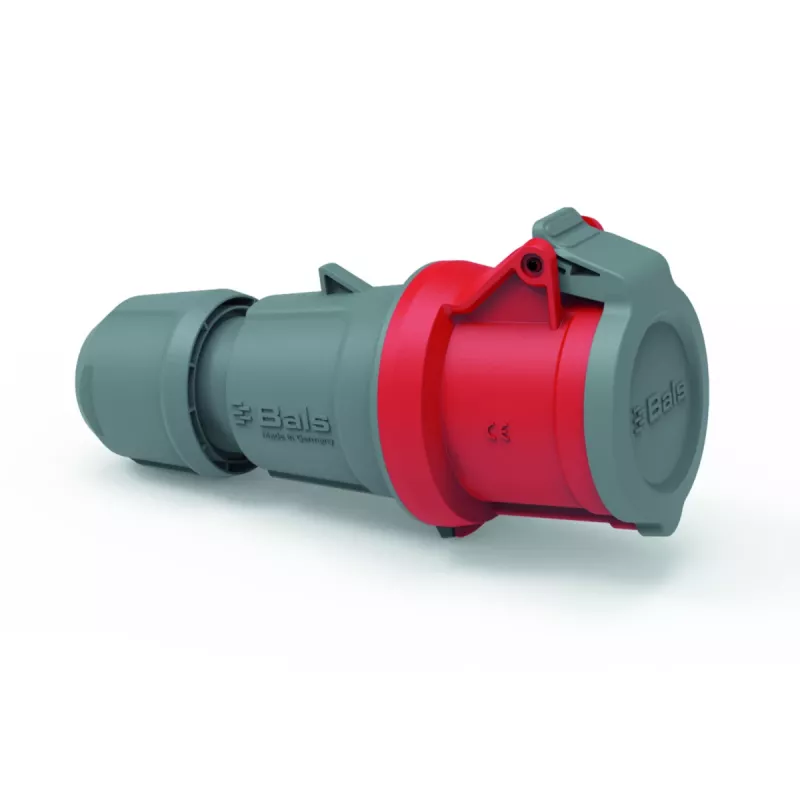

Bals INNOLINQ QC 32A 5-polig 400V 6h IP54 rode industriekoppeling

In industrial power distribution, unreliable connections lead to costly downtime and safety hazards. The Bals INNOLINQ QC 32A coupling solves this by providing a robust, quick-connect solution for 400V 5-pole circuits. Its red housing and 6h earth position ensure correct phase alignment, while IP54 protection guards against dust and splashing water. Ideal for workshops, construction sites, and event power, this coupling delivers secure, tool-free connections every time.

Who is it for

Electricians, maintenance technicians, and facility managers who need a dependable, fast-connecting power coupling for industrial equipment, generators, and distribution boards. Suitable for both permanent installations and temporary power setups where safety and speed are critical.

Main features

• 32A current rating for high-power applications
• 400V, 5-pole (3P+N+PE) configuration with 6h earth position
• Quick Connect screwless technology for fast, secure wiring
• IP54 ingress protection against dust and water splashes
• Red housing for easy identification of 400V 3-phase circuits
• Durable high-grade plastic housing with brass contacts

Specifications

• Series: INNOLINQ QC
• Current rating: 32 A
• Voltage rating: 400 V
• Number of poles: 5 (3P+N+PE)
• Earth contact position: 6h
• Frequency: 50/60 Hz
• Connection technology: Quick Connect (screwless)
• Housing material: High-grade plastic
• Contact material: Brass
• Cable cross-section range: 2.5 - 10 mm²
• Operating temperature: -25°C to +40°C
• Standards: IEC 60309-1, IEC 60309-2
• Dimensions (H x W x D): 205 x 80 x 105 mm

Tips

Always verify the earth contact position (6h) matches your socket to ensure correct phase rotation. For outdoor use, pair with a compatible IP54 or higher rated connector to maintain protection. Use the Quick Connect terminals with the recommended cable cross-section to avoid loose connections and overheating.
