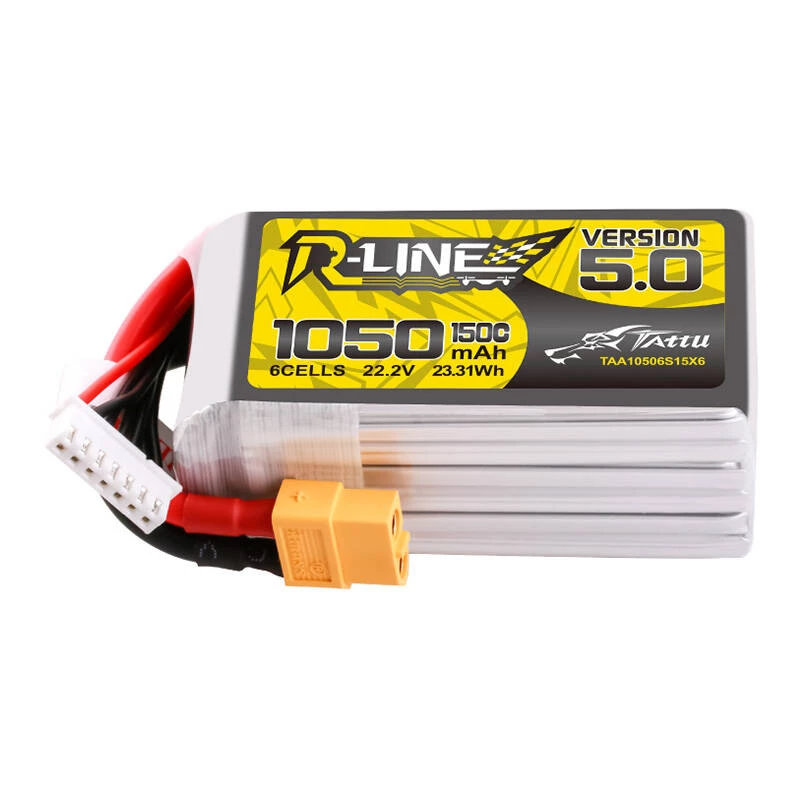

Batterij Tattu R-Line 5.0 1050 mAh 22,2 V meerkleurig

The Tattu R-Line 5.0 1050 mAh 22.2 V Multicolour is a high-performance LiPo battery developed for racing and freestyle FPV drones. Part of the R-Line Version 5.0 series, this 6S (22.2 V) pack delivers a compact combination of capacity and voltage suitable for 3–5 inch race builds and lightweight freestyle frames. Its reduced weight and compact dimensions (38 mm x 76 mm x 33 mm) allow easy integration into tight frames while providing stable power for aggressive flight profiles.

Advantages

The battery uses lithium polymer (LiPo) technology and features Tattu's Al Boehmite enhancement from the R-Line Version 5.0 series for improved power consistency and thermal performance. With a nominal capacity of 1050 mAh and a 22.2 V rating, the pack balances energy density and weight to extend usable flight time without compromising responsiveness. The compact size and 0.186 kg weight simplify mounting and centre-of-gravity adjustments in small to medium FPV drones.

Suitable for

• 3–5 inch FPV racing drones
• Freestyle quadcopters requiring compact high-voltage packs
• Lightweight long-throttle flight profiles and competitive racing setups

Key specifications

• Brand: Tattu
• Series: R-Line Version 5.0
• Capacity: 1050 mAh
• Voltage: 22.2 V (6S)
• Battery technology: Lithium Polymer (LiPo)
• Dimensions (W×D×H): 38 × 76 × 33 mm
• Weight: 0.186 kg
• MPN: TAA10506S15X6
• EAN: 6928493310892

How to use

Install the battery in your drone according to the manufacturer's recommended orientation and secure it using straps or a mounting system that prevents movement during flight. Connect the battery to the vehicle's power harness using compatible connectors and verify polarity before powering the system. Charge the pack only with a charger suitable for LiPo chemistry and the 6S voltage, following charge current limits recommended for the cell capacity.

Recommendations

For safe operation and optimal lifespan, store the battery at a 3.8–3.85 V per cell storage voltage when not in use, avoid deep discharges below 3.3 V per cell, and inspect the pack for any swelling or damage before each flight. Use chargers with balance charging capability and follow all LiPo safety procedures during charging, storage, and transport.
