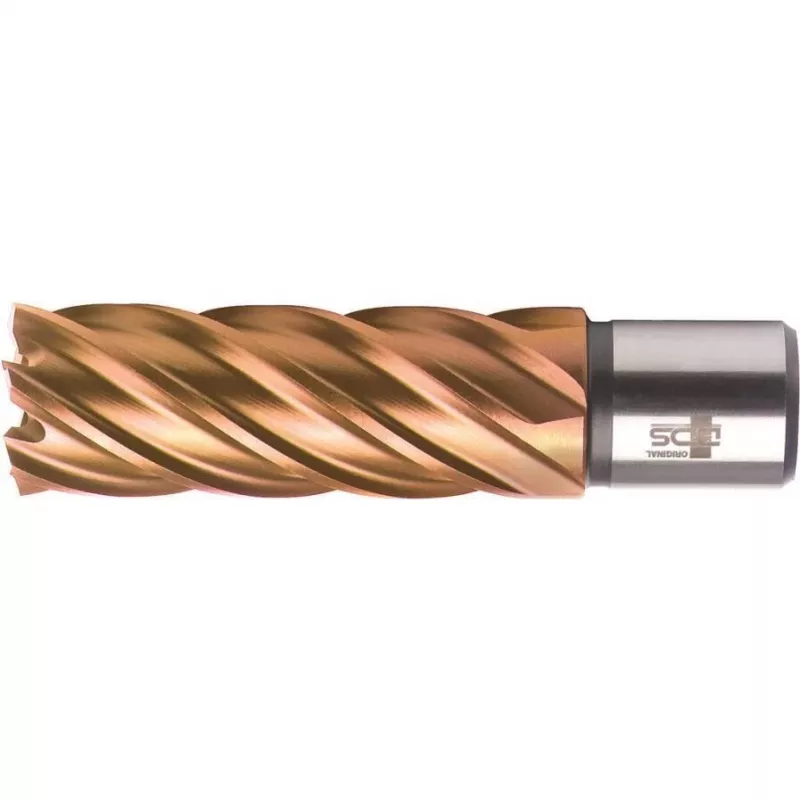

BDS HSSVarioPLUS 30 mm kernboor met Weldon-schacht, 55 mm snijdiepte KBL-VP030

Annular cutter for precise 30 mm holes in steel and stainless steel, featuring multi-cut geometry for smooth drilling and efficient chip removal. The HSSVarioPLUS series from BDS delivers high performance and long tool life in demanding metalworking applications.

Advantages

High-speed steel construction ensures durability and heat resistance. The Weldon shank with two flats provides secure clamping and torque transmission in magnetic core drilling machines. Multi-cut geometry reduces cutting forces and improves hole quality. Bright finish resists corrosion and facilitates chip flow. Re-sharpenable design extends service life and lowers cost per hole.

Suitable for

• Steel plates and profiles
• Stainless steel workpieces
• Non-ferrous metals such as aluminium and copper
• Magnetic core drilling machines
• Industrial fabrication and maintenance

Key specifications

• Cutting diameter: 30.0 mm
• Cutting depth: 55 mm
• Shank type: Weldon, 19 mm (3/4 inch)
• Material: High-speed steel (HSS)
• Packaging unit: 1 piece

Recommendations

Use with external coolant for optimal performance and tool life. Ensure the machine spindle is compatible with Weldon shank tooling. Resharpen only with appropriate grinding equipment to maintain cutting geometry.
