Bedieningspaneel jung KNX-Smart Panel 203 mm SP 0081 U (SP0081U)

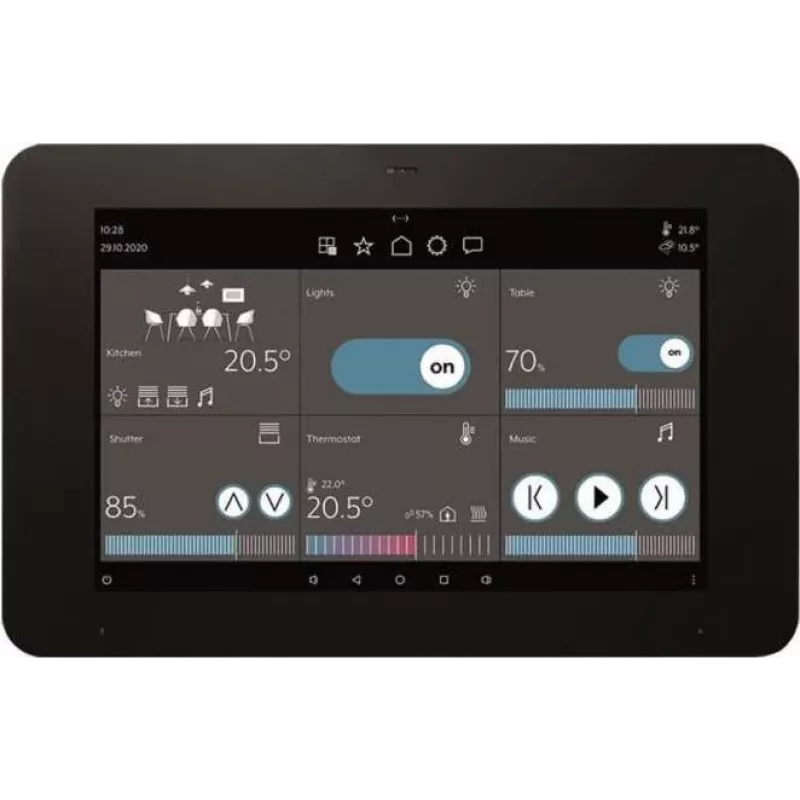

jung KNX-Smart Panel 203 mm SP 0081 U is a wall-mountable KNX control panel with a 203 mm form factor designed for centralized operation of building automation functions. The panel provides a user interface for controlling KNX devices and scenes, enabling tactile and visual interaction with lighting, shading, climate control and other KNX-integrated systems in residential and commercial installations.

Advantages

The device offers a standardized KNX interface and a compact 203 mm format that simplifies installation into common mounting frames. Its design supports clear device and scene control, reducing the need for multiple separate controls. Integration with KNX systems allows consistent behavior across lighting, shading and HVAC components and supports centralized management for building automation tasks.

Suitable for

Key specifications

How to use

Mount the panel in a suitable wall frame according to installation guidelines and connect it to the KNX bus using trained personnel. After physical installation, integrate the panel into the KNX project with ETS or compatible configuration tools to assign group addresses and map functions such as lighting scenes, blind control and HVAC parameters. Once configured, use the panel’s interface to select scenes, adjust brightness or shading levels and send commands to other KNX devices.

Recommendations

Install and commission the panel with qualified KNX installers. Use ETS or compatible software for reliable addressing and function mapping. For optimum operation, place the panel at convenient user height and within range of the KNX bus topology; ensure power and bus wiring meet KNX installation standards.
