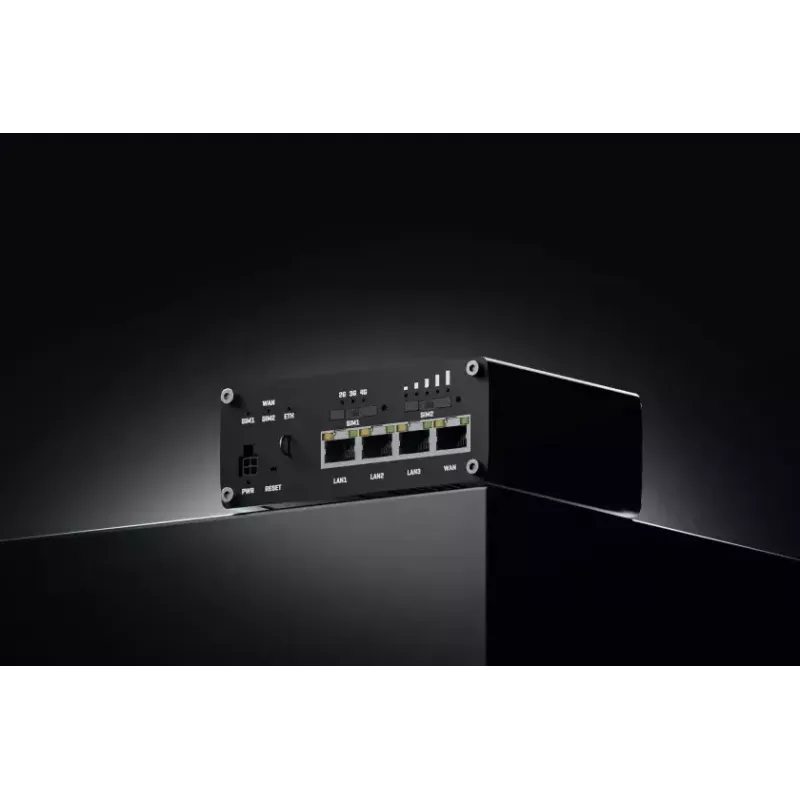

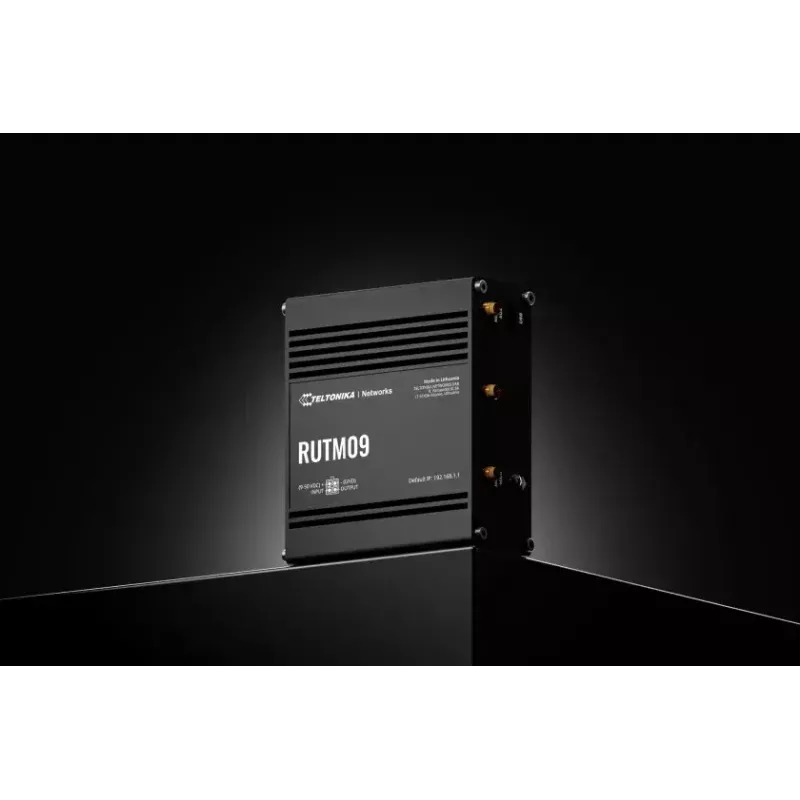

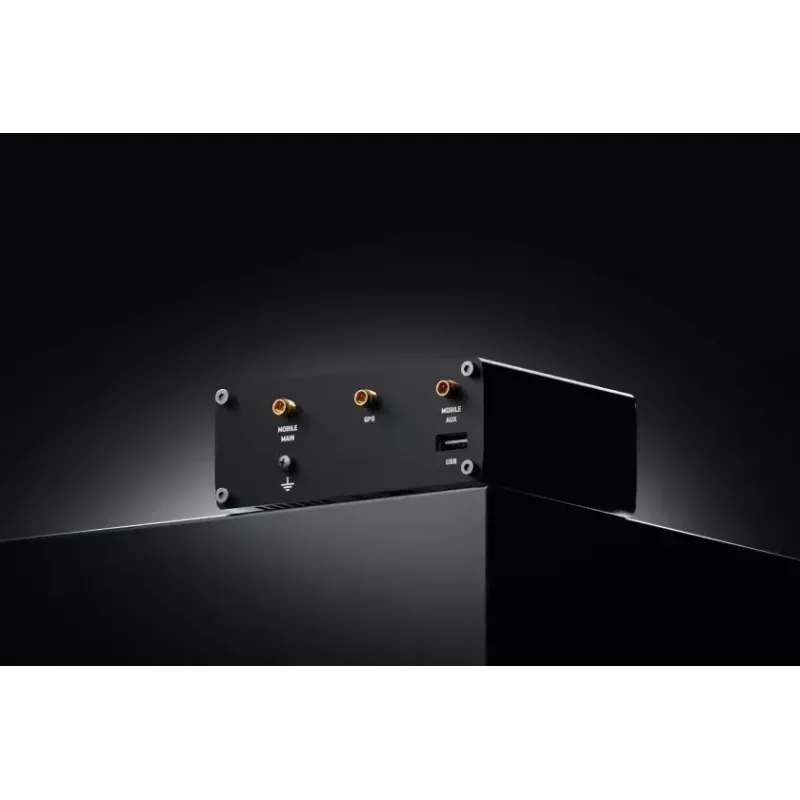

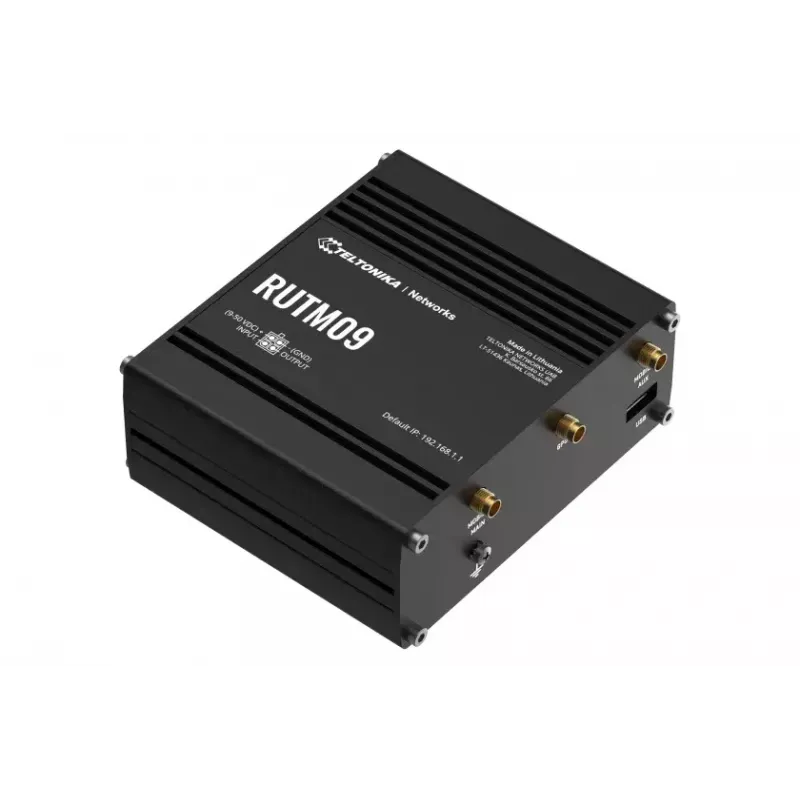

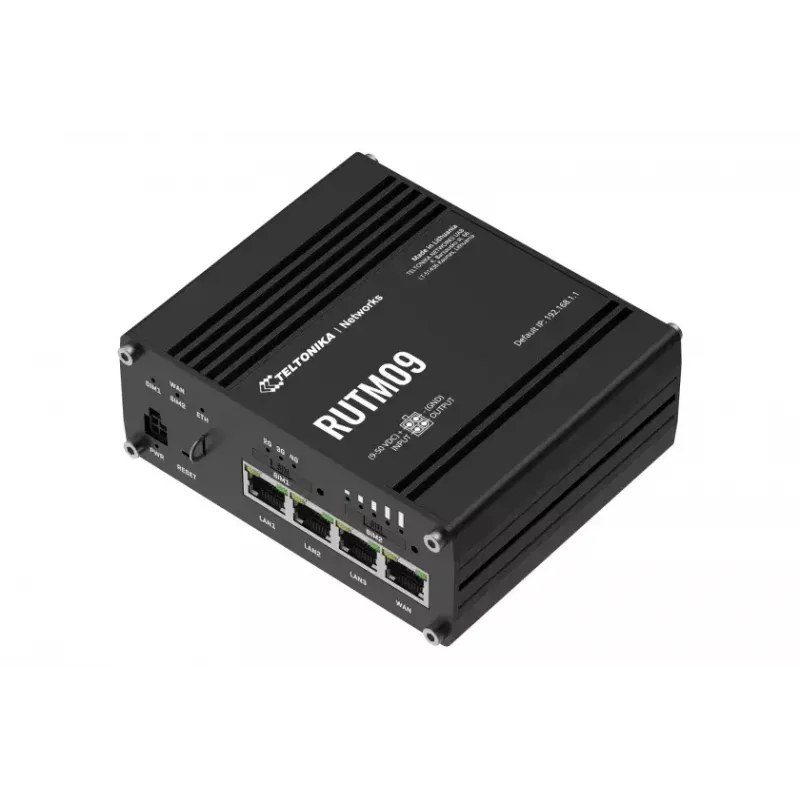

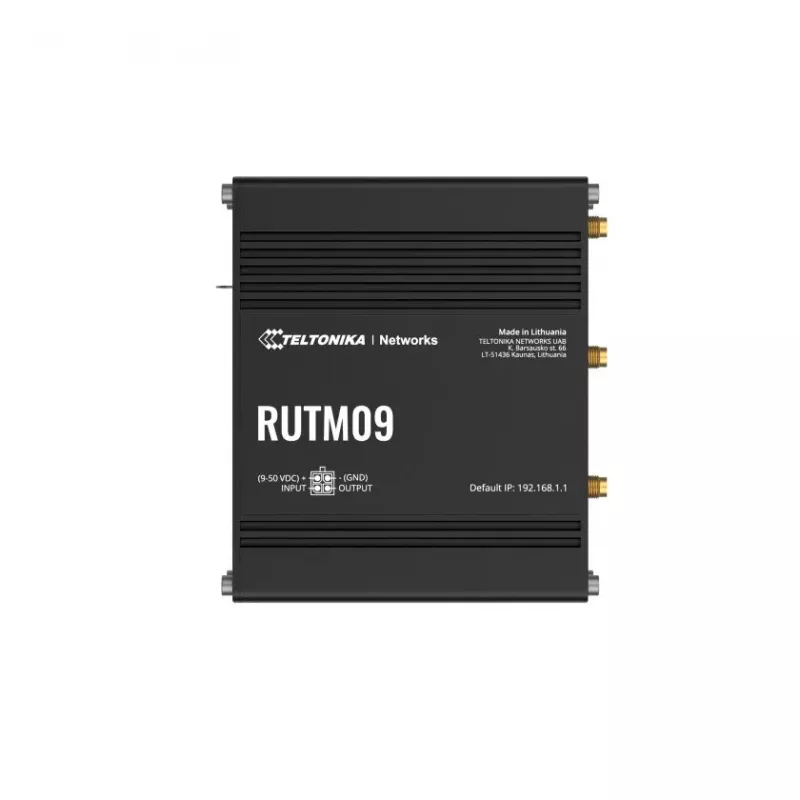

Bedrade router Teltonika RUTM09 gigabit Ethernet 4G LTE

The Teltonika RUTM09 is a wired 4G LTE router with Gigabit Ethernet designed for applications that require high cellular speeds and reliable connectivity. It features Cat 6 modem capabilities with support for carrier aggregation and dual SIM functionality to maintain network availability and deliver LTE speeds up to 300 Mbps. The router includes four Gigabit RJ45 ports, USB, GNSS for precise location and time synchronisation, and supports VLAN tagging for segmented networks.

Advantages

The RUTM09 provides high-throughput 4G LTE connectivity with failover between SIMs to ensure continuous service. Its Cat 6 implementation enables up to 300 Mbps download speeds and carrier aggregation for better cellular performance. Four Gigabit Ethernet ports and USB expand LAN connectivity, while GNSS offers location services and accurate time synchronisation. Support for tag/port-based VLANs allows traffic separation for improved network management.

Suitable for

• Mobile applications requiring continuous internet access
• Remote monitoring and tracking solutions using GNSS
• Small office or branch networks needing reliable WAN failover
• Environments that require segmented networks via VLAN

Key specifications

• Mobile network generation: 4G LTE (Cat 6), up to 300 Mbps
• Dual SIM support with failover and carrier aggregation

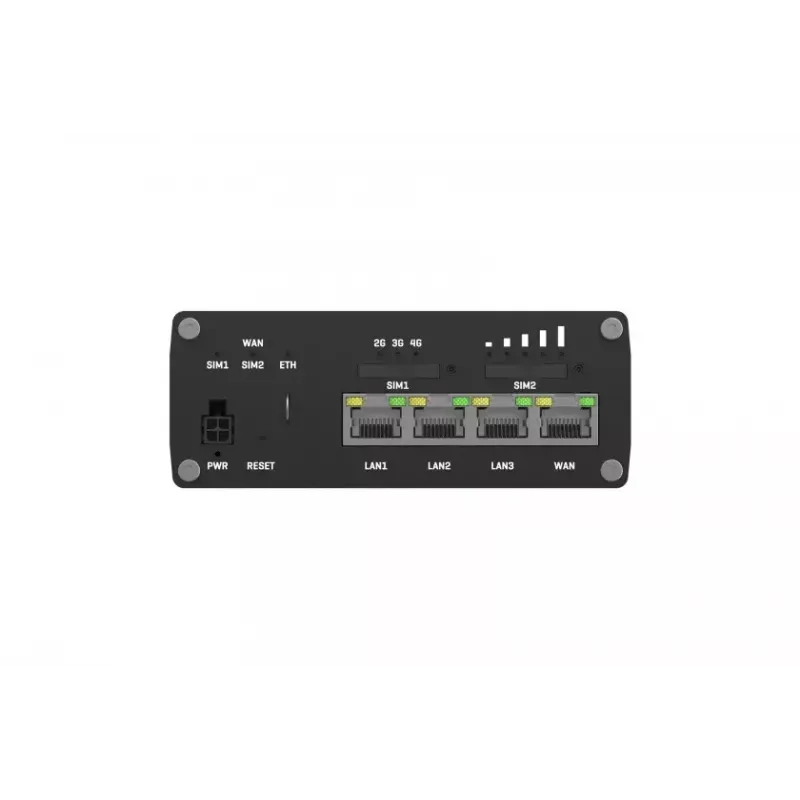

• Interfaces: 4 x Gigabit RJ45 ports, USB

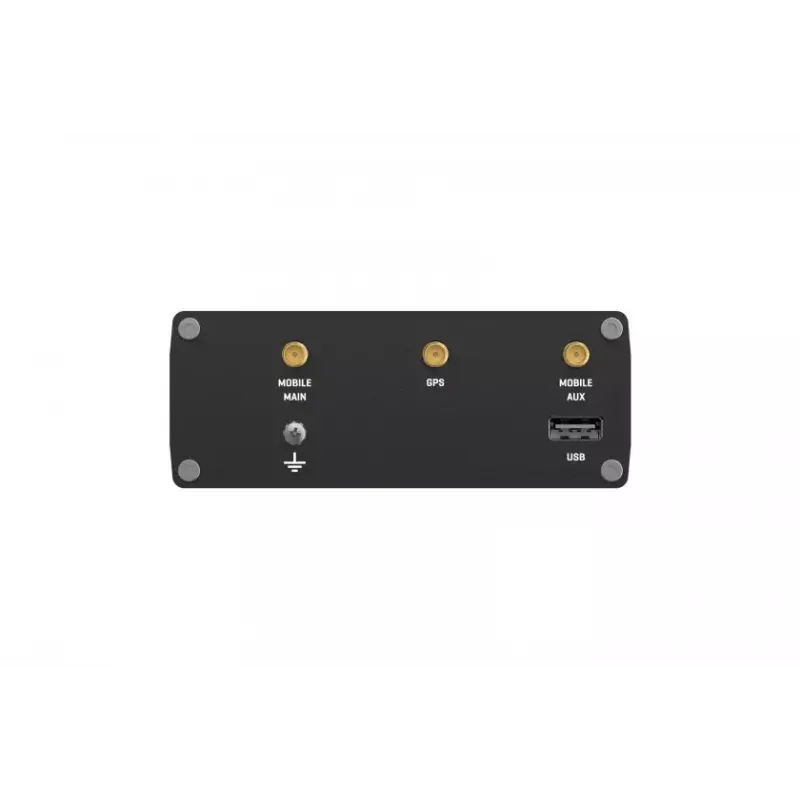

• GNSS: location services and time synchronisation
• VLAN: up to 128 tag/port-based VLANs
• Colour: Black; Weight: 0.457 kg

How to use

Install the RUTM09 on a stable surface and connect the WAN and LAN devices to the Gigabit RJ45 ports. Insert one or two active SIM cards according to the deployment needs and configure APN settings in the web interface. Use the web-based administration to set up failover priorities, carrier aggregation options, and VLAN tagging. Enable GNSS if location or time synchronisation is required by your application.

Recommendations

For optimal performance, place the router where it can receive a strong cellular signal and ensure antennas are positioned correctly. Configure SIM failover and VLANs during initial setup to maintain uninterrupted service and secure network segmentation.
