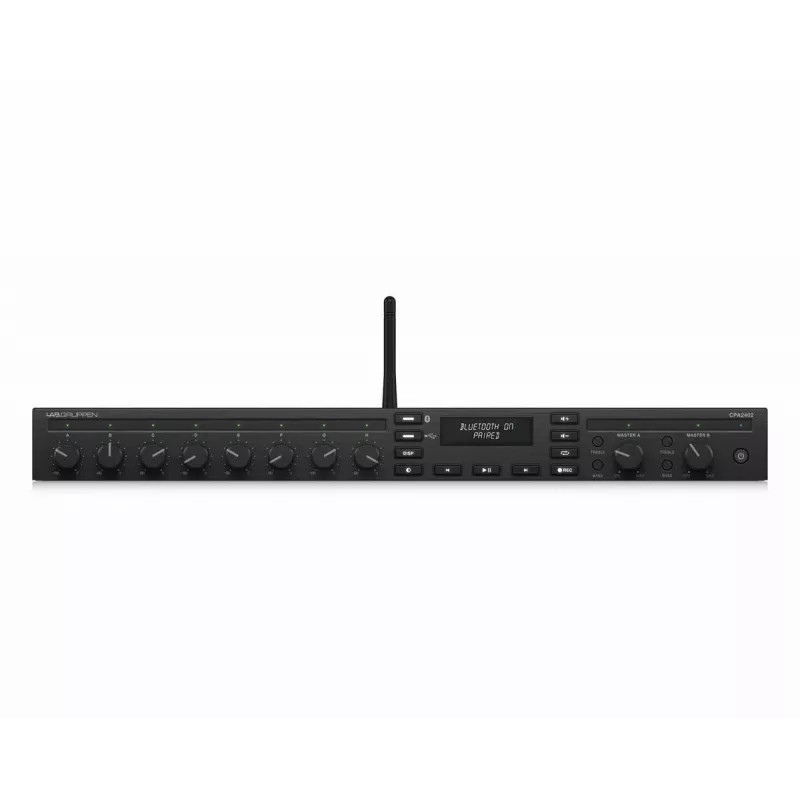

BEHRINGER versterker Lab Gruppen CMA1202 2x120W 8Ohm/100V

The BEHRINGER Amplifier Lab Gruppen CMA1202 is a professional 2-channel power amplifier delivering 2x120W at 8 Ohms or 100V constant voltage. Designed for fixed installations and live sound, it offers reliable Class D amplification with fanless convection cooling for silent operation.

Advantages

Compact 1U rack size saves space; fanless design ensures no noise in quiet environments; versatile output modes (low impedance 4/8 Ohm and constant voltage 70/100V) for various speaker systems; comprehensive input options including balanced Euroblock and XLR mic inputs with switchable +24V phantom power.

Suitable for

• Commercial sound systems (restaurants, retail, offices)
• House of worship and educational facilities
• Background music and paging systems
• Small to medium live sound reinforcement

Key specifications

• Output Power: 2 x 120 W (8 Ohm) / 2 x 120 W (100V)
• Amplifier Class: Class D
• Frequency Response: 20 Hz - 20 kHz (+0/-3 dB)
• THD+N: < 0.3%
• Signal-to-Noise Ratio: > 90 dB (A-weighted)
• Inputs: 2 x Euroblock (mic/line), 2 x XLR (mic), 2 x RCA (line), 1 x 3.5mm TRS (aux)
• Outputs: 2 x Euroblock (speaker)
• Phantom Power: +24V (switchable)
• Priority Input: Mic 1
• Rack Size: 1U
• Power Supply: 100-240 VAC, 50/60 Hz
• Cooling: Convection (fanless)
• Protection: Thermal, over-current, DC, short circuit

Recommendations

For optimal performance, use with 8 Ohm speakers or 100V line speakers. Ensure proper ventilation despite fanless design. Ideal for distributed audio systems requiring reliable, high-quality amplification.
