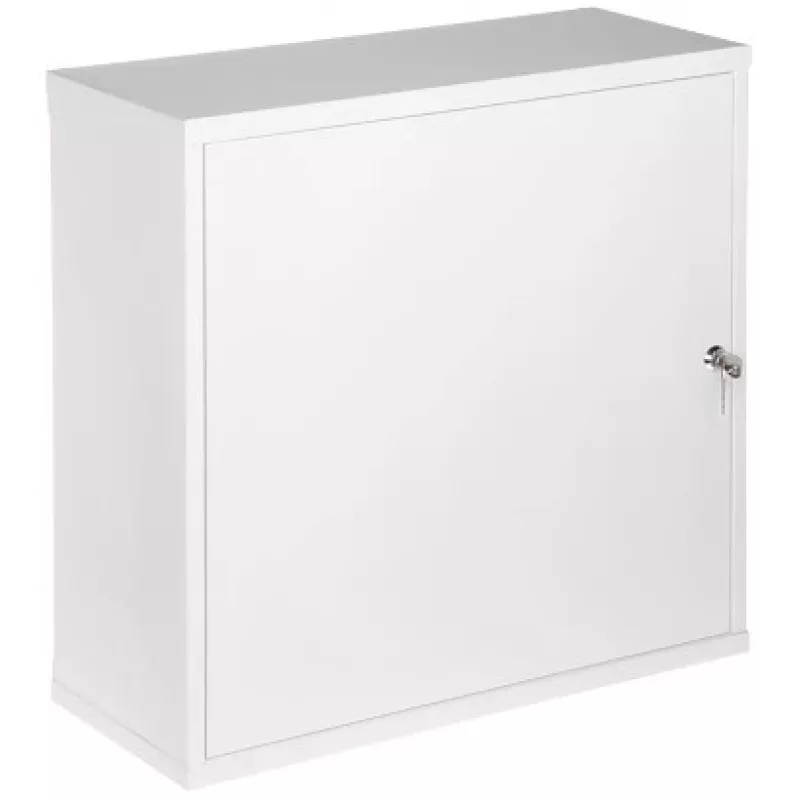

Behuizing STALFLEX MB-TPR7-MP-W 500x500x200 mm

The STALFLEX MB-TPR7-MP-W enclosure is a robust metal enclosure designed for industrial and commercial applications. With dimensions of 500x500x200 mm, it provides ample space for housing electrical and electronic components. Made from steel sheet with a powder-coated finish in RAL 7035 light grey, this enclosure offers IP65 protection against dust and water jets, making it suitable for both indoor and outdoor use.

Advantages

This enclosure features a single solid door with a quarter-turn lock for secure access. The door opens 120° for easy installation and maintenance. It includes a galvanized steel mounting plate and a bottom gland plate for cable entry. The material thickness of 1.2 mm ensures durability, while the powder-coated surface provides corrosion and UV resistance.

Suitable for

• Industrial control panels
• Electrical distribution boxes
• Outdoor equipment housing
• Telecommunication enclosures

Key specifications

• Enclosure Type: Metal Enclosure
• Material: Steel Sheet
• Ingress Protection: IP65
• Mounting: Surface-mounted
• External Dimensions (H x W x D): 500 x 500 x 200 mm
• Colour: RAL 7035 (Light Grey)
• Door: Single, Solid Door
• Lock: Quarter-turn lock with key (1 lock)
• Gland Plate: Yes, bottom
• Mounting Plate: Yes, Galvanized Steel
• Door Opening Angle: 120°
• Material Thickness: 1.2 mm
• Surface Finish: Powder Coated
• Application Environment: Indoor/Outdoor
• Corrosion Resistance: Yes
• UV Resistance: Yes
• Standards Compliance: EN 62208

Recommendations

For optimal installation, ensure proper cable gland selection and consider additional accessories such as mounting brackets or internal panels. This enclosure is ideal for protecting sensitive equipment in harsh environments.
