BEMKO IP68 3-polige kabelverbinder, snelansluiting, zwart

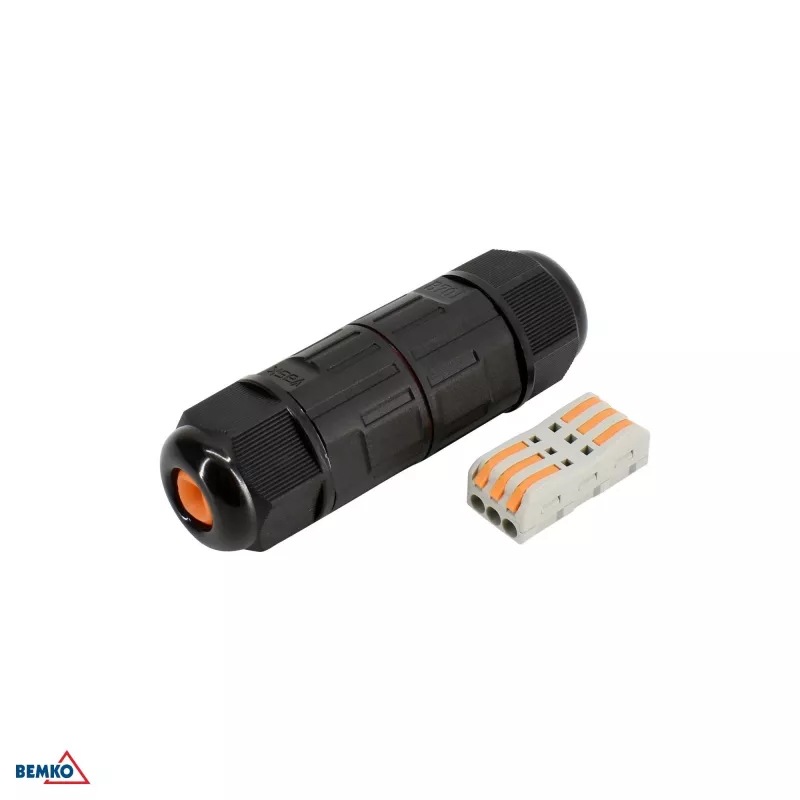

The BEMKO E08-ZK03-IP68-QC is a high-quality hermetic cable connector designed for reliable outdoor and industrial applications. With an IP68 protection rating, it offers excellent resistance to dust and water ingress, making it ideal for harsh environments. This 3-pole connector supports quick and secure screw terminal connections for cables with outer diameters from 4 to 8 mm and wire cross-sections from 0.5 to 2.5 mm².

Advantages

IP68 rated for dust and water protection; quick-connect screw terminals for easy installation; durable PA66 housing with silicone rubber seal; wide operating temperature range from -40°C to +105°C; CE and RoHS certified.

Suitable for

• Outdoor lighting and power connections
• Industrial automation and control systems
• Marine and agricultural equipment
• Garden and landscape installations

Key specifications

• Protection Rating: IP68
• Number of Poles: 3
• Rated Voltage: 450V AC
• Rated Current: 24A
• Cable Outer Diameter: 4 - 8 mm
• Wire Cross-Section: 0.5 - 2.5 mm²
• Connector Mechanism: Quick Connect (Screw Terminal)
• Housing Material: PA66 (Nylon)
• Seal Material: Silicone Rubber
• Operating Temperature: -40°C to +105°C
• Color: Black

Recommendations

For best performance, ensure cables are properly stripped and inserted fully into the terminal before tightening. Suitable for use with flexible and solid conductors.
