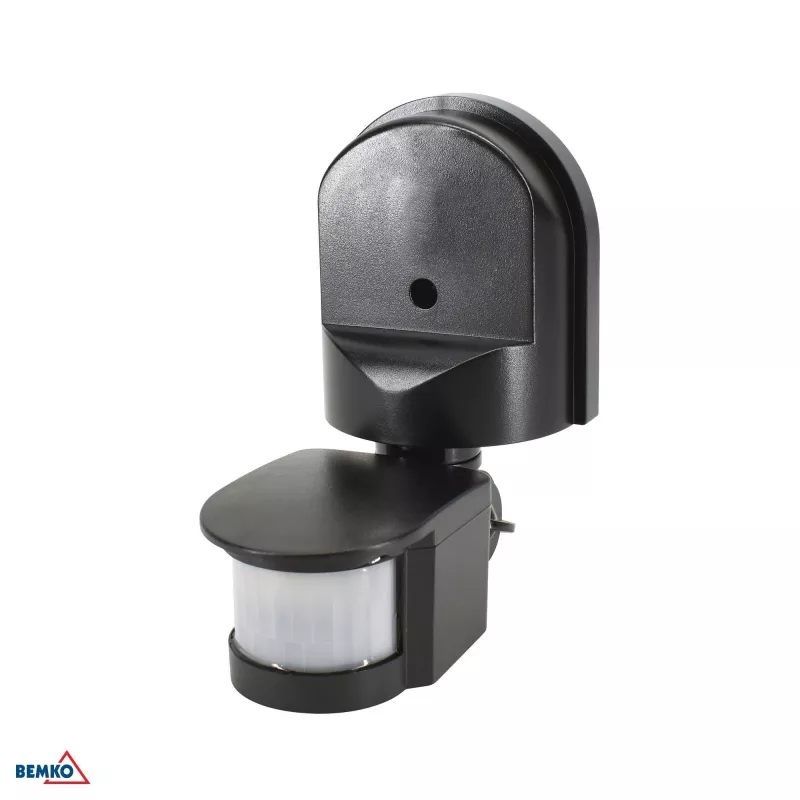

BEMKO PIR-bewegingsmelder 1200W 180° zwart

The BEMKO B50-SES10BL is a high-performance PIR motion sensor designed for reliable automatic lighting control in residential and commercial environments. With a detection angle of 180° and a maximum load capacity of 1200W for incandescent lamps, this sensor ensures efficient energy management and enhanced security. Its sleek black design blends seamlessly with modern interiors.

Advantages

This PIR sensor offers a wide detection range of up to 12 meters and adjustable time delay (10 seconds to 7 minutes) and light sensitivity (3-2000 LUX), providing flexible customization for various applications. The IP44 rating makes it suitable for outdoor use, while the low standby power consumption (<0.5W) contributes to energy savings.

Suitable for

• Automatic lighting control in hallways, staircases, garages, and gardens
• Security lighting in commercial and residential buildings
• Energy-saving applications where lights are only needed when motion is detected

Key specifications

• Sensor Technology: PIR (Passive Infrared)
• Detection Angle: 180°
• Max Load Power (Incandescent): 1200W
• Max Load Power (LED/Fluorescent): 300W
• Operating Voltage: 220-240V AC, 50/60 Hz
• Detection Range: Up to 12 meters
• Time Delay Adjustment: 10 seconds to 7 minutes
• Light Sensitivity (LUX) Adjustment: 3-2000 LUX
• Installation Type: Wall-mounted / Surface-mounted
• Color: Black
• IP Rating: IP44
• Operating Temperature: -20°C to +40°C
• Material: ABS Plastic
• Certifications: CE, RoHS

Recommendations

For optimal performance, mount the sensor at a height of 1.8m to 2.5m and avoid direct exposure to heat sources or air conditioning vents. Ensure the sensor is not obstructed by walls or large objects to maintain full 180° coverage.
