BEMKO PIR-bewegingsmelder 1200W 360° wit

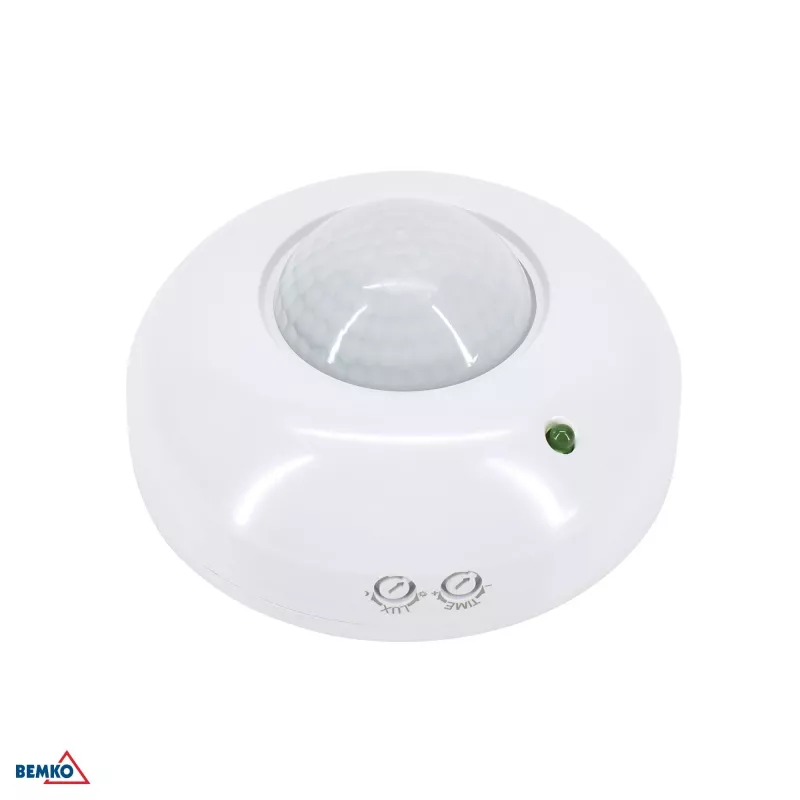

The BEMKO B50-SES05WH is a high-performance PIR motion sensor designed for automatic lighting control in indoor environments. With a 360° detection angle and a maximum load of 1200W for incandescent lamps, this ceiling-mounted sensor is ideal for offices, corridors, stairwells, and warehouses. It features adjustable time delay (10s to 7min) and light sensitivity (3-2000 LUX), ensuring energy-efficient operation.

Advantages

Energy-saving automatic lighting control; easy ceiling installation; adjustable settings for customized use; reliable PIR technology with 6m detection range.

Suitable for

• Indoor areas requiring automatic lighting: corridors, stairwells, offices, meeting rooms, warehouses, and storage areas.
• Replacing traditional switches for energy efficiency.

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 360°
• Max Load (Incandescent): 1200W
• Max Load (LED/Fluorescent): 300W
• Operating Voltage: 220-240V AC, 50/60 Hz
• Detection Distance: 6m (max)
• Installation Height: 2.2 - 4m
• Light Sensitivity: 3-2000 LUX (adjustable)
• Time Delay: 10s - 7min (adjustable)
• IP Rating: IP20
• Installation Type: Ceiling Mount
• Colour: White
• Material: ABS Plastic
• Standby Power Consumption: 0.1W
• Operating Temperature: -20°C to +40°C
• Operating Humidity: <93% RH

Recommendations

For optimal performance, install at the recommended height of 2.2-4m and ensure the sensor has a clear view of the area. Avoid placing near heat sources or air conditioning vents.
