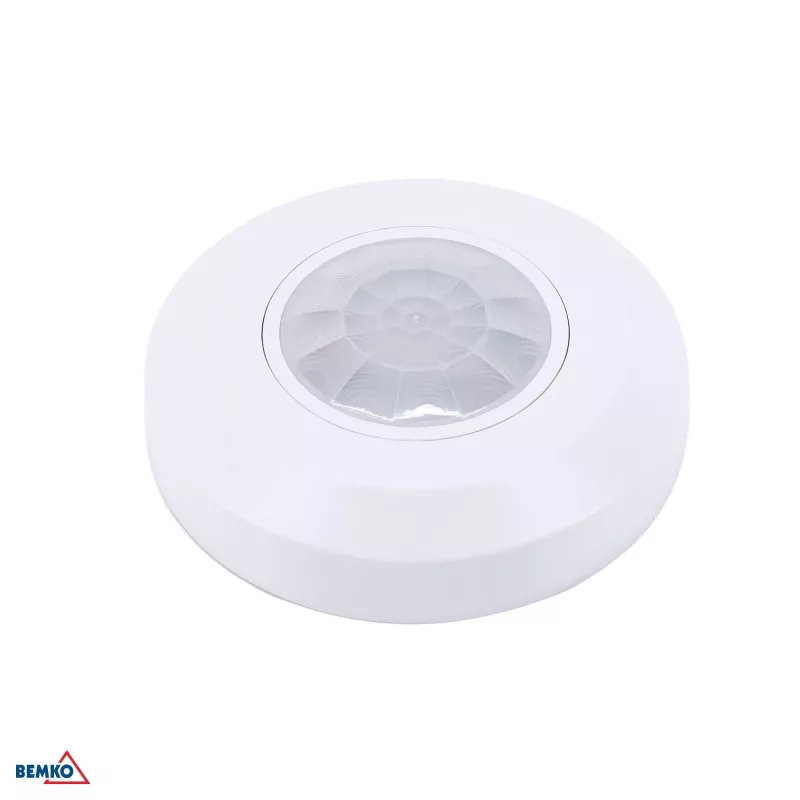

BEMKO PIR-bewegingsmelder 200W/400W 360° wit

The BEMKO B50-SES05WH-B is a high-quality PIR motion sensor designed for reliable automatic lighting control. With a 360° detection angle and a range of up to 6 meters, it is ideal for indoor ceiling-mounted applications in hallways, staircases, offices, and storage rooms. The sensor supports both incandescent loads up to 400W and LED/fluorescent loads up to 200W, making it versatile for various lighting types.

Advantages

Energy-saving automatic control with adjustable time delay and light sensitivity. Easy ceiling installation with a sleek white design that blends into any environment. Low standby power consumption of less than 0.5W ensures minimal energy waste.

Suitable for

• Indoor areas requiring automatic lighting: corridors, stairwells, basements, garages, offices, and warehouses.
• Replacing traditional switches for convenience and energy efficiency.
• Integration into home or building automation systems.

Key specifications

• Sensor Type: PIR (Passive Infrared)
• Detection Angle: 360°
• Max Detection Distance: 6 meters (at 24°C)
• Recommended Installation Height: 2.2 - 4 meters
• Power Supply: 220-240V AC, 50/60Hz
• Max Load (Incandescent): 400W
• Max Load (LED/Fluorescent): 200W
• Time Delay Adjustment: 10s ± 3s to 7min ± 2min
• Light Sensitivity Adjustment: <3-2000 LUX
• IP Rating: IP20
• Operating Temperature: -20°C to +40°C
• Standby Power Consumption: <0.5W
• Colour: White
• Mounting Type: Ceiling Mount
• Material: ABS Plastic

Recommendations

For optimal performance, install at the recommended height and avoid placing near heat sources or air vents. Ensure the sensor has a clear view of the detection area.
